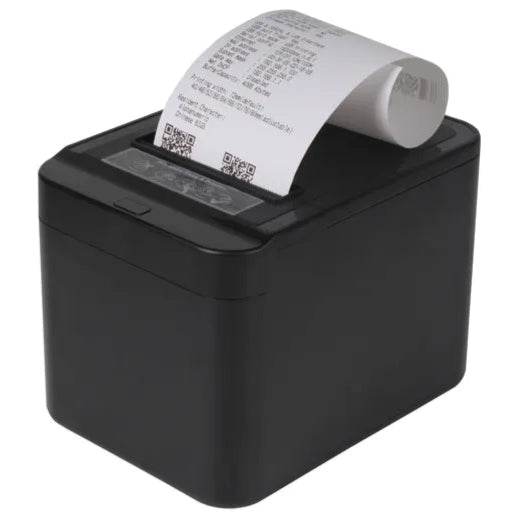

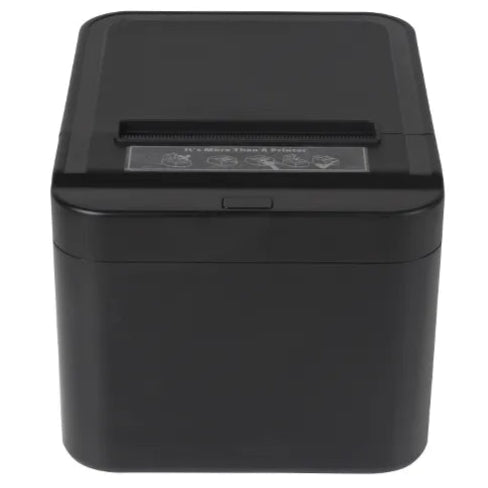

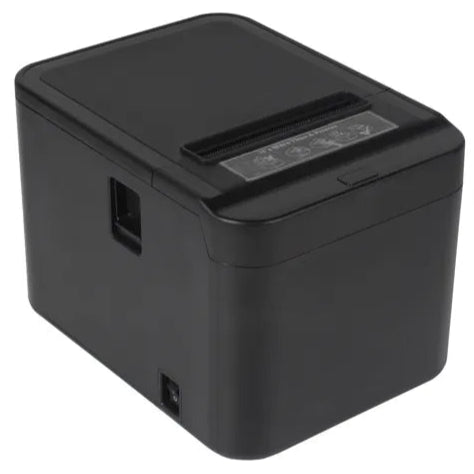

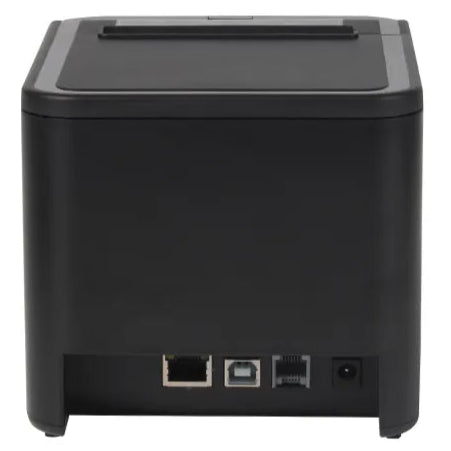

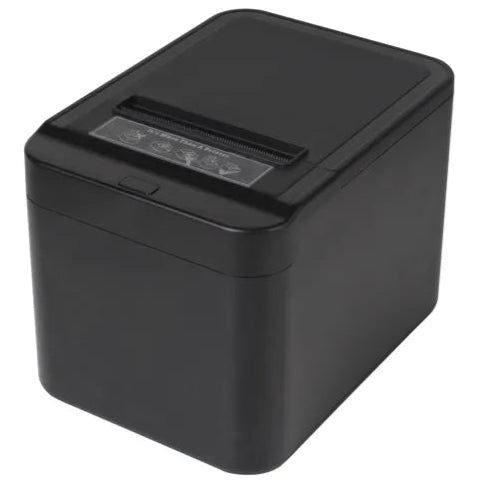

ZY-Q822 80mm Thermal POS Printer
ZYWELL 80mm thermal receipt printer, equipped with auto cutter, provides stable performance and ease of use. It is widely adopted in various sectors including banking, telecommunications, retail and healthcare, and supports Windows, Android and iOS software via ESC/POS commands.
|
model |
|
Z-Q822 |
|||
|
Printing |
Printing method |
Direct thermal |
|||
|
Print speed |
160-200 mm/s |
||||
|
accuracy |
576 points/line |
||||
|
Print view |
72 mm |
||||
|
Interface |
U/U+L/U+BT/U+Wi-Fi |
||||
|
memory |
Input buffer |
128 KB |
|||
|
flash |
256 KB |
||||
|
Fonts |
Line A |
12x24 |
|||
|
Line B |
9x17 |
||||
|
Chinese |
GB18030, BIG5 24x24 dots |
||||
| Japanese/Korean | My choice | ||||
|
User defined |
Supports |
||||
|
Barcode |
1d |
UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)/CODE39/ITF/CODABAR/CODE93/CODE128 |
|||
| 2D | QR Code | ||||
|
a statement |
Sensors |
Out of paper, cover open, cutter jam, paper jam, black marks detected |
|||
|
power supply |
entrance |
AC 100V-240V 50/60Hz |
|||
|
Output |
DC 24V/1.25A |
||||
|
paper |
Paper type |
Thermal receipt paper |
|||
|
Show paper |
58mm or 80mm |
||||
|
Paper thickness |
0.06 ~ 0.08 mm |
||||
|
Roll of light |
Top. 0.83 mm |
||||
|
Download Paper |
Easy paper loading |
||||
|
paper cutting |
automatic cutter |
||||
|
Physical characteristics |
Working status |
0°C~45°C, 10%~80%RH |
|||
|
Storage status |
-10℃-60℃, 10%~90% RH |
||||
|
Dimensions |
173(D) x 128(W) x 127(H) mm |
||||
|
net weight |
0.8 kg |
Total weight |
1.45 kg |
||
|
credibility |
Print head |
100 km |
|||
|
cutter |
1.0 million |
||||
|
Supplements |
|
Data cable, power adapter, power cord, paper roll, manual, roll, paper separator (option) |
|||
|
Packing |
Single box |
Dimension 230x155x144mm (LXWXH) |
1 unit/carton |
||
|
Main carton |
Dimension 480x310x490mm (LXWXH) |
12 units/carton |
|||
|
Operating System |
Matching |
Esc/Points of Sale |
|||
|
driver |
Windows XP/Vista/Win7/Win8/Win10/Win 2000/Win CE/OPOS/JPOS |
||||
|
SDK |
Android, iOS |
||||
