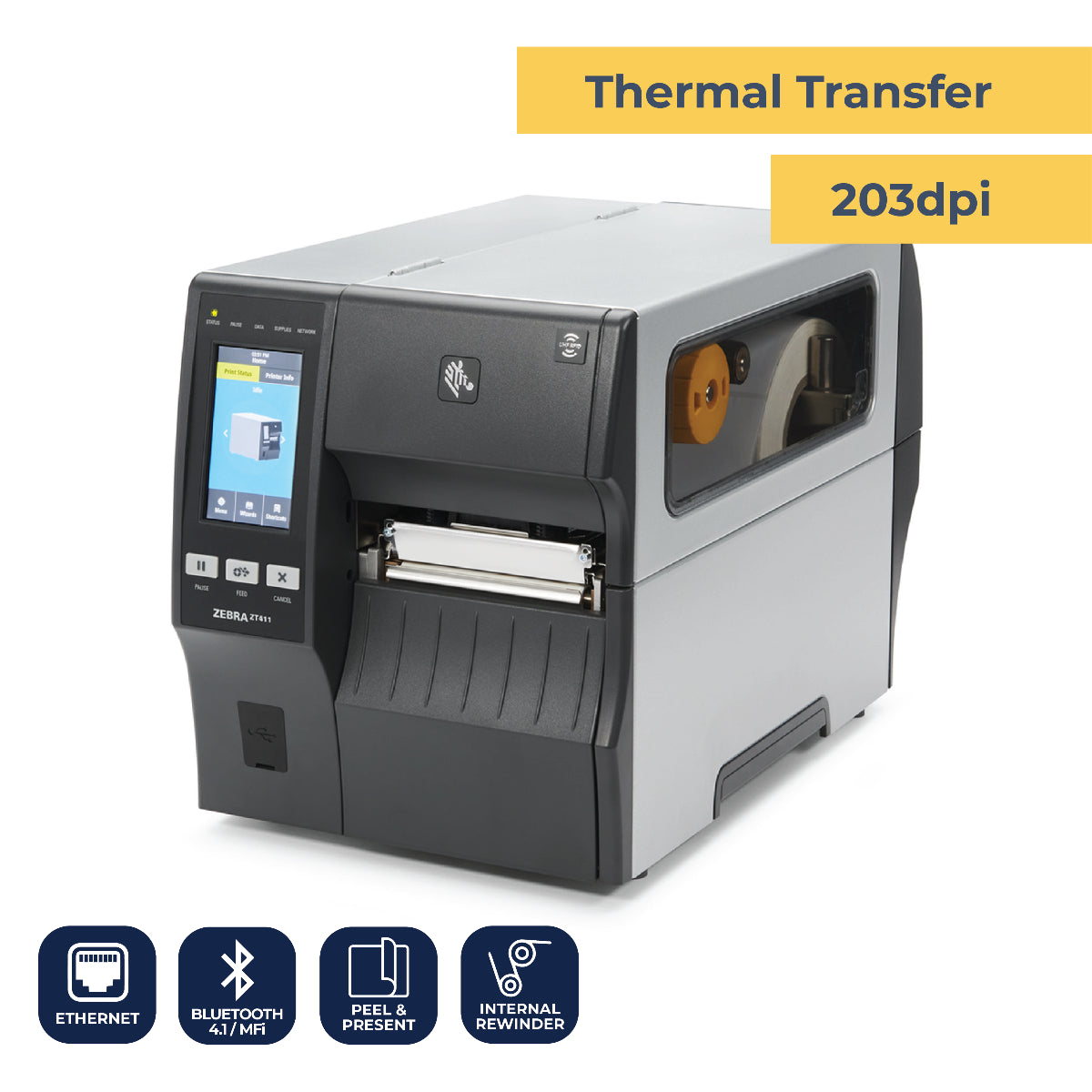

Zebra Industrial Barcode Label Printer ZT411

Printing:

• Thermal transfer and direct thermal printing

• Thin film printhead with E3™ Element Energy™ Equalizer for superior print quality

• 203 dpi print resolution (8 dots / mm)

• Print speed per second up to 14" (356 mm / second) Communication

• USB 2.0, high speed

• RS-232 Serial (RS-232C with DB9F connector; Configurable baud rate (2400 – 115,200kB), parity, and data bits. Stop bits at 1 or 2; Software (XON/XOFF), hardware (DTR/DSR or RTS/CTS) communication handshake protocols)

• 10/100 Ethernet: Supports networks internally integrated option that enables the use of Webview and Alert features

• Option: Bluetooth® 4.1 (including Apple®)

• Dual USB Host

Media Support:

• Dual media sensors — transmissive and reflective

• 3” media supply hanger

• Auto calibration when printer is turned on or when printhead is closed Design

• Easy, side-loading metal print mechanism

• Tool-less printhead and platen replacement

• Metal media cover with enlarged clear viewing window

• Robust-gold user touch points indicating key adjustments

• Bi-fold media door decreasing overall operating space by 35% Firmware

• Resident ZPL®, ZPL II® and EPL™ programming languages, selectable through software or front panel

• XML-Enabled Printing — allows XML communications for barcode label printing eliminating license fees and printer server hardware while lowering customization and programming costs

Optional Features:

Printheads/ Resolution:

• Printhead 203 dpi (8 dots / mm)

• Option: Printhead 300 dpi (12 dots / mm)

• Option: Printhead 600 dpi (24 dots / mm)

Communication:

• Parallel (Bi-directional interface)

• Option: Wireless dual radio with 802.11ac Wi-Fi and Bluetooth 4.1

• 10/100 Ethernet

• Applicator interface

Media Handling:

• Rewind — Internally rewinds a full roll of printed labels on 3" core, or peels and rewinds liner (factory installed only)

• Peel — Choice of two options: − Front mount, passive peel option − Liner take-up option — Additional full-roll liner take-up spindle accommodates standard printer base

• Cutter — Front-mount guillotine cutter and catch tray, operates under software control cutting labels individually, or in strips (not compatible with rewind and peel options)

• 1" I.D. Core media supply hanger

• Ink-side-in ribbon supply spindle

Parameter	Standard Dimensions	Metric Dimensions
Inter-label Gap	0.079" to 0.157" preferably 0.118"	2 to 4 mm preferably 3 mm
Sensing Notch (W × L)	0.25" × 0.12"	6 mm × 3 mm
Sensing Hole	0.125" diameter	3 mm diameter

Option RFID:

• Fully integrated ThingMagic® UHF EPC Gen 2 V2.0/ISO 18000-63 RFID Reader / Encoder

• Prints and encodes tags with a minimum pitch of 0.6" / 16 mm

• Adaptive Encoding Technology simplifies RFID setup and eliminates complex RFID placement guidelines

• Field-installable on-metal RFID kit available for 203 and 300 dpi

Ribbon Specifications:

• Ribbon Width: 2.00" (51 mm) to 4.33" (110mm)

• Maximum Ribbon Length: 1476' (450 m)

• Maximum Ribbon Roll Size: 450 m: 3.2" (81.3 mm) O.D. on a 1.0" (25.4 mm) I.D. core

• Ribbon Wound Ink-side Out: Ribbon wound ink-side in can be used with the optional ribbon spindle

PRODUCT WARRANTY: 1YEAR
