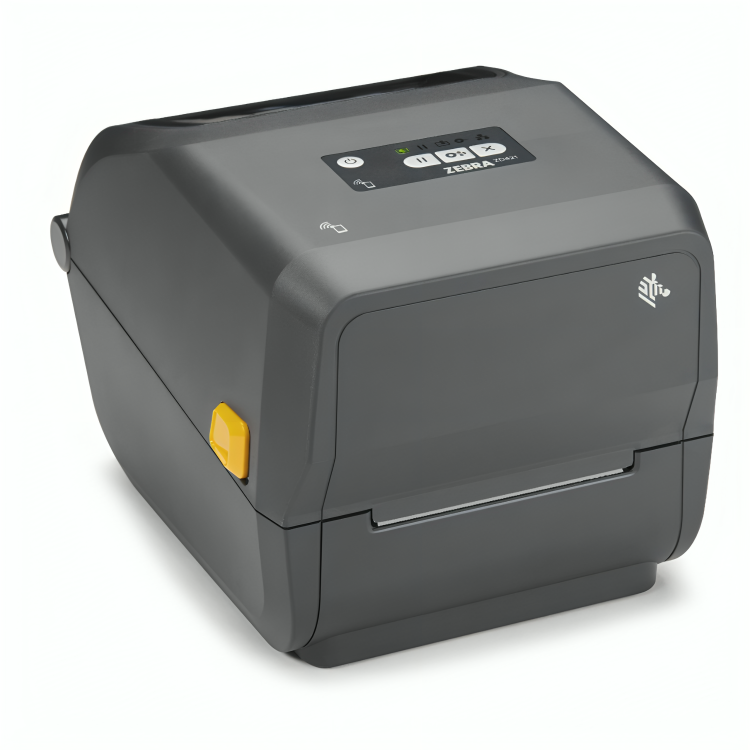

Zebra ZD-421T

Zebra ZD-421T

LE 25,000.00 EGP
LE 0.00 EGP LE 25,000.00 EGP
Sale Sold out

ZD421T Desktop Thermal Transfer Barcode Label Printer: 4-Inch Wide

SPECIFICATIONS:

Standard Features:-

• Print methods: Thermal Transfer
• ZPL and EPL programming languages
• 5 status icon, 3 button user interface
• USB 2.0, USB Host, LAN
• Printer setup mobile app for Android and iOS via BLE
(Bluetooth Low Energy 5) connection
 BLE is intended for use with Zebra printer setup mobile app only
• Real Time Clock (RTC)
• OpenACCESS™ for easy media loading
• Dual-wall frame construction
• ENERGY STAR® certified

Physical Characteristics:-

Dimension

10.0 in. L x 8.0 in. W x 7.0 in. H
254 mm L x 202 mm W x 177 mm H
Weight 5.0 lbs./2.3 kg

Printer Specifications:-

Operating System Link-OS®
Resolution 203 dpi/8 dots per mm
Memory 512 MB Flash; 256MB SDRAM
64 MB user available non-volatile memory
8 MB user available SDRAM
Maximum Print Width 4.09 in./104 mm for 203 dpi
Maximum Print Speed 6 in./152 mm per second (203 dpi)
Media Sensors Full width, moveable reflective/black mark sensor; multi-position transmissive/gap sensor
Firmware ZPL II; EPL 2; XML; ZBI; PDF Direct

Media, Ribbon and Cartridge Characteristics:-

Label Length

Maximum: 39.0 in./991 mm
Minimum: 0.25 in./6.4 mm
Media Width

0.585 in./15 mm to 4.65 in./118 mm
Media Roll Size Maximum outer diameter: 5.00 in./127 mm
Core inner diameter: 0.5 in. (12.7 mm) and 1.0 in.
(25.4 mm) standard, 1.5 in. (38.1), 2.0 in., (50.8 mm)
and 3.0 in. (76.2 mm) using optional adapters
Media Thickness 0.003 in. (0.08 mm) min.; 0.0075 in. (0.19 mm) max.
Media Types Roll-fed or fan-fold, die cut or continuous with or without black mark, tag stock, continuous receipt paper, and wristbands
Ribbon Outside Diameter 2.6 in./66 mm (300 m); 1.34 in./34 mm (74 m)
Ribbon Standard Length 243 ft. /74 m
Ribbon Ratio 1:4 ribbon to media (300 m)
1:1 ribbon to media (74 m)
Ribbon Width 4.3 in./109.2 mm
Ribbon Core I.D. 300 m ribbon 1 in./25.4 mm
74 m ribbon 0.5 in./12.7 mm

Product Warranty: 1 Year

ZD421 4-inch Desktop Printers Zebra Printer -pdf
