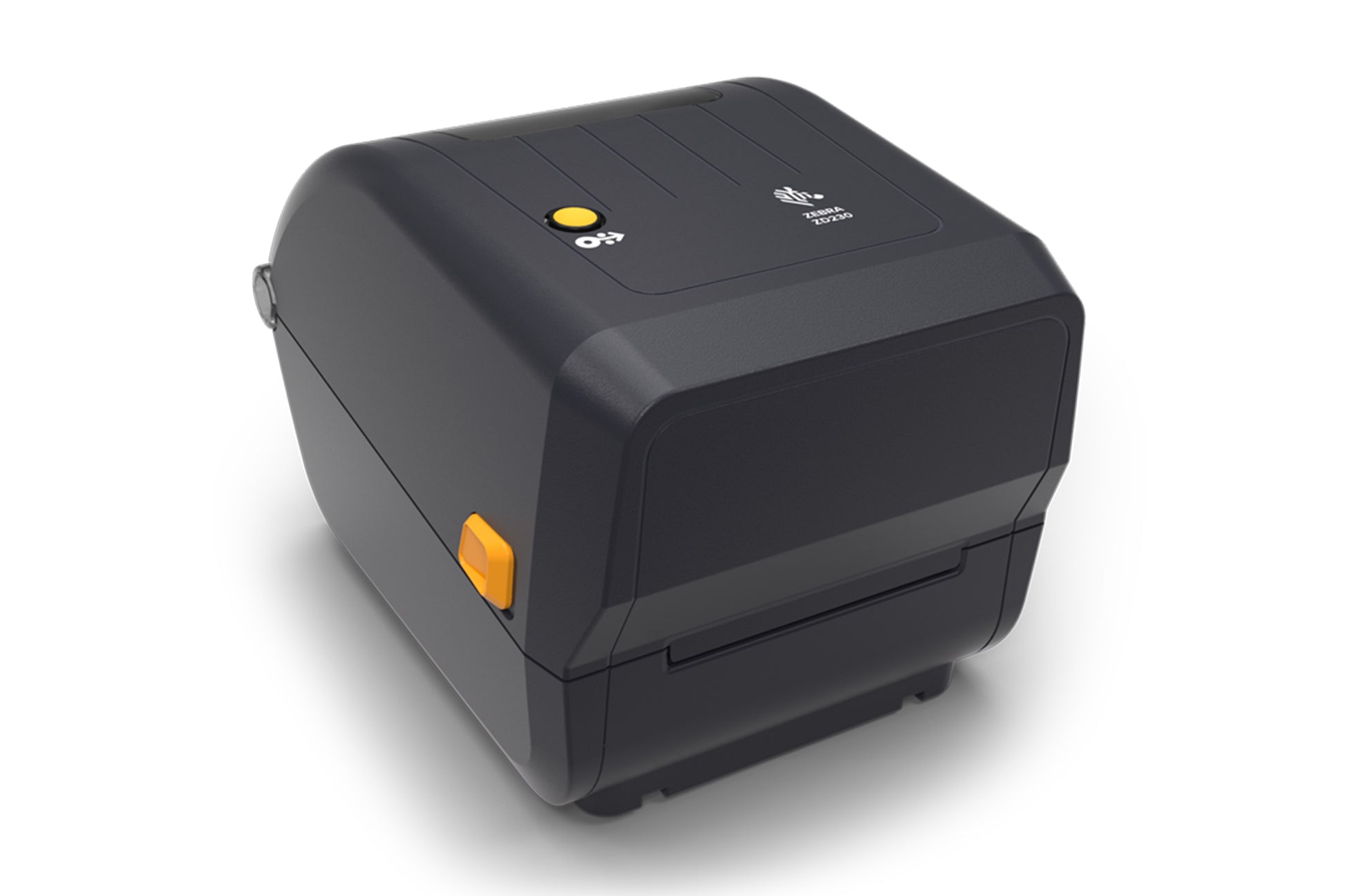

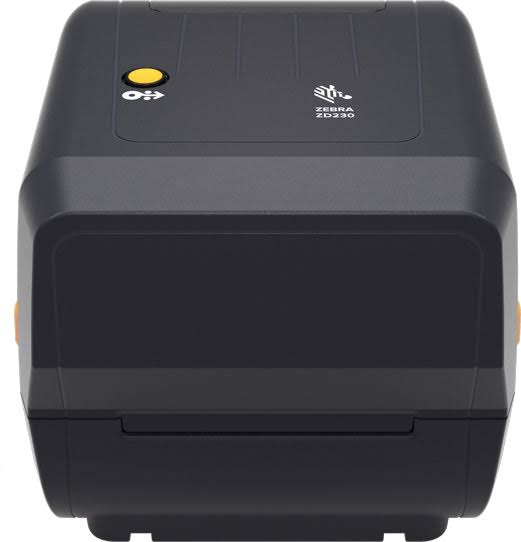

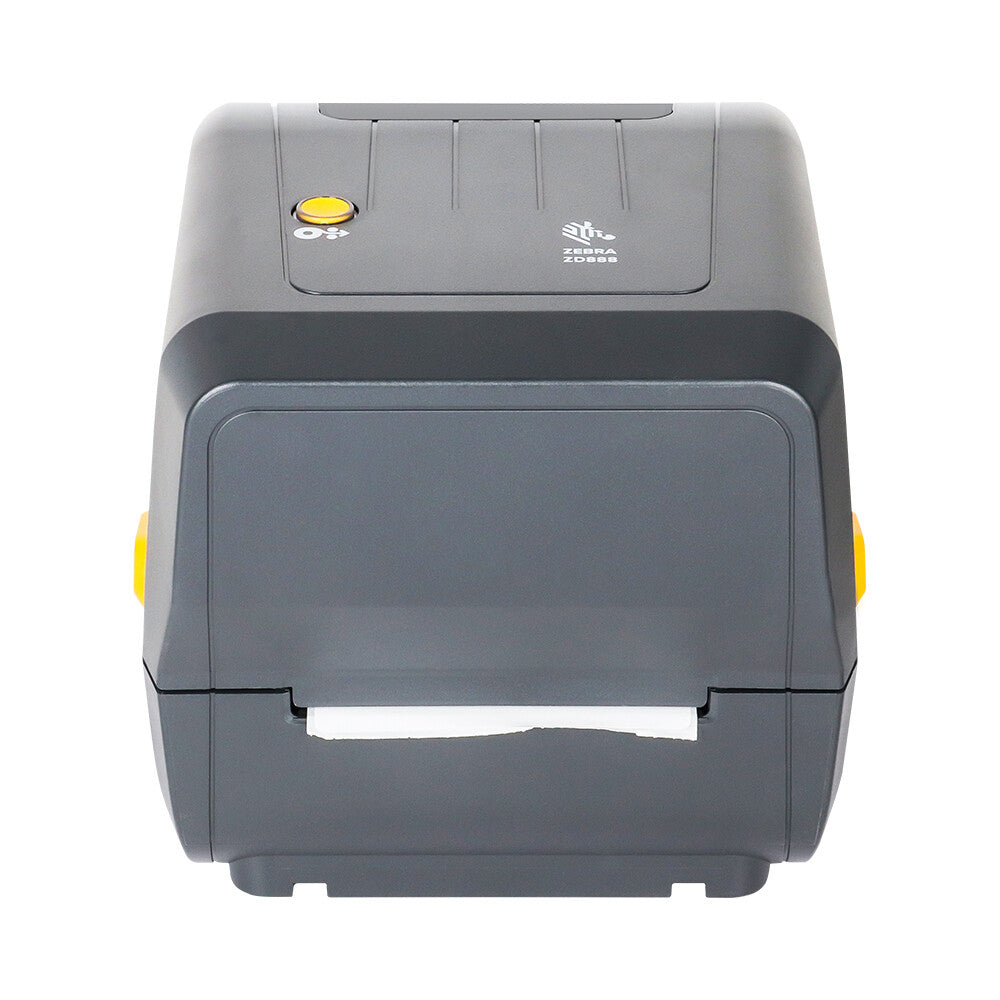

Zebra ZD100AT Thermal Tarnsfer Label Printer Specification:
Overview
Print methods Thermal Transfer + Direct Thermal
Max print speed 152 mm/sec (6 in/sec)
Max print width 104 mm
Media width 25.4–112 mm
Max ribbon length Up to 300 m
Connectivity USB
Resolution 203 dpi
WARRANTY
3 YEARS
PRINT PERFORMANCE
Max print speed 152 mm/sec (6 in/sec)
Resolution 203 dpi
Max print width 104 mm
MEMORY
Flash storage 8 MB
SDRAM 16 MB
User non-volatile memory 2 MB
RIBBON (THERMAL TRANSFER)
Max ribbon length Up to 300 m
Ribbon core options 25.4 mm (300 m) or 12.7 mm (74 m
CONNECTIVITY & SOFTWARE
Connectivity USB
Command languages ZPL II, EPL 2, XML, TSPL subset
Operating system —
Scalable ZPL fonts 3 resident
PHYSICAL & MEDIA
Print methods Thermal Transfer + Direct Thermal
Media width 25.4–112 mm
Media sensors
Movable BM + fixed gap + ribbon + head-open
Optional peeler No
POWER & ENVIRONMENT
Power input 220V AC, 50 Hz (fixed)
Operating humidity 25%–85%
Specification
Auto-resume after power outage
Yes
PRODUCT WARRANTY: 3 YEARS
Choose ZD100 when...
• High-volume printing — 300 m ribbon means 4x fewer ribbon changes • Speed matters — 50% faster print engine (152 vs 102 mm/sec) • Longer warranty is important — 3 years vs 2 years • Printers are hard to reach — auto power-resume feature • TSPL legacy language compatibility is needed
