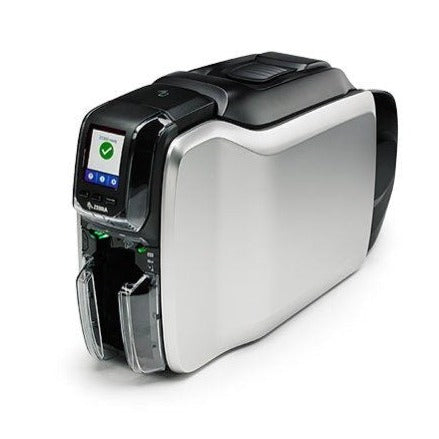

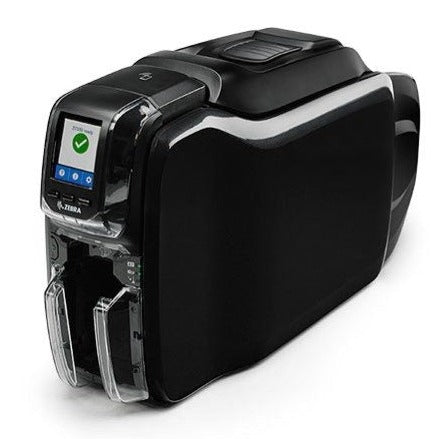

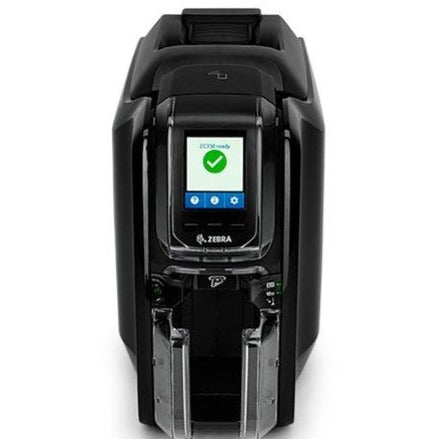

ZC300 CARD PRINTER

ZC300 CARD PRINTER

LE 0.00 EGP
LE 0.00 EGP
Sale Sold out

SPECIFICATIONS

Standard Features

  • 300 dpi (11.8 dots/mm) print resolution
  • 2 GB flash memory
  • Image size: 1006 x 640 pixels
  • Auto calibration of ribbon
  • USB 2.0 and Ethernet 10/100 connectivity
  • 100 card capacity auto-adjusting input hopper (30 mil)
  • 100 card capacity output hopper (30 mil)
  • Manual card feeding capability with LED bezel
  • Graphical color LCD
  • 3 Tricolor printer status indicator lights
  • Kensington® secure lock slot
  • Print Touch NFC tag for online printer help and documentation access
  • Printer host authentication
  • Data encryption

Printing Specifications

  • Dye-sublimation thermal transfer direct to card print method
  • Full-color or monochrome printing
  • Single and dual-sided printing
  • Edge-to-edge printing on standard CR-80 media
    Printing throughput (cards per hour) based on batch printing with USB connectivity. Times may vary depending on the computer configuration.
  • 900 cards/hour single sided monochrome
  • 200 cards/hour single-sided YMCKO
  • 140 cards/hour dual-sided YMCKOK
  • 450 cards/hour dual sided monochrome

Media Specifications

  Supplies Specifications:
NOTE: The ZC300 printer is designed to work only with Zebra genuine ribbons.Ribbons are included in a simple-to-load recyclable cartridge.
Ribbon Description Cartridge Image Count
YMCKO* 200
YMCKO* 300

Card Compatibility:

NOTE: For optimum print quality and printer performance, use of Genuine Zebra supplies is recommended.
  • Card Thickness: 10-40 mil*
  • Card Size: CR80 ISO 7810 ID-1 format, CR79*
  • Card Material: PVC and PVC composite
  • Adhesive back and writable back cards
  • Transparent cards*

*Note: Spot color or monochrome printing recommended only on >20 mil thick cards, CR79 cards, and transparent cards.

Physical Characteristics

Dimensions Single Sided
10.2 in. H x 6.2 in. W x 15.1 in. D
258 mm H x 157 mm W x 383 mm D
Dual Sided
10.2 in. H x 6.2 in. W x 18.4 in. D
258 mm H x 157 mm W x 468 mm D
Weight

Single Sided
8.8 lbs (4.0kg)
Dual Sided
9.7 lbs (4.4 kg)

Communications and Interface Capabilities

USB 2.0
 Standard
Built-in 10/100 Ethernet Optional
802.11ac Optional

Printer Drivers

Microsoft Windows Certified

Windows Server 2008 (32 and 64 bit),
Windows 7 (32 bit and 64 bit)
Windows 8 and Windows 8.1
(32 bit and 64 bit compatible)
Windows Server 2012 (64 bit)
Windows 10 (32 bit and 64 bit)
Windows Server 2016

Windows drivers include:

  • Color coded printer status indicators for the operator
  • Black panel extraction and controls for specialty ribbon panels with image preview
  • Configuration utility to limit access by operators to change image quality and printer settings
  • Advanced printer configuration, security settings and diagnostics capabilities
Linux Ubuntu 16..X (64 Bit)
Apple MAC OS X 10.13.X (64 bit)

Product Warranty: 1Year
