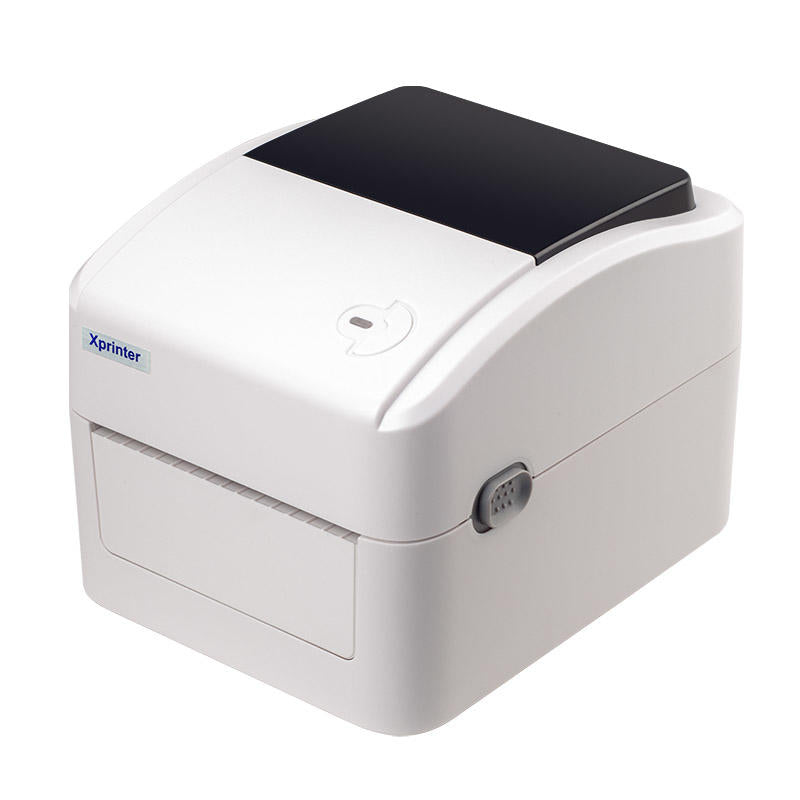

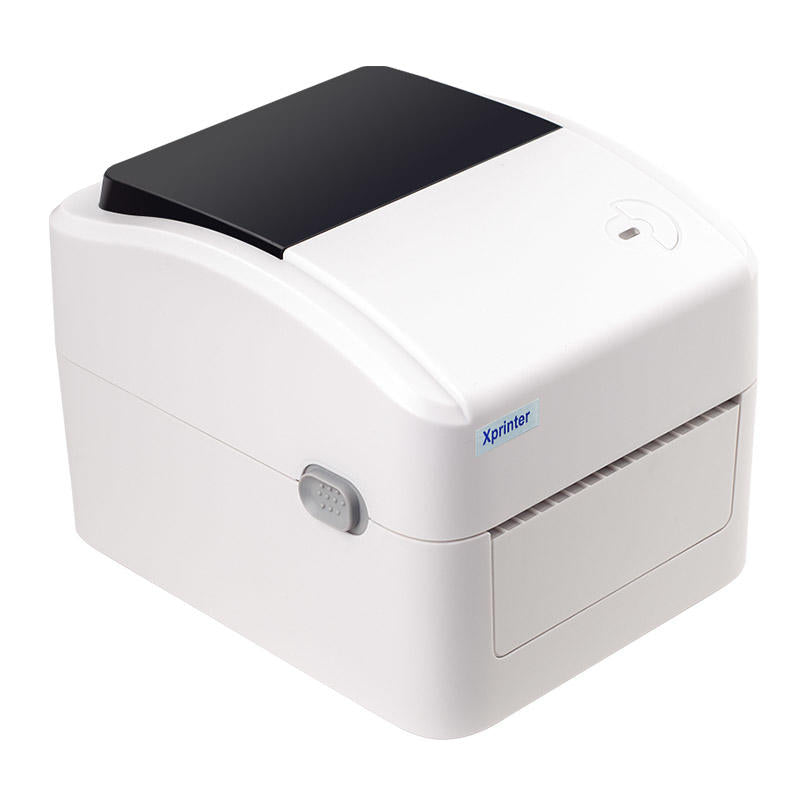

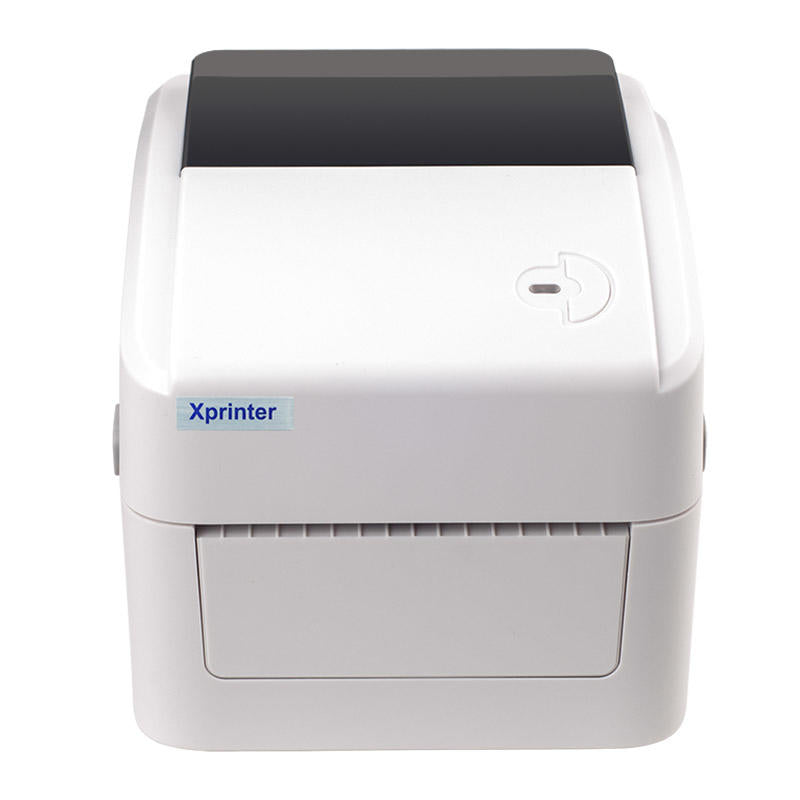

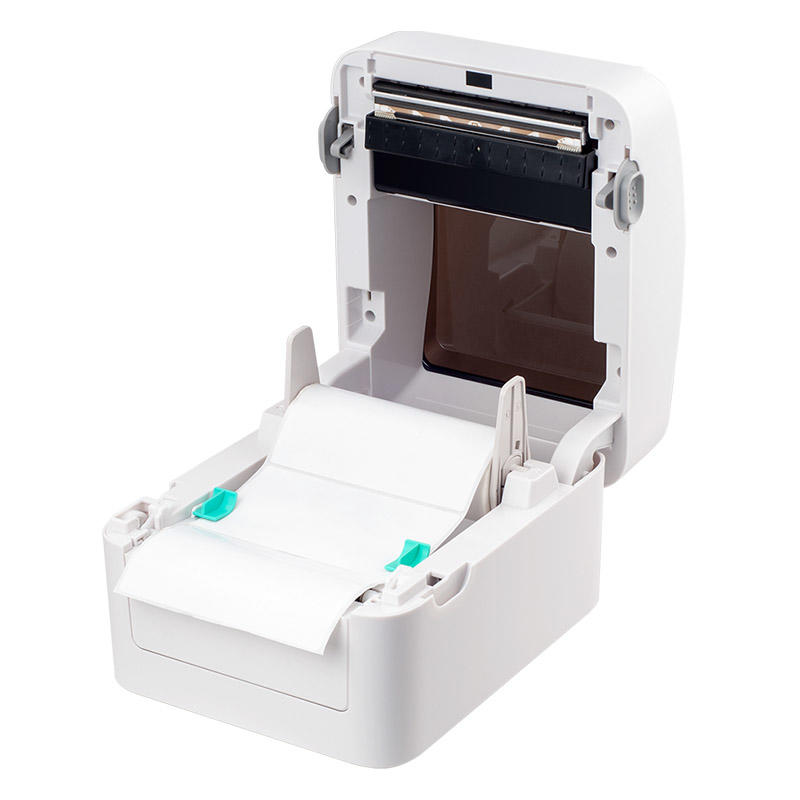

Xprinter XP-420B

Xprinter XP-420B

LE 3,800.00 EGP
LE 3,800.00 EGP
Sale Sold out

Model:

XP-420B

Printing Features:
Resolution :- 203 DPI
Printing method:- Direct Thermal
Max.print speed :- 152 mm (6") / s Max.
Max.print width :- 108 mm (4.25”)
Max.print length :- 1778 mm

Media
Media type :- Continuous, gap, black mark, fan-fold and punched hole
Media width :- 25.4 mm ~ 115 mm
Media thickness :- 0.06~0.254 mm (2.36~10mil)
Media core diameter :- 25.4 ~ 76.2 mm (1 "~ 3 ")
Label length :- 10 mm ~1778 mm

Performance Features
Processor :- 32-bit CPU
Memory :- 8MB Flash Memory, 8MB SDRAM, Flash memory can be expanded to Max. 4 GB
Interface :-

Standard version: USB
Sensors :-

①Gap sensor
②Cover opening sensor
③Black mark sensor

Fonts/Graphics/Symbologies
Internal fonts :- 8 alpha-numeric bitmap fonts, Windows fonts are downloadable from software.
1D bar code :-

Code 39, Code 93, Code 128UCC, Code 128 subsets A, B, C, Codabar, Interleaved 2 of 5, EAN-8,EAN-13,EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, China POST,GS1 DataBar, Code 11
2D bar code :- PDF-417, Maxicode, DataMatrix, QR code, Aztec
Rotation :-
 0°、90°、180°、270°
Emulaion :- TSPL、EPL、ZPL、DPL

Physical Features
Dimension :- 215 mm (L) x 178 mm (W) x 155 mm (H)
Weight :- 1.31 kg

Reliability
Warranty :- One year
Print head life :- 30 km or first arrival first

Software
Driver :- Windows/ Linux/ Mac
SDK :- Windows/ Android/ iOS

Power supply
Input :- AC 110-240V
Output :- DC 24V 2.5A

Options
Factory Options :- ①Peeler  ②Cutter ③RTC
Dealer Options :- ①External paper roll holder
②Paper roll spindle
③Extension board for external paper roll holder

 PRODUCT WARRANTY : 1YEAR

View full details
