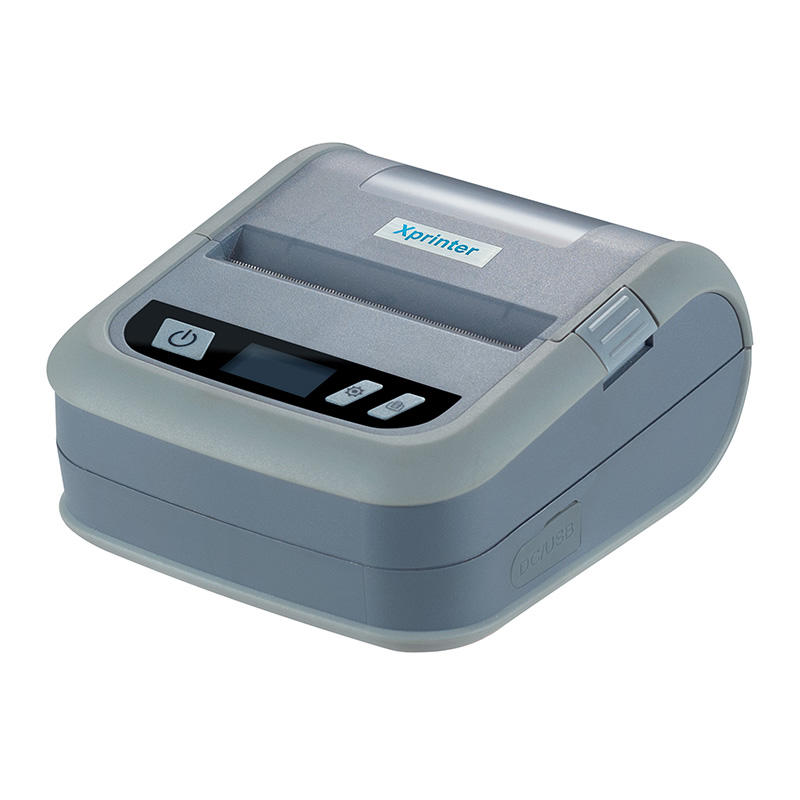

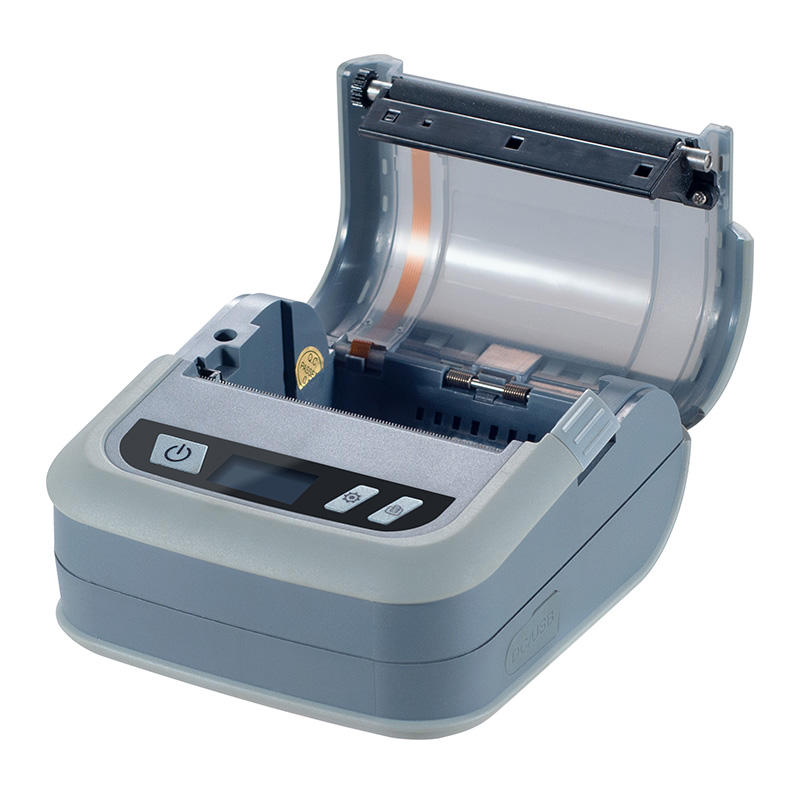

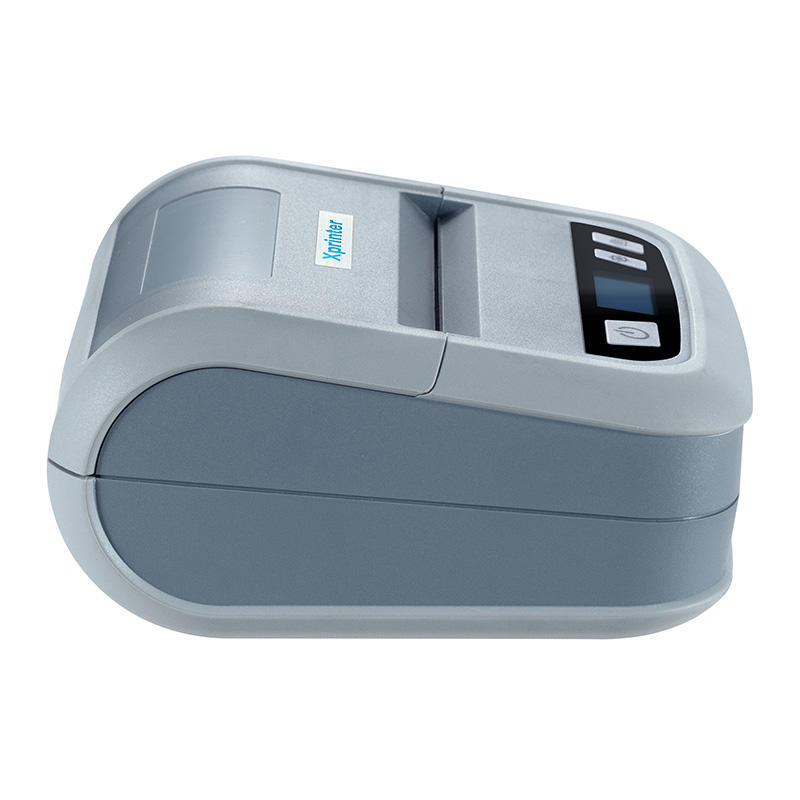

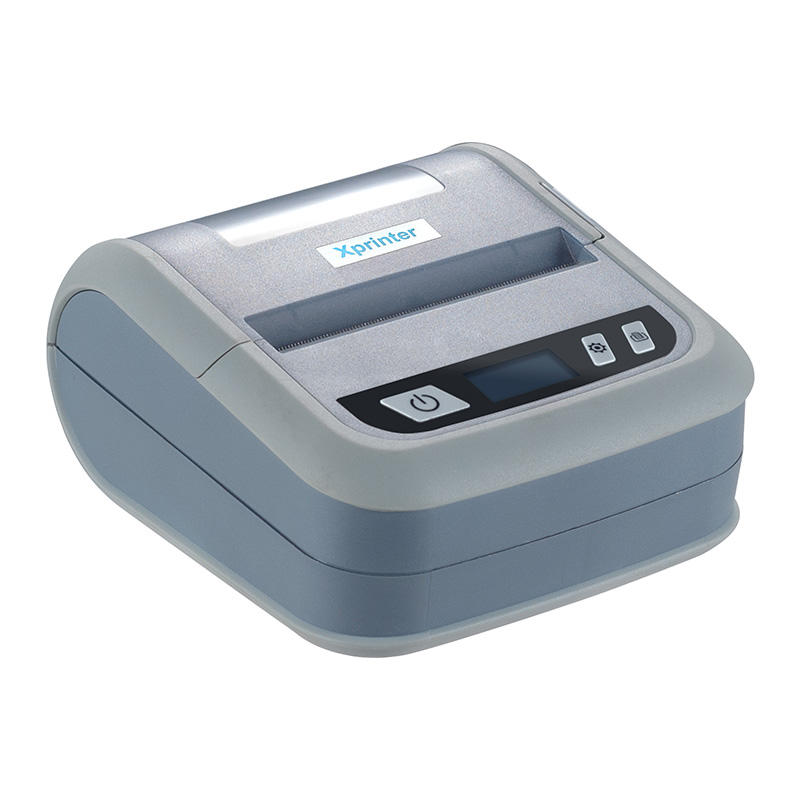

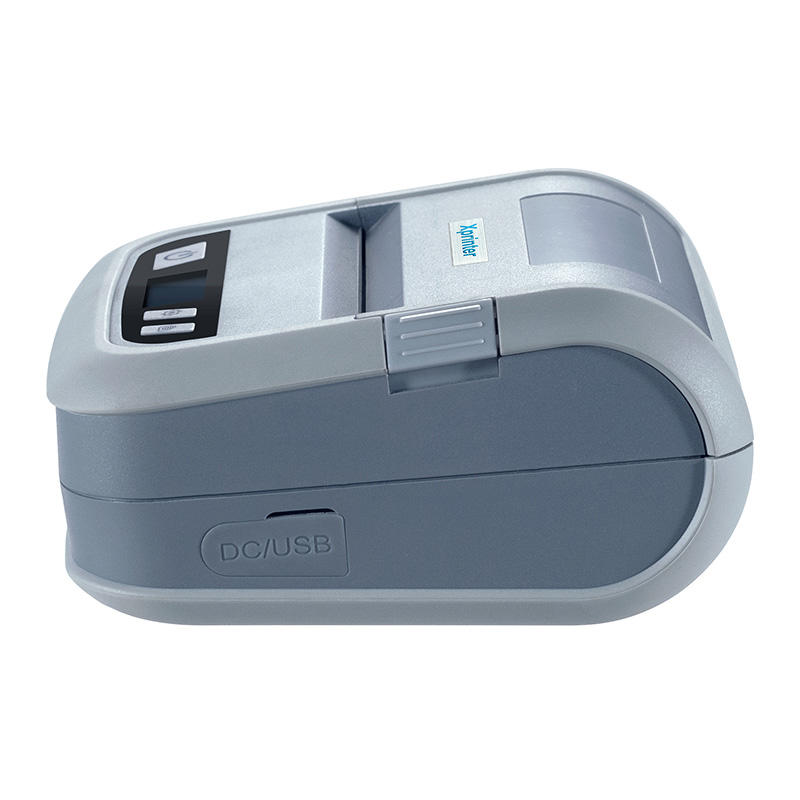

XP-P323B

XP-P323B

Regular price LE 3,050.00 EGP
Regular price Sale price LE 3,050.00 EGP
Sale Sold out

XP-P323B

Product Specification:-

Model XP-P323B
Printing Features
Resolution 203 DPI
Printing method Direct Thermal
Max.print speed Max. 70mm (2.7") / s
Max.print width 72 mm (2.8")
Max.print length 1778 mm (70")
Media
Media type Continuous, gap, black mark
Media width 20 mm ~ 76 mm
Media thickness 0.06 mm ~0.254 mm
Label roll diameter 50 mm
Performance Features
Processor 32-bit CPU
Memory 8MB Flash Memory/ 8MB SDRAM
Interface

Stardard version: USB+Bluetooth     Optional:USB+WIFI

Screen

OLED (1.3") Resolution:128*64 pix

Sensors

①Gap sensor
②Cover opening sensor
③Black mark sensor

Fonts/Graphics/Symbologies
Internal fonts 8 alpha-numeric bitmap fonts, Windows fonts are downloadable from software.
1D bar code

Code 39, Code 93, Code 128UCC, Code 128 subsets A, B, C, Codabar, Interleaved 2 of 5, EAN-8,EAN-13,
EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, China POST

2D bar code PDF-417, Maxicode, DataMatrix, QR code,Aztec
Rotation
0°、90°、180°、270°
Emulaion TSPL、EPL、ZPL、DPL、CPCL、ESC/POS
Physical Features
Dimension 124×108×61mm (D×W×H)
Weight 357 g
Reliability
Print head life 30 km
Software
Operation system Windows/Android/iOS
SDK Windows/Android/iOS
Power supply
Output DC 9V2A
Battery life 7.4V/2500mAh

PRODUCT WARRANTY: 1YEAR

XP-P323B -Pdf
