XB-8602
XB-8602
Couldn't load pickup availability

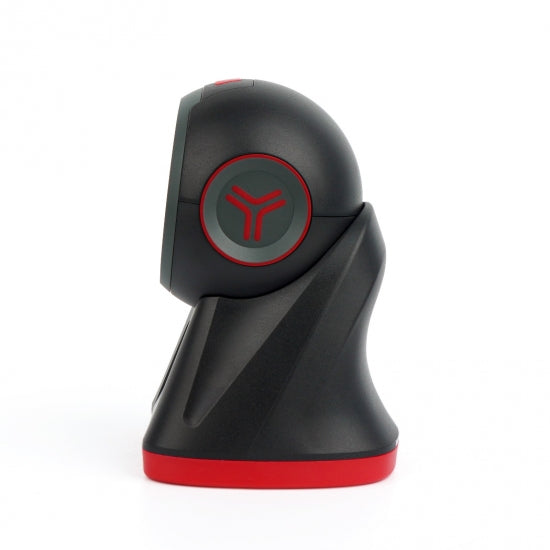

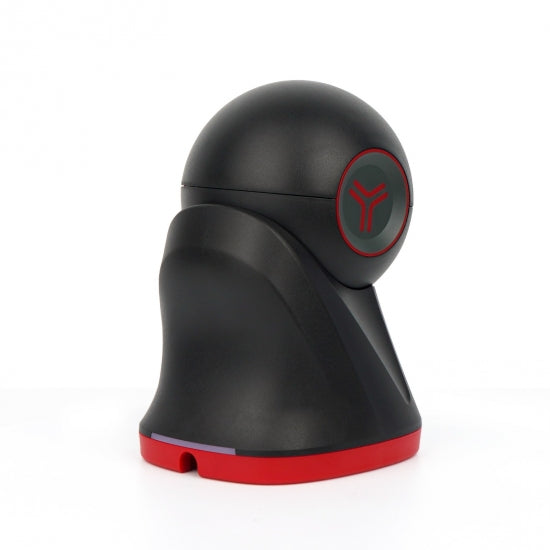

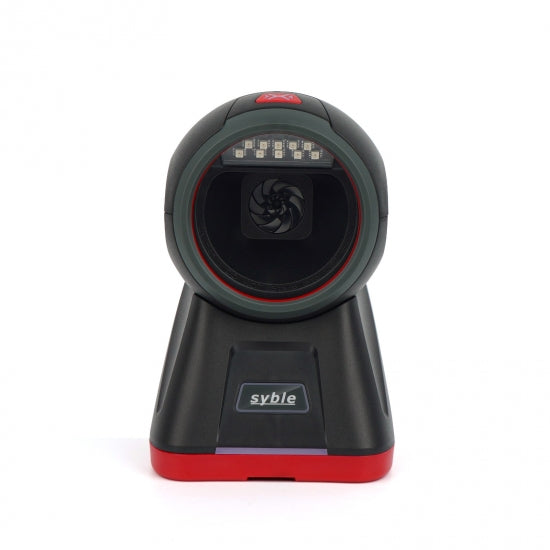

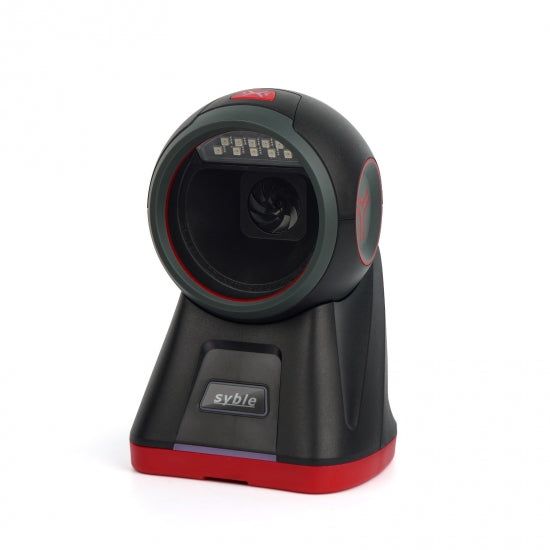

XB-8602 is the newest model of desktop omnidirectional barcode reader, which has button design for trigging in the top, pick up the device to scan easily. Strong recognition of folding code, stain code, vacuum packaging bar code etc. And the loud beep will help you to easily operate in the noisy circumstances. It is capable of scanning 1D 2D code of PDF417, QR code, Data Matrix, Aztec Code etc.
Product Feature:
• New decoding chip, can read the paper 1D & 2D barcode.
• 1D & 2D barcode for mobile phone, tablet, etc.
• Plug and play, simple setup, fast use.
• Adjustable scanning window, flexible and applicable.
• Buzzer and light scanning feedback.
• Error rate as low as 1/5 million times, accurate professional technology.
Product Details:
|
Specification |
|
|
Performance Parameters |
|
|
Sensor pixels: |
640*480 pixels (H)(V) |
|
Supported Symbologies |
1D: 1D: Coda bar, Code 39, Code 32, Interleaved 2 of 5Z NEC 2 of 5, Code 93, Straight 2 of 5Z Industrial, Straight 2 of 5 IATA, Matrix 2 of 5, Code 11,Code 128, ISBT 128, GS1-128, UPC-A, UPC-EO, UPC-E1, EAN/JAN-8 ,EAN/JAN-13, ISBN, MSI, GS1 Data Bar- Omnidirectional, GS1 Data Bar Limited,GS1 Data Bar Expanded. 2D: PDF417, QR code, DataMatrix, Aztec Code, China Post, HongKong 2 of 5,Korea Post, Han Xin code, Maxi code, Micro PDF417, GS1 Composte coders,Codablock A, Codablock F. |
|
Scan Range: |
10-160mm(EAN 13 13mil, PCS=90%) |
|
Print Contrast: |
20% |
|
Motion Tolerance: |
3 meters/second |
|
Scan Mode: |
Automatic Induction Scanning |
|
Field of view: |
44°(H), 34°(V) |
|
Recognition angle range: |
Turn ±360°, Elevation ±65°, Declination ±65°
|
|
Man-machine Interaction: |
Indicator light: blue light flashing code reading prompt, Blue light power indicator. Buzzer: startup prompt, code reading prompt. |
|
Interface: |
USB(Drive-Free), RS232, USB-COM |
|
Physical Parameters |
|
|
Dimensions |
150mm* 108mm*96mm |
|
Material |
ABS+PC |
|
Cable Length |
2 M |
|
Environmental Parameters |
|
|
Operating Temperature |
-20℃ ~60℃ |
|
Storage Temperature |
-30℃~70℃ |
|
Relative Humidity |
5%~95% RH（Non-condensing） |
|
Shock Resistance: |
Withstands multiple times 1.5 meters drops to concrete |
|
Electronic Parameters |
|
|
Working Voltage |
DC5V±5% |
|
Operating Current |
Working current 240mA; Standby current 190mA. |
