XB-8505
XB-8505
Couldn't load pickup availability

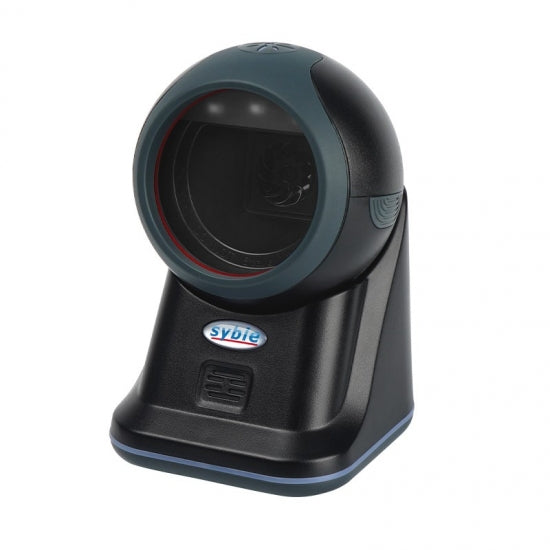

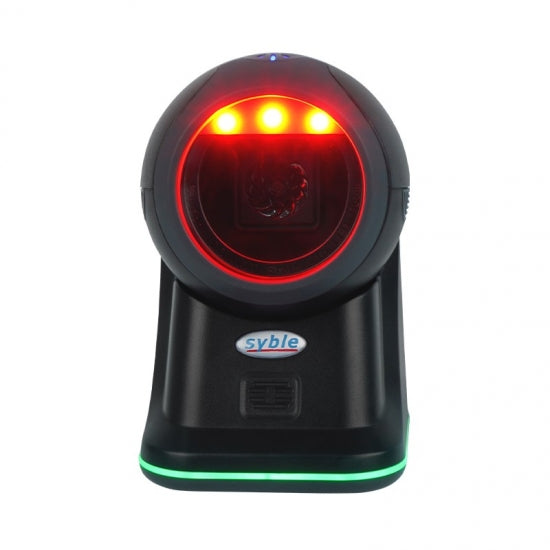

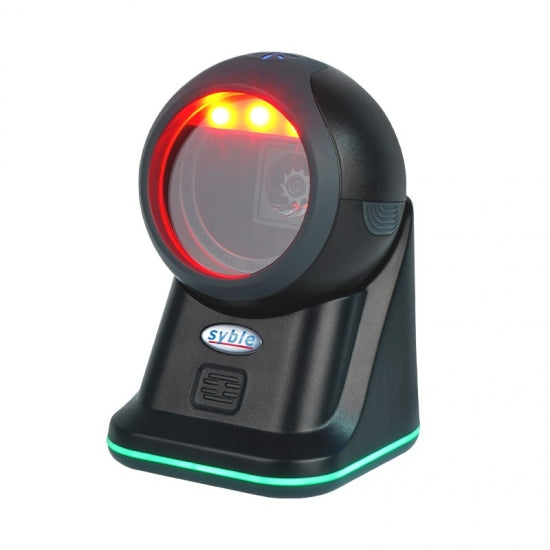

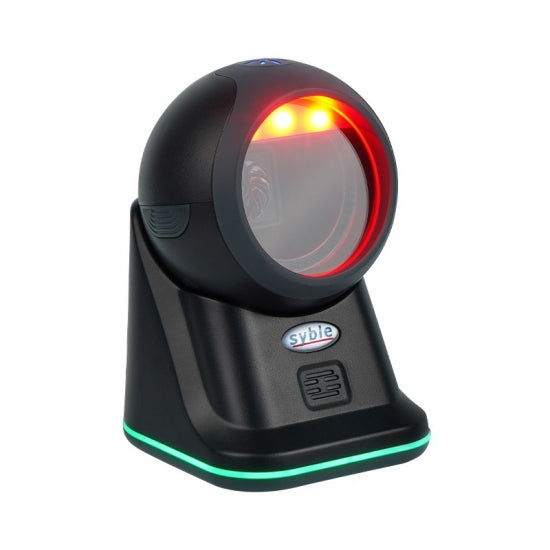

XB-8505 2D barcode scanner with balck+blue appearance design and cheap price. It has wider range and higher speed than traditional laser scanning. When barcodes go through the scan window, the camera will auto-inducted barcodes, it supports for the omnidirectional reading mode.
Product Feature
• New decoding chip, can read the paper 1D & 2D barcode;
• 1D & 2D barcode for mobile phone, tablet, etc
• Plug and play, simple setup, fast use
• Super wide angle lens is adopted to quickly read the bar code of mobile phone screen
• Professional technology, can scan WeChat/alipay payment bar code
• Error rate as low as 1/5 million times, accurate professional technology
Specification
|
Performance Parameters |
|
|
Sensor Pixel: |
640 pixels(H) x 480 pixels(V) |
|
Supported Symbologies |
1D: Codabar, Code 39, Code 32 Pharmaceutical(PARAF), Interleaved 2 of 5,NEC 2 of 5, Code 93, Straight 2 of 5, Industrial, Straight 2 of 5 IATA,Matrix 2 of 5, Code 11, Code 128, GS1-128, UPC-A, UPC-E, UPC-E, EAN/JAN-8, EAN/JAN-13, MSI, GS1 Data Bar-Omnidirectional, GS1 DataBar Limited, GS1 DataBar Expanded.China Post(HongKong 2 of 5), Korea Post.
2D: PDF417, Micro PDF417, QR code, Data Matrix, Maxi Code, Aztec, HanXin, Codablock A, Codablock F, GS1 Composte Coders. |
|
Scan Range: |
10mm-110mm(EAN 13 13mil, PCS=90%) |
|
Scan Mode: |
Automatic Induction Scanning |
|
Print Contrast: |
20% minimum reflective difference
|
|
Field of view: |
44°(H), 34°(V) |
|
Recognition angle range: |
Turn ±360°, Elevation ±65°, Declination ±65° |
|
Man-machine Interaction: |
Ring light: green, top indicator light: blue.Both the reading ring light and the indicator light are flashing, code prompt, buzzer: start prompt, reading code prompt. |
|
Interface: |
USB(Drive-Free), RS232, USB-COM |
|
Physical Parameters |
|
|
Dimensions |
96mm*108mm*150mm |
|
Material |
ABS+PC |
|
Weight: |
315g |
|
Cable Length |
2M |
|
Environmental Parameters |
|
|
Operating Temperature |
-20℃ ~60℃ |
|
Storage Temperature |
-30℃~70℃ |
|
Relative Humidity |
5%~95% RH（Non-condensing） |
|
Ambient Light Intensity: |
0~100000LUX |
|
Drop/Shock Resistance: |
Withstands multiple times 1.5 meters drops to concrete
|
|
Electronic Parameters |
|
|
Working Voltage |
DC5V±5% |
|
Operating Current |
Working current 240mA; Standby current 190mA. |
