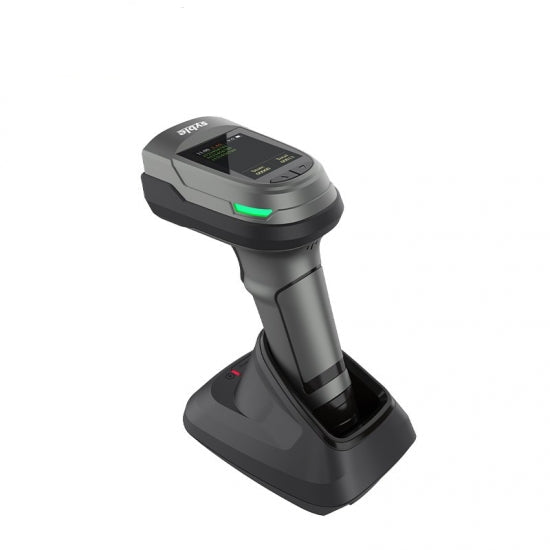

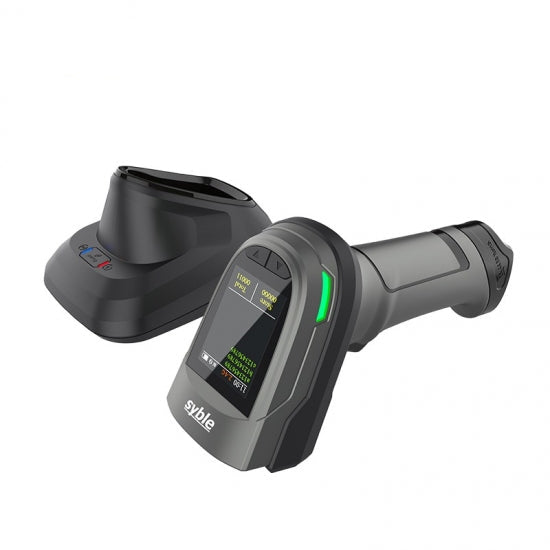

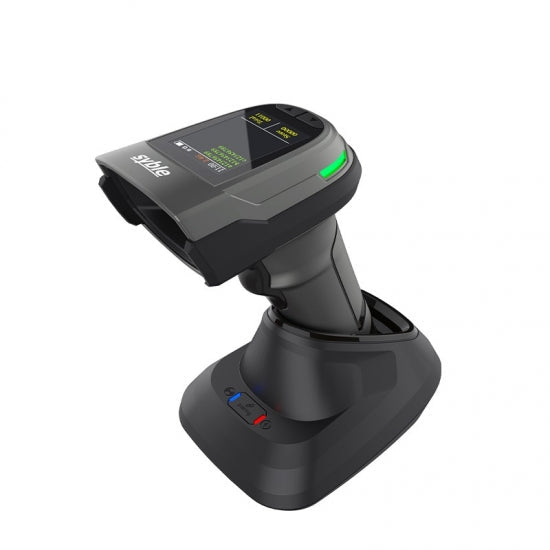

Syble XB 6267DT

Syble XB 6267DT

Regular price LE 0.00 EGP
Regular price Sale price LE 0.00 EGP
Sale Sold out

Key Features:

  • Dual Wireless Mode: Operates on both 2.4G and Bluetooth 5.0 dual wireless modes, providing a transmission distance of up to 100m in open environments. It can also connect to tablets, mobile phones, and laptops via Bluetooth.

  • Multi-Function Display Screen: Features a color TFT screen that displays real-time information such as time, scanner mode, connection status, and battery level. The screen also allows for easy device settings.

  • Superior Performance: Uses a 1.2G ultra-high frequency chip to ensure fast and accurate scanning, with a speed of up to 120 FPS.

  • Removable Battery: Includes a removable 2200mAh battery that supports up to 7 hours of continuous work (25,000 scans). It can be charged directly through the cradle.

  • Offline Storage Function: Supports offline storage mode. When disconnected, scanned data is automatically stored and transmitted upon reconnection. It also supports an inventory mode for asset management.

  • Plug and Play: The device is plug and play, requiring no driver installation. It is compatible with Windows, Android, Linux, and iOS operating systems.

Specifications:

Scan Type 1D, 2D
Interfaces Receiver: USB-HID, Bluetooth: HID, BLE
Light Source  White lighting, green aiming light
Scanning Principle Imaging CMOS
Transmission distance 50-100M(Open Yard)
Resolution 640*480
Scan Mode Manual/Continuous/Automatic Scintillation
Screen function

1. View barcode data in real time;

2.View stored data in real time;

3. View battery power in real time;

4. Real time time display;

5. Scan code gun can be set through the screen

Storage mode

Offline storage mode: The scanner automatically stores data when  it leaves the connection range.

Inventory storage mode: The scanner can enter inventory mode.

Error Rate 1/5 million
Contrast ≥20%
Drop Resistance Withstands a 1.5m free fall

Physical Parameters:

Dimensions  174.8mm * 65.7m m*83.5mm
Material ABS+PC
Screen size 40.8*30.6mm
Weight Lightweight



Environmental Parameters:

Operating Temperature  -20℃ ~50℃
Storage Temperature -40℃~70℃
Relative Humidity 5%~95% RH (Non-condensing)
Ambient lighting 0~100000LUX
Drop/Shock Resistance Withstands multiple times 1.5 meters drops to concrete



Electronic Parameters:



Working Voltage

DC5V±5%

Operating Current

When working without scanning codes >35mA;

When scanning code at work >300mA.

Standby Current

OmA(Standby is to cut off battery power)

Battery Working Time

7H

Lithium battery:

2200mA

Continuous working hours:

Continuous scanning, working time is 6 hours

Charging Time

3H

Charging Mode

Type C charging cable, plug in and charge directly
