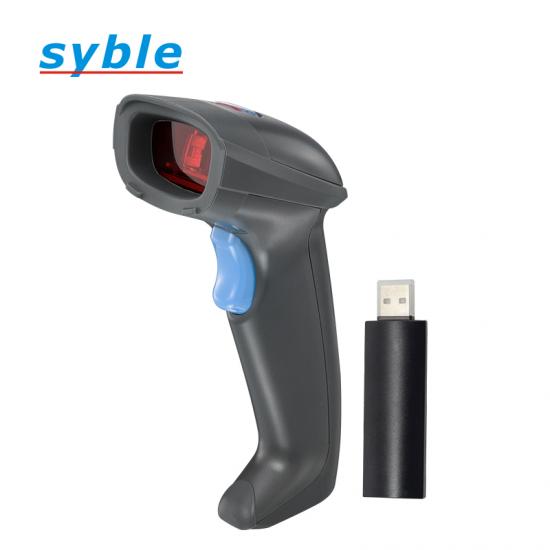

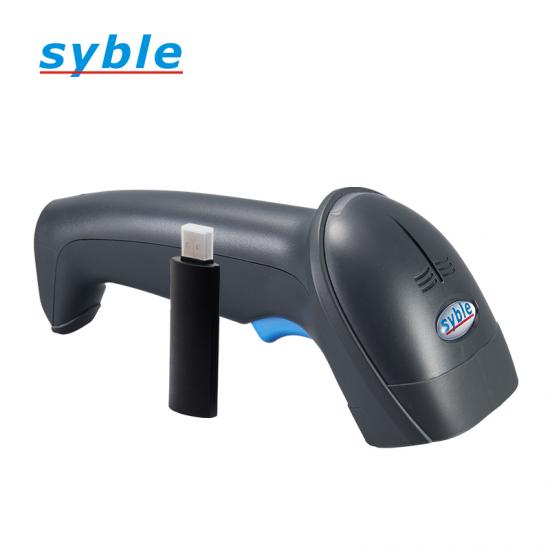

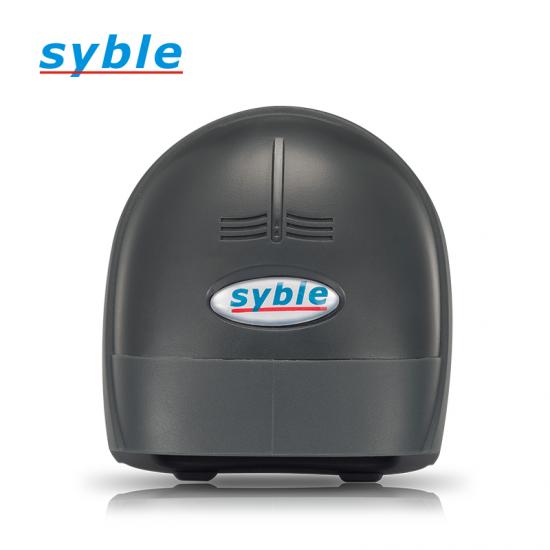

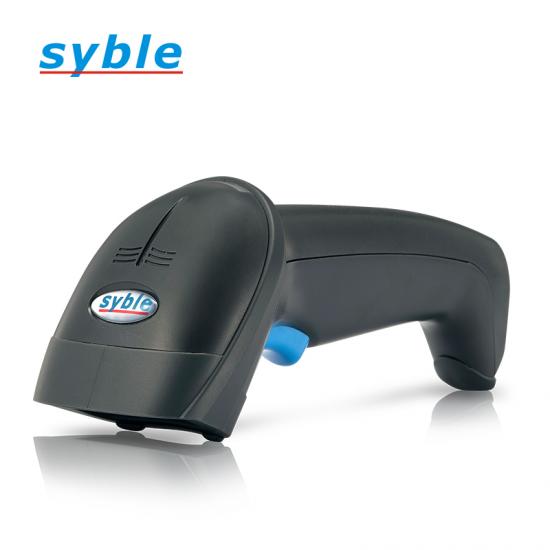

Syble Xb-5055r 1D Laser Wireless Barcode Scanner

Product feature:-

- USB wireless receiver, plug and play, simple setup, fast use.
- Empty transmission distance of 50-80 meters.
- Automatic storage beyond distance.
- Can be used continuously for more than 12 hours.

Specification:-

Model Number

XB-5055R

Performance Parameters:-
Light Sources 650nm laser(Safe visible laser diode)
Supported Symbologies EAN-8,EAN-13,UPC-A,UPC-E,CODE39,CODE93,CODE128, EAN128, Codebar, Industrial 2 of 5,Interleave 2 of 5,   Matrix 2 of 5,MSI,China Post Code and all 1D barcodes ects
Scan Type Single Laser
Scan Speed: ≥300 times/s
Scan Method Manually/Successive/Automatical Scanning(Optional)
Scan Angle Yaw 55°,Rotation 30°,Pitch 65°
Precision 4mil(0.1mm)
Depth of scan field 0-250mm(0.33mm,PCS90%)
Error Rate Less than 1/5 million
Interface USB-HID
Operating Frequency 2.4G
Transmission Distance 50-80M(Open Yard)
Storage Ability 512000 Bytes
Pairing Model One to one

Physical Parameters:-

Dimensions

83mm*70mm*172mm

Weight

155g

Material

ABS+PC

Cable Length

2M

Environmental Parameters:-

Operating Temperature

-20℃~40℃

Storage Temperature

-40℃~70℃

Relative Humidity

0%~85%（Non-condensing）

Drop/Shock Resistance:

Withstands multiple times 3meters drops to concrete

Electrical Parameters:-

Voltage

DC5V±10%

Current

85mA(Operating); 150uA(Quiescent Current)

Lithium battery

550mA

PRODUCT WARRANTY: 1YEAR
