Li 2208
Li 2208
Regular price
LE 2,100.00 EGP
Regular price
Sale price
LE 2,100.00 EGP
Unit price
per
Couldn't load pickup availability

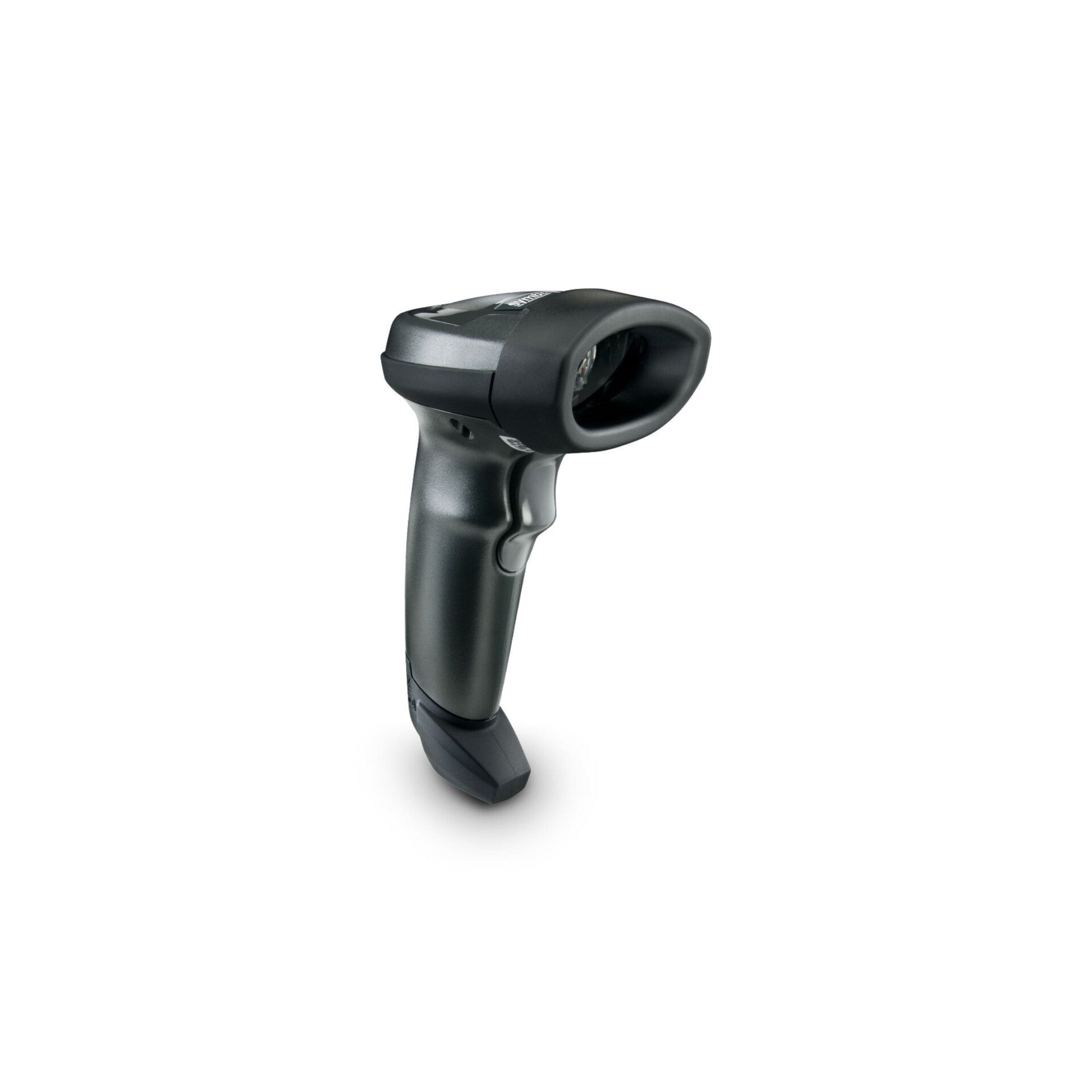

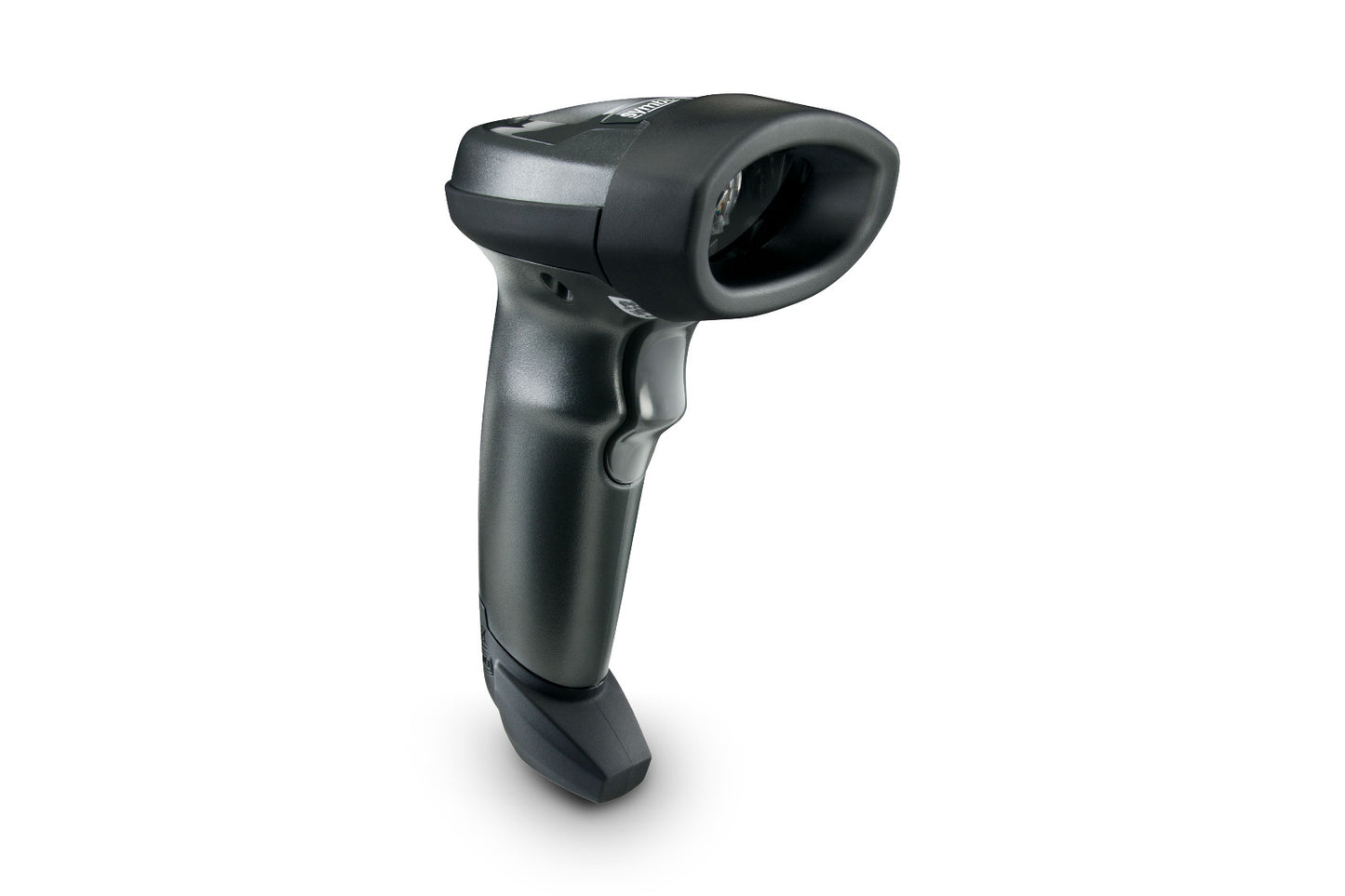

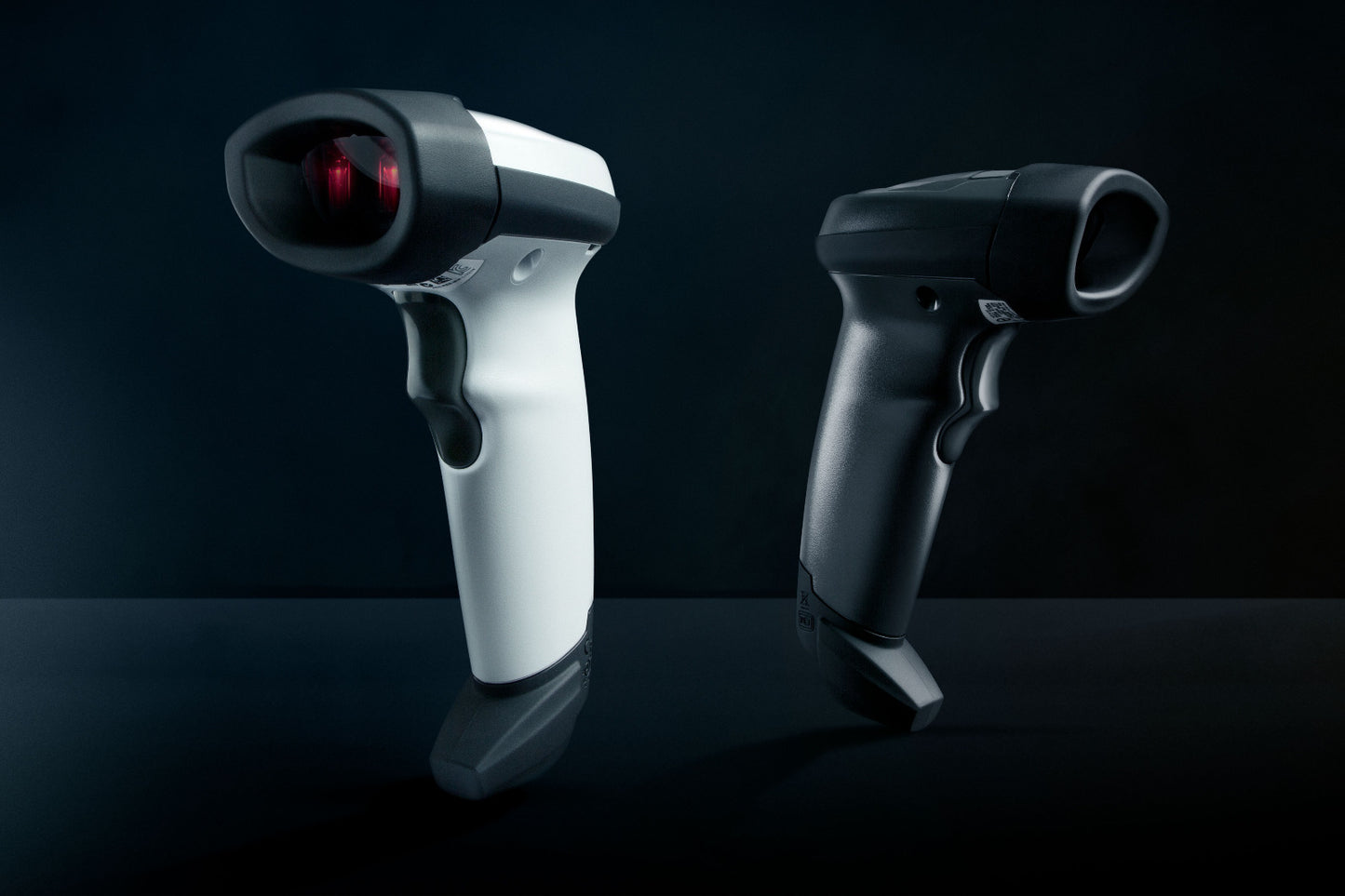

Scanner Zebra Li2208
SPECIFICATIONS:
PHYSICAL CHARACTERISTICS:- |
| Dimensions |
6.30 in. H x 2.64 in. W x 3.90 in. L 16 cm H x 6.7 cm W x 9.9 cm L |
| Weight | 4.95 oz./140 grams |
| Voltage and Current |
5VDC ± 10% <165 mA scanning <40 mA standby <2.5 mA USB suspend <4.0 mA low power mode (when enabled, RS232 and Keyboard Wedge only) |
| Power Source | Host power or external power supply |
| Supported host interfaces | USB, RS232, Keyboard Wedge and IBM RS485 |
| Keyboard Support | Supports over 90 international keyboards |
PERFORMANCE CHARACTERISTICS:- |
| Skew Tolerance | ±65° |
| Pitch Tolerance | ±65° |
| Roll Tolerance | ±45° |
| Scan Pattern | Single bright aiming line |
| Scan Angle | Horizontal 35° |
| Scan Speed | 547 scans per second |
| Motion Tolerance | 25 in./ 63.5 cm per second |
| Light Source | LED Class 1 device 617nm (amber ) |
| Min. Print Contrast | 15% MRD |
DECODE RANGES (TYPICAL WORKING RANGES*):- |
| 3mil | Minimum resolution |
| 4mil | 4-10 in./10.2-25.4 cm |
| 5mil | 3-13 in./7.6-33 cm |
| 7.5mil | 1.5-19 in./ 3.8-48.3 cm |
| 13 mil (100% UPC-A) | 1-31 in./2.5-78.7 cm |
| 20mil | 1-42 in./2.5-106.7 cm |
| 26 mil (200% UPC-A) | 3-55 in./7.6-140 cm |
| 100 mil reflective | >20 ft./6 m |
PRODUCT WARRANTY: 1YEAR
Scanner Zebra Li2208 -Pdf
