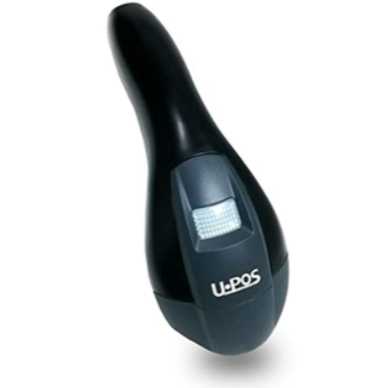

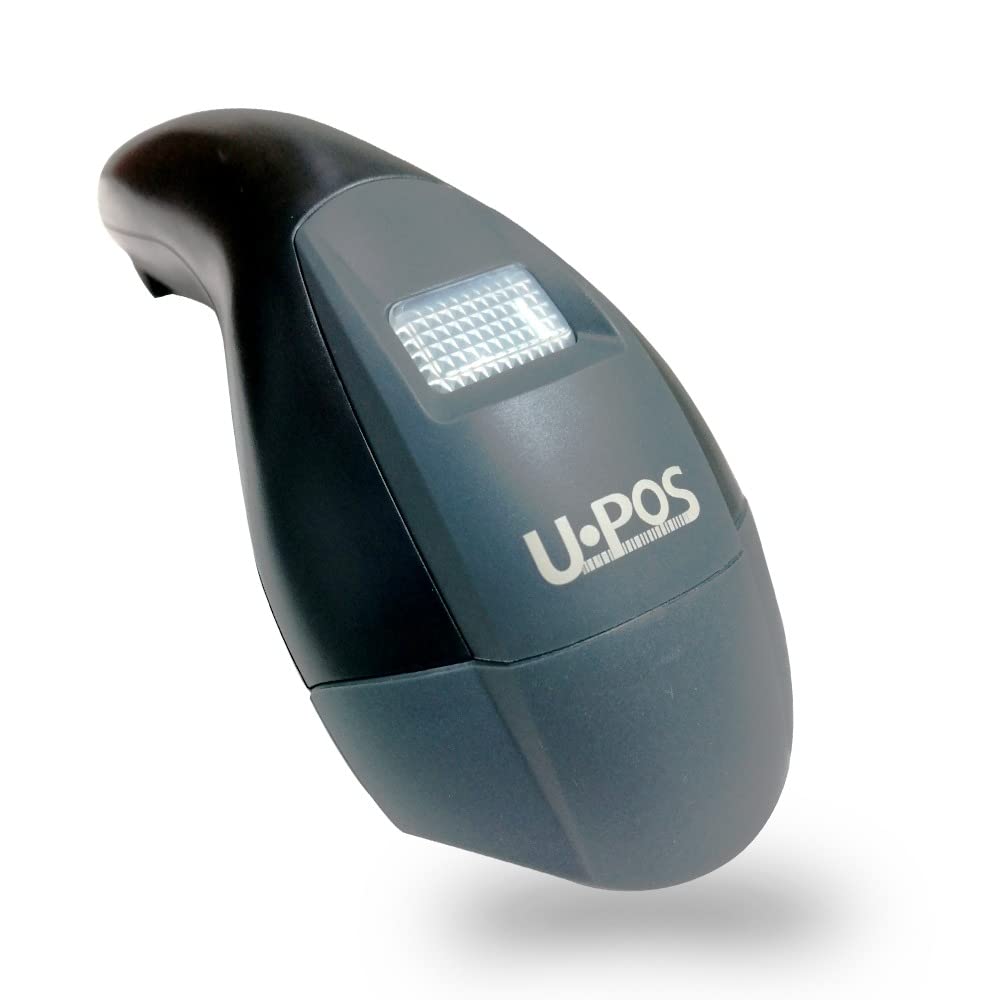

Scanner U POS UP-S600 ID

Scanner U POS UP-S600 ID

Product Feature:-

• New decoding chip for interpreting various 1D codes
• Scan one-dimensional wrinkle, scratch bar code
• Support various barcodes such as WeChat and Alipay
• Withstand multiple 3 meters drops to concrete
• Plug and play, easy to set up and quickly match

Specification:

Performance Parameters:-

Light Sources: 617nm Red visible LED
Supported Symbologies: UPC-A, UPC-E, EAN-13, EAN-8, Codabar, Code 39, Code 39 Full ASCII, China Post, Plessey, MSI, Code 93, Code 128, Industrial 2 of 5, Interleave 2 of 5, Matrix 2 of 5, Code 11, ISBN, ISSN, Code 32(Italian pharm code), Code 39 extended, GS1-128 and ITF-14, SISAS, GS1Omnidirectional, GS1 Limited, Aviation25, RSS 14.
principle of scanning: 2500 Point pixel ccd Image Sensor
Scan Speed: ≥270 times/s
Scan Mode: Manual/Continuous/Automatic Scintillation/Automatic Induction Scanning
Precision: 4mil (0.1mm), 3mil(Optional)
Depth of scan field: 20-330mm(0.33mm, PCS90%)
Scan Angle:Yaw 65°, Rotation 30°, Pitch 55°
Error Rate: 1/5 million
Interface: USB-HID, USB-COM, RS232, PS2

Physical Parameters:-

Dimensions: 200mm*66mm*65mm
Weight: 223.9g
Material: ABS+PC
Cable Length: 2M

Electronic Parameters:-

Working Voltage: DC5V±1%
Operating Current: 150mA.

PRODUCT WARRANTY: 18 MONTHS
