U.POS 888 PRO

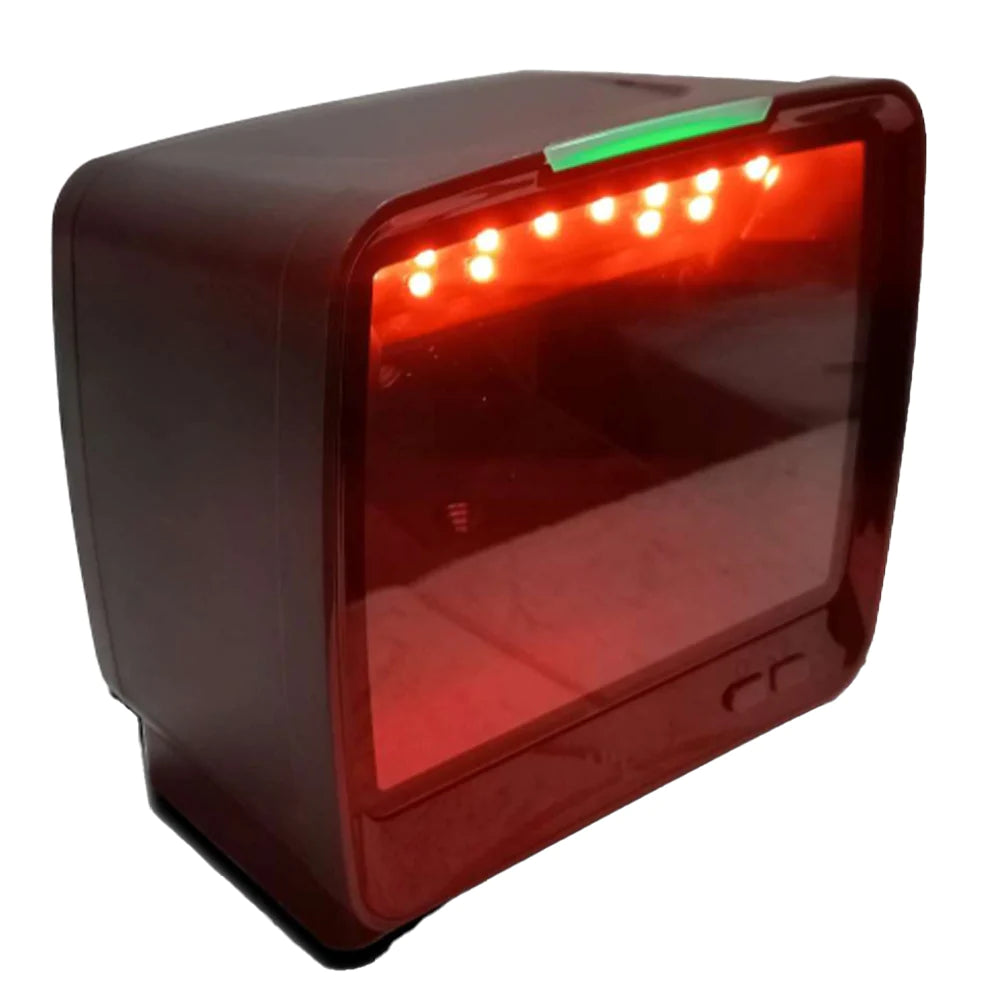

Scanner U-POS 888 PRO

Specification

Performance Parameters:-

Light Sources: Red LED
Supported symbologies: 1D: Codabar, Code 11, Code 39, Code 93, Code 128/EAN128, EAN. UCC Composite, Interleaved 2 of 5, MSI Code, Planet, Plessey Code, Postnet, RSS, Standard 2 of 5, Telepen, UPC/EAN, etc.
2D: PDF417, QR Code, Matrix 2 of 5, Mrico PDF417, Australian Post, Canada Post, Japan Code, Maxi Cdoe, Codeblock, Aztec, Dutch Post, TLC 39, DataMatrix, etc.
Scan Range: Code39(5mil) 0mm~120mm, Code39(20mil) 0mm~240mm, QR(20mil) 0mm~210mm, Alipay Code(QR 3*3cm) 40mm~650mm, Wechat Code(QR 2.3*23.cm) 20mm~550mm
System compatibility: Linux, Android, Windows XP/7/8/10
Minimum recognition accuracy: Code 39 4mil
Motion tolerance: 4 meters/second
Scan Mode: Automatic Induction Scanning
Image(Pixels): 1024 pixels(H) x 1280 pixels(V)
Print contrast: 20% minimum reflective difference
Recognition angle range: Turn ±360°, Elevation ±65°, Declination ±65°
Man-machine Interaction: Indicator light: Red and blue dual color indicator light: Blue light flashing code reading prompt, blue light power indicator; Red light: turn off QR code reading. Buzzer: start prompt, read code prompt;Key: switch three tones; 1D code switch.

Interface: USB(Drive-Free), RS232, USB-COM

Physical Parameters:-

Dimensions: 150mm*97mm*148mm
Weight: 540g
Material: ABS+PC
Cable length:1.8M

 Electrical Parameters:-

Voltage: DC5V±5%
Current: Standby current 190mA, Working current 240mA

PRODUCT WARRANTY: 18 MONTHS
