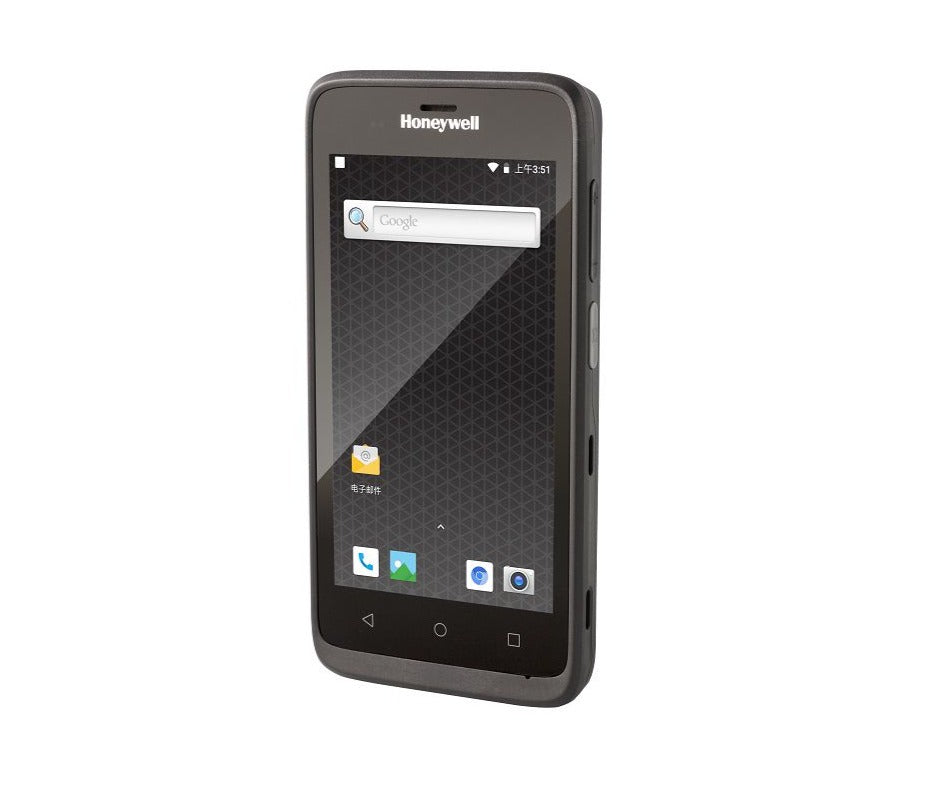

Honeywell EDA51 Mobile Scanner

SCANPAL EDA51 Mobile Computer

MECHANICAL:-

Dimensions: 157 mm x 78.2 mm x 16.9 mm (6.18 in x 3.08 in x 0.67 in)

Weight: 272 g (9.59 oz)

Display Size: Gorilla Glass 5, size 12.7 cm (5.0 in)

Resolution: 1280 x 720 High Definition

Backlight: LED

Touchscreen: Multi-touch capacitive (CTP), GFF

SYSTEM ARCHITECTURE:-

Processor: Qualcomm Snapdragon SDM450, 1.8 GHz octa-core

Memory: 2 GB RAM/16 GB Flash, 3 GB RAM/32 GB Flash; 4 GB RAM/64 GB Flash Operating System: Android 8.1, Android 10

Storage Expansion: MicroSDHC (up to 128 GB)

Camera: 13-megapixel color camera

PC Interface: Micro USB 2.0

Battery: Li-Ion, 3.8 V, 4,000 mAh, removable

Real-Time Clock (RTC): 10 min backup via super-cap

Charging Time: 4.5 hours

Battery Runtime: 12 hours

Scan Engine: Honeywell N3601, N6603 Slim Imager (1D/2D barcode symbologies)

LED:-

Battery Status Indicator: red/green/blue

Sensors: acceleration sensor, light sensor, and proximity sensor

Localization & Language: Worldwide English

WIRELESS CONNECTIVITY:-

WLAN: IEEE 802.11 a/b/g/n/ac

WLAN Security: WEP, 802.1x, TKIP, AES, LEAP, PEAPv0, PEAPv1, EAP-M, SCHAPv2, EAP-GTC, EAP-TLS, EAP-TTLS, WPA-PSK, WPA2

Bluetooth®: Bluetooth Class 4.2

WWAN Radio*:-

• GSM/EDGE: Bands 2, 3, 5, 8

• UMTS/HSPA+: Bands 1, 2, 4, 5, 8, 9, 19

• CDMA 1xRTT/EVDO: BC0, BC1, BC6

• FDD-LTE: Bands 1, 2, 3, 4, 5, 7, 8, 9, 19, 20, 26, 28

• TDD-LTE: Bands 38, 39, 40, 41

NFC: Integrated Near Field Communication

GPS Supported Protocols: Simultaneous receiver support for GPS, GLONASS, and BeiDou

ACCESSORIES (STANDARD):-

USB Communication Cable: Micro USB 2.0 (communicates to PC, supports adapter/USB charging)

USB Wall Adapter: 5 V/2 A

ACCESSORIES (OPTIONAL):-

Hand Strap

Scan Handle

Home Base: Charges one terminal and one replaceable battery simultaneously

Four-Bay Battery Charger: Charges four batteries simultaneously

Four-Bay Terminal Charger: Charges four terminals simultaneously

PRODUCT WARRANTY: 1YEAR

Scanner Honeywell EDA51(ScanPal EDA51Mobile Computer) -Pdf
