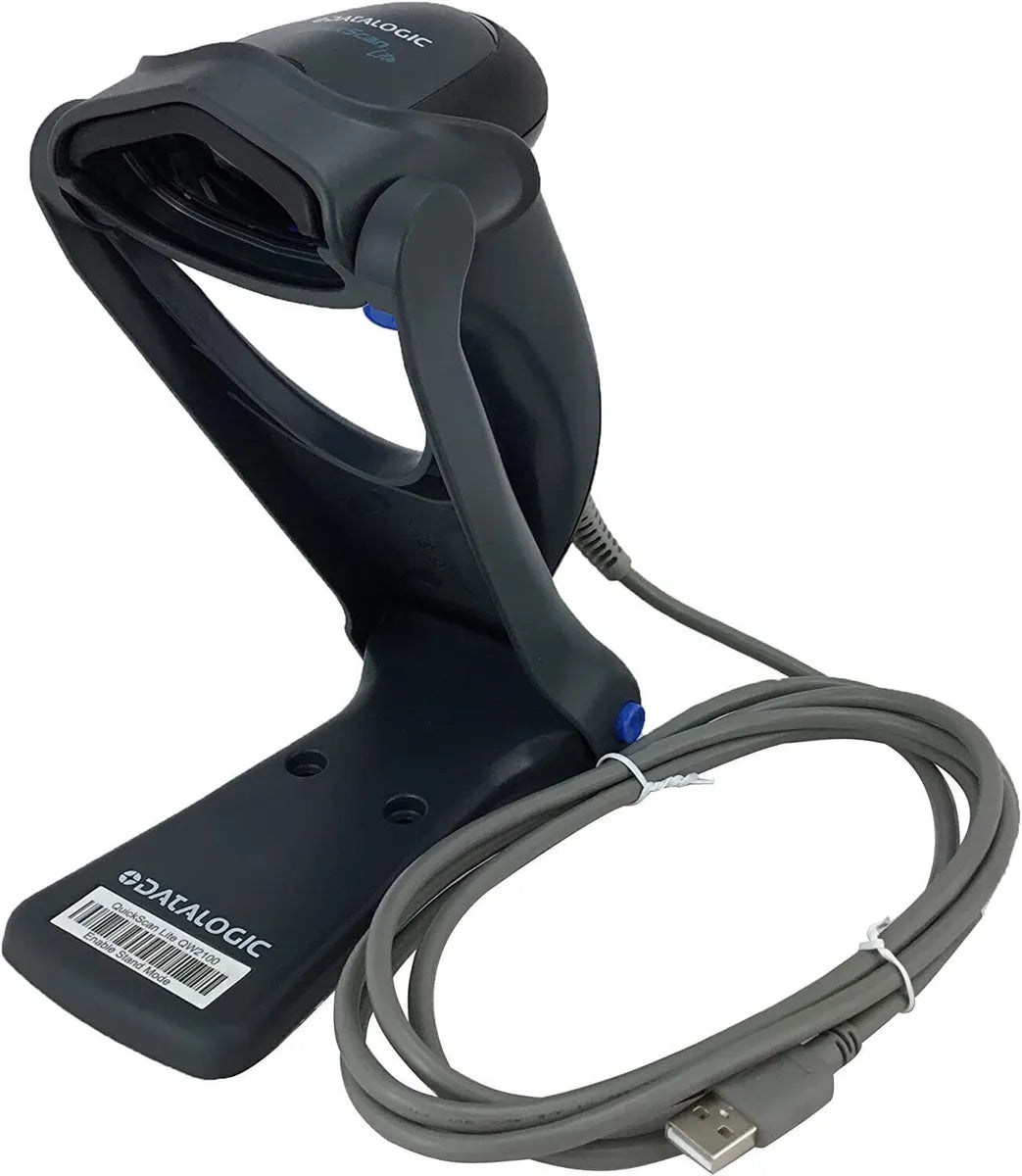

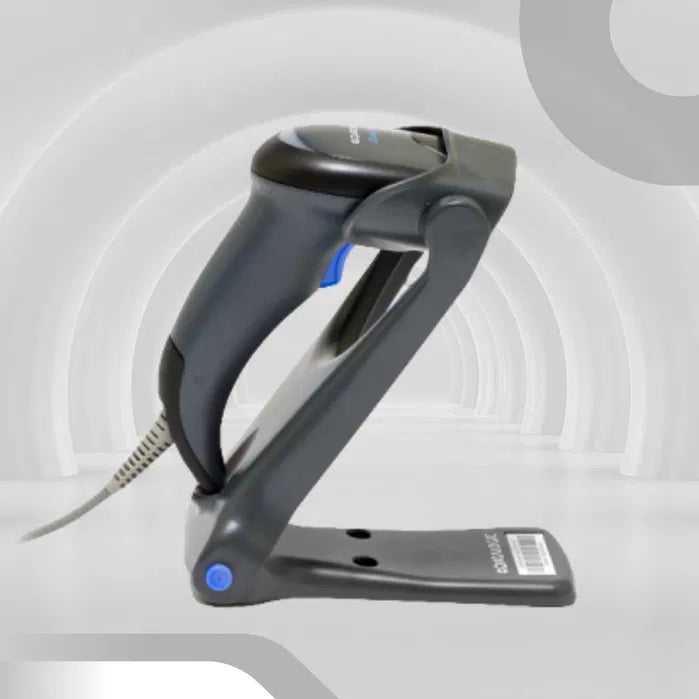

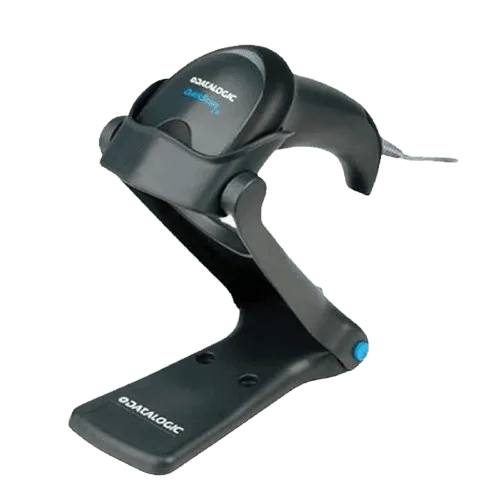

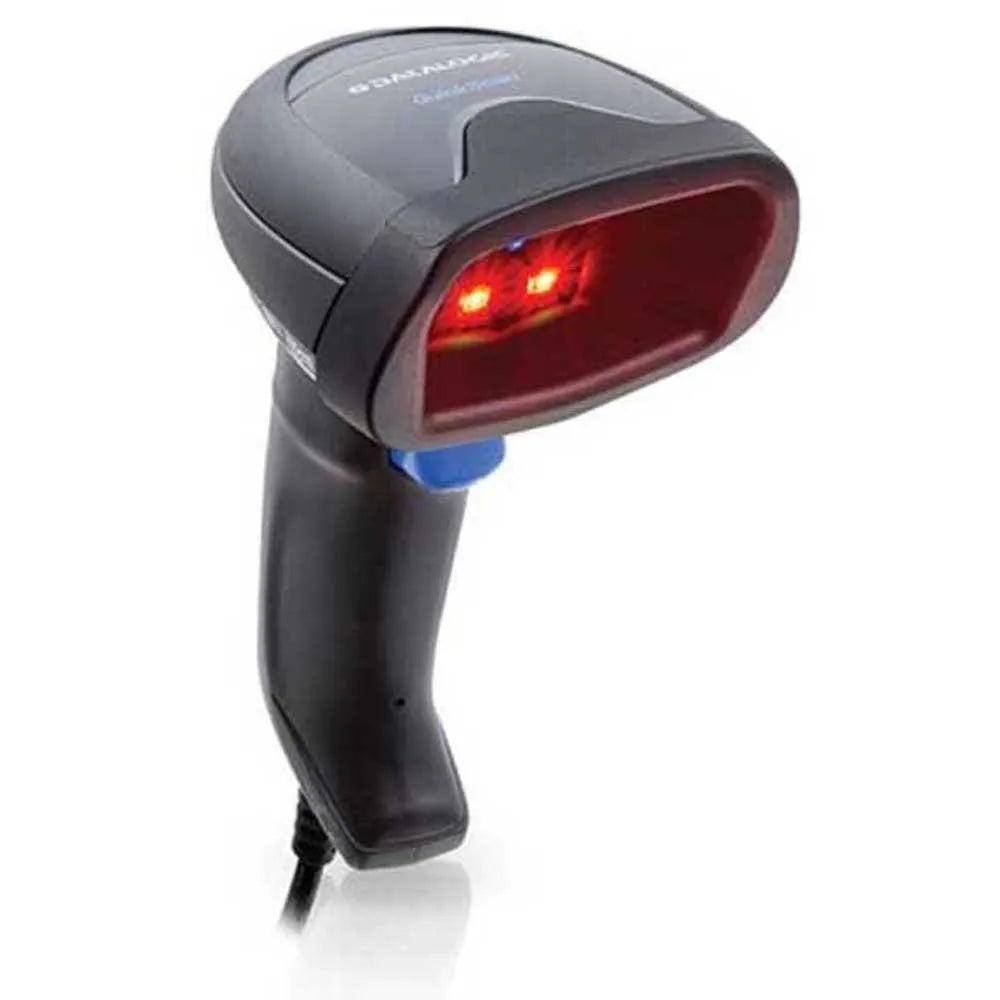

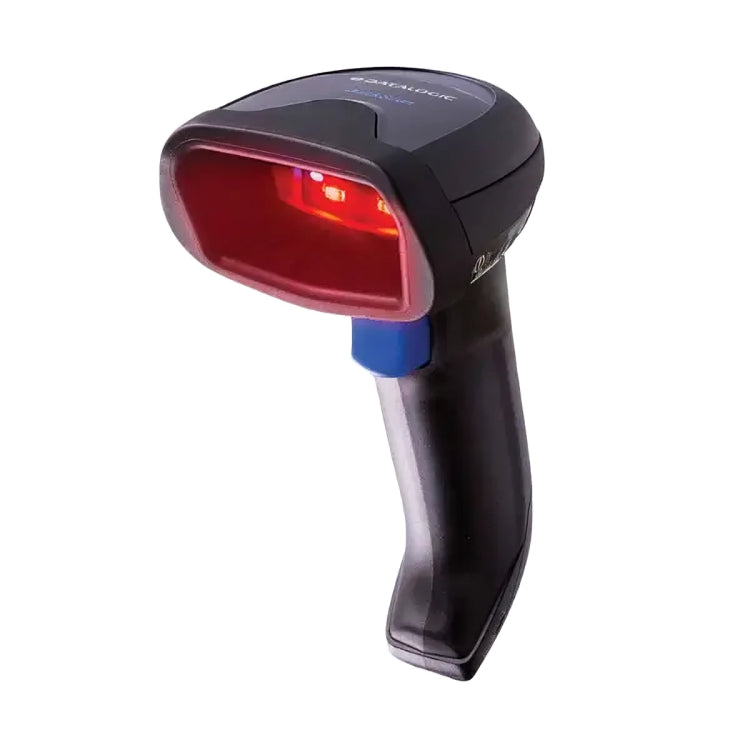

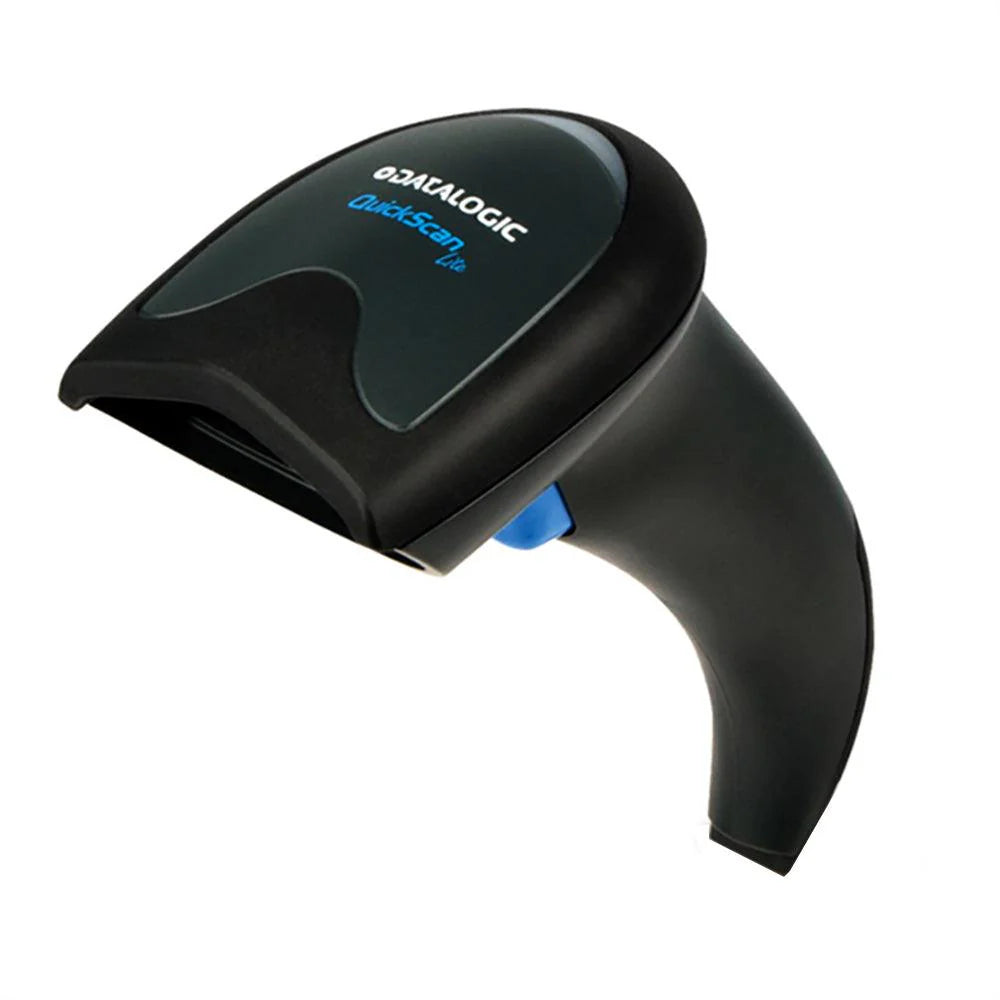

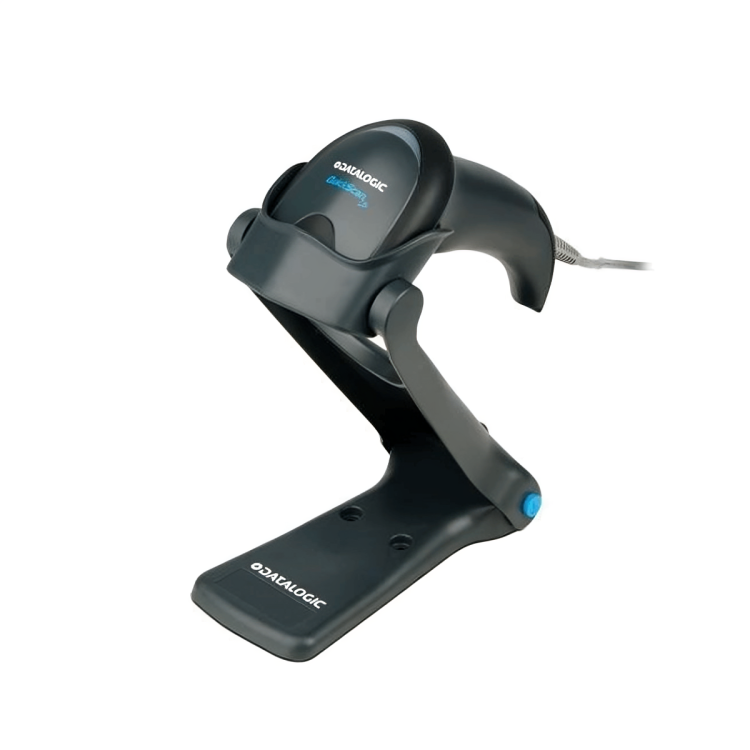

Scanner Datalogic QW2100

FEATURES:-

• Wide scan angle
• Laser-like thinner and extended scan line
• Datalogic’s patented ‘Green Spot’ technology for good-read feedback
• Two interface options: USB or Keyboard Wedge / RS-232
• Built with over molded rubber to protect the imager when dropped
• Compact and multi-position stand
• Water and Particulate Sealing Rating: IP42
• Drop Resistance to 1.5 m / 5.0 ft
• Uses the same cables and power supplies as the current QuickScan products
• Bulk packaging available (10 scanners per box)
• USB Certified Kits available
• Remote Host Download lowers service costs and improves operations (-RM models only)
• EASEOFCARE Service Plans offer a wide range of service options to protect your investment, ensuring maximum productivity and RO

DECODING CAPABILITY:-

1D / LINEAR CODES: Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes.
POSTAL CODES: China Post
STACKED CODES: EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional

ELECTRICAL:-

CURRENT: Operating (Typical): <180 mA @ 5 VDC
Standby/Idle (Typical): <25 mA @ 5 VDC
Sleep Mode:
USB Suspend (QW2120): <2 mA @ 5 VDC
Low Power Mode (QW2170): <6 mA @ 5 VDC
INPUT VOLTAGE: 5 VDC +/- 0.5 V

INTERFACES:-

INTERFACES: QW2170-BK: RS-232 / Keyboard Wedge
QW2120-BK: USB

PHYSICAL CHARACTERISTICS:-

DIMENSIONS: 17.0 x 6.5 x 7.0 cm / 6.7 x 2.5 x 2.7 in
WEIGHT: 119.0 g / 4.2 oz

READING  PERFORMANCE:-

LIGHT SOURCE: Red LED 610-650 nm
PRINT CONTRAST RATIO (MINIMUM): 25%
READ RATE (MAXIMUM): 400 reads/sec.
READING ANGLE Pitch: +/- 65°; Roll (Tilt): +/- 45°; Skew (Yaw): +/- 70°
READING INDICATORS: Beeper (Adjustable Tone); Datalogic ‘Green Spot’ Good Read Feedback; Good Read LED; Good Transmission

RESOLUTION (MAXIMUM): 0.102 mm / 4 mils (1D Codes) FIELD OF VIEW :  56° +/- 25

READING RANGES:-

TYPICAL DEPTH OF FIELD : Minimum distance determined by symbol length and scan angle.
Printing resolution, contrast, and ambient light dependent.
5 mils : 2.5 to 15.0 cm / 1.0 to 6.0 in
7.5 mils : 0 to 24.0 cm / 0 to 9.4 in
10 mils: 0 to 35.0 cm / 0 to 13.8 in
13 mils: 0 to 40.0 cm / 0 to 15.7 in
20 mils: 0 to 60.0 cm / 0 to 23.6 in

PRODUCT WARRANTY: 1YEAR
