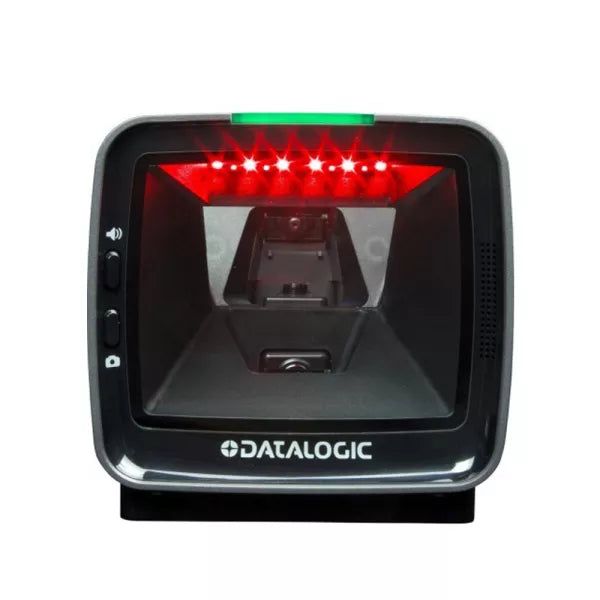

Scanner DataLogic 3410

Scanner DataLogic 3410

Regular price LE 9,000.00 EGP
Regular price Sale price LE 9,000.00 EGP
Sale Sold out

Scanner DataLogic 3410

TECHNICAL SPECIFICATIONS:

DECODING CAPABILITY:-

1D / Linear Codes: Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes.
2D Codes: Aztec Code, Data Matrix, QR Code
Stacked Codes: GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; Micro PDF417, PDF417
Digital Watermarks: Optional support for Digimarc® Barcodes / GS1 DW

ELECTRICAL:-

Power Requirements: AC Input: 100-240 VAC, 50-60 Hz
DC Input: 5-12V
Power Consumption: Maximum: 2.25W @ 5V; 3.3W @ 12V
Typical (RMS): 1.6W @ 5V; 2.1W @ 12V
Sleep Mode (RMS): 0.95W @ 5V; 1.25W @ 12V

INTERFACES:-

Interfaces: OEM (IBM) USB; RS-232; USB Keyboard, USB Com, USB TEC
Auxiliary Ports: Powered Type A USB (USB Com requires power

PHYSICAL CHARACTERISTICS:-

Dimensions Magellan Model 3410VSi: 13.7 x 15.2 x 9.4 cm / 5.4 x 6.0 x 3.7 in
Weight: 0.6 kg /1.3 lb

READING PERFORMANCE:-

Image Capture: Graphic Formats: BMP, JPEG
Image Sensor: 1 MP; 1280 x 800 pixels; Graphic Formats: JPEG, BMP
Light Source: Multiple diffused LEDs, orientation and wavelength optimized for eye comfort
Print Contrast Ratio (Minimum): 25%
Read Height: 14.0 cm / 5.5 in
Read Rate (Maximum): 30 Million pixels per second
Reading Angle: Pitch: +/- 65°; Roll (Tilt): 0 - 360°; Skew (Yaw): +/- 75°
Reading Indicators: Audio beeper with adjustable tone and volume; Good Read LED; Good Transmission
Resolution (Maximum): 5 mil

READING RANGES:-

Typical Depth of Field: Printing resolution, symbol length, scan angle, contrast and ambient light dependent.
1D / Linear Codes
5 mils: 0 to 6.4 cm / 0 to 2.5 in
10 mils: 0 to 15.2 cm / 0 to 6.0 in
13 mils: 0 to 20.3 cm / 0 to 8.0 in
2D Codes (Optional)
6.6 mils: PDF: 0 to 5.1 cm / 0 to 2.0 in
10 mils: PDF: 0 to 12.7 cm / 0 to 5.0 in
10 Mils: Data Matrix: 0 to 6.4 cm / 0 to 2.5 in
20 Mils: Data Matrix: 0 to 18.0 cm / 0 to 7.0 in

PRODUCT WARRANTY: 1YEAR

Scanner DataLogic 3410 -Pdf
