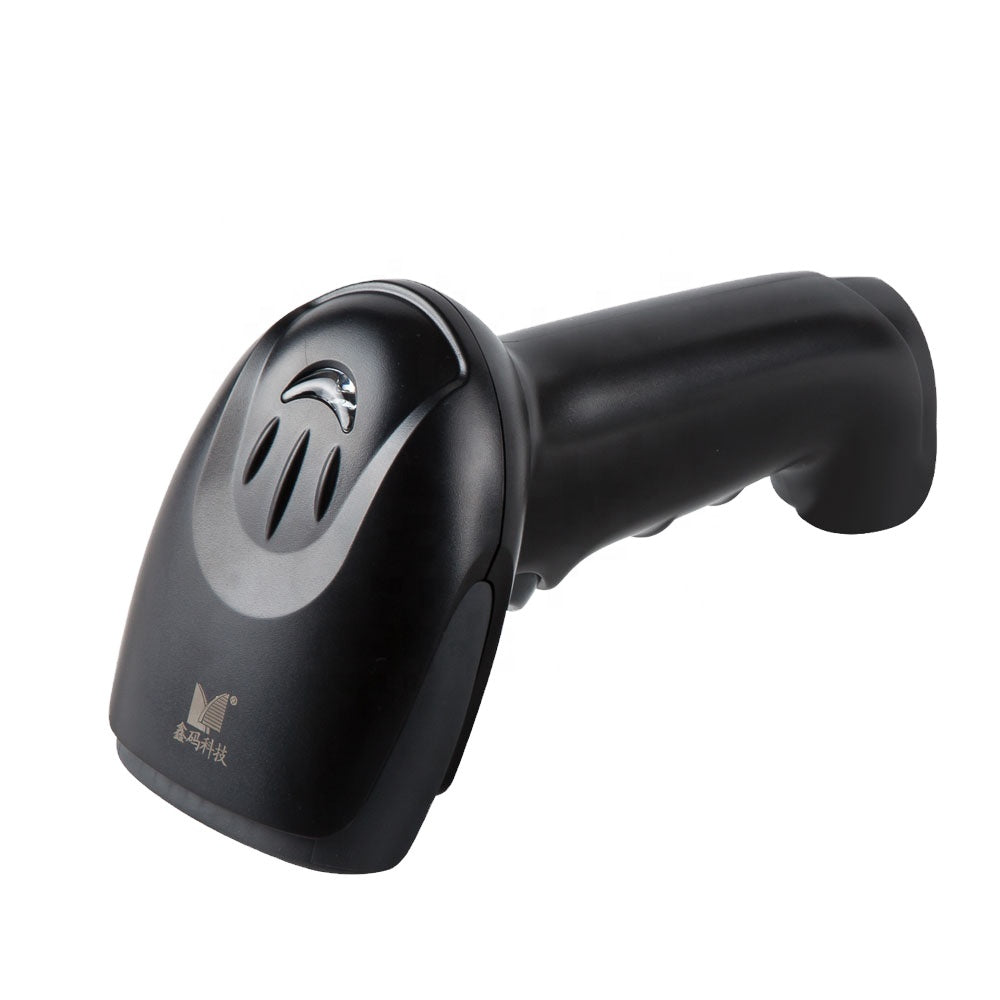

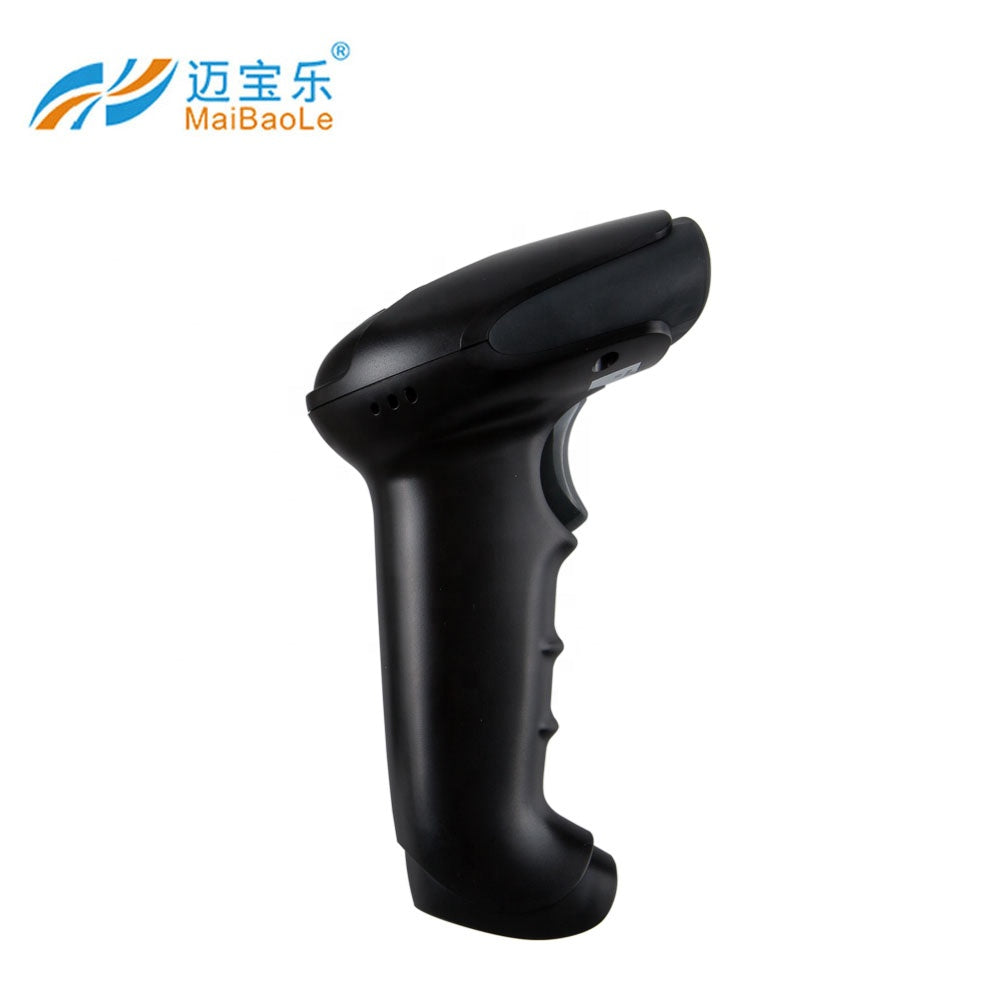

scanner 9700

Optics specification

Optics System 2500 Pixel Toshiba CCD sensor

Lamp-house RED LED (Wave length 630-660mm)

Scan distinguish rate 0.1mm(4mil)

Deepness contrast character (PCS) 30% or more

Read barcode angle 43 degree

Read barcode width Up to 110mm or more (PCS 90%)

Scan distance 4 mil;0-12mm(PCS=90%)-,5mil;0-30mm(PCS=90%)

10.5mil:0-115mm(PCS-90%)

13mil:0-140mm(PCS90%),40MIL:0-240MM(pcs-90%)

Interface Keyboard Wedge,RS232,USB interfaces

Decoder Symbologies

Decodable Symbologies Code39,Full ASC,Code39,Code32,Code128,Code93,Code 11,Codabar/NW7,AllUPC/EAN/JANcode

( EAN-13,EAN-8 ,UPC-A,UPC-E,EAN-128),

Interleave 2 of 5,STD 2 of 5,Industrial 2 of 5,matrix 2of 5, Chinese Postage Code, IATA, MSI/PLESSY, Italian Pharmacy Code, Industrial 2 of 5,BC-412

Option decodable RSS-14,RSS Limited, RSS Expanded, PDF 417

Electronic specification

Process 32 bits ARM AT9XSAMXXX

Voltage 4.5V-5.25V DC±5%

Operate standard 100-130mA

Working current 125mA

Operation condition

Operation temperature +32"F to +105"F (0to + 50 degree)

Stock temperature -15"F TO +140"F(-26 to 60 degree )

Operation humidity 10% to 80%

Stock humidity 10% to 90% RH

Anti-condition light 10000 Lux max, (Fluorescence),5000 lux max,(sunlight)

Anti-shake 1.2 meter high to floor
