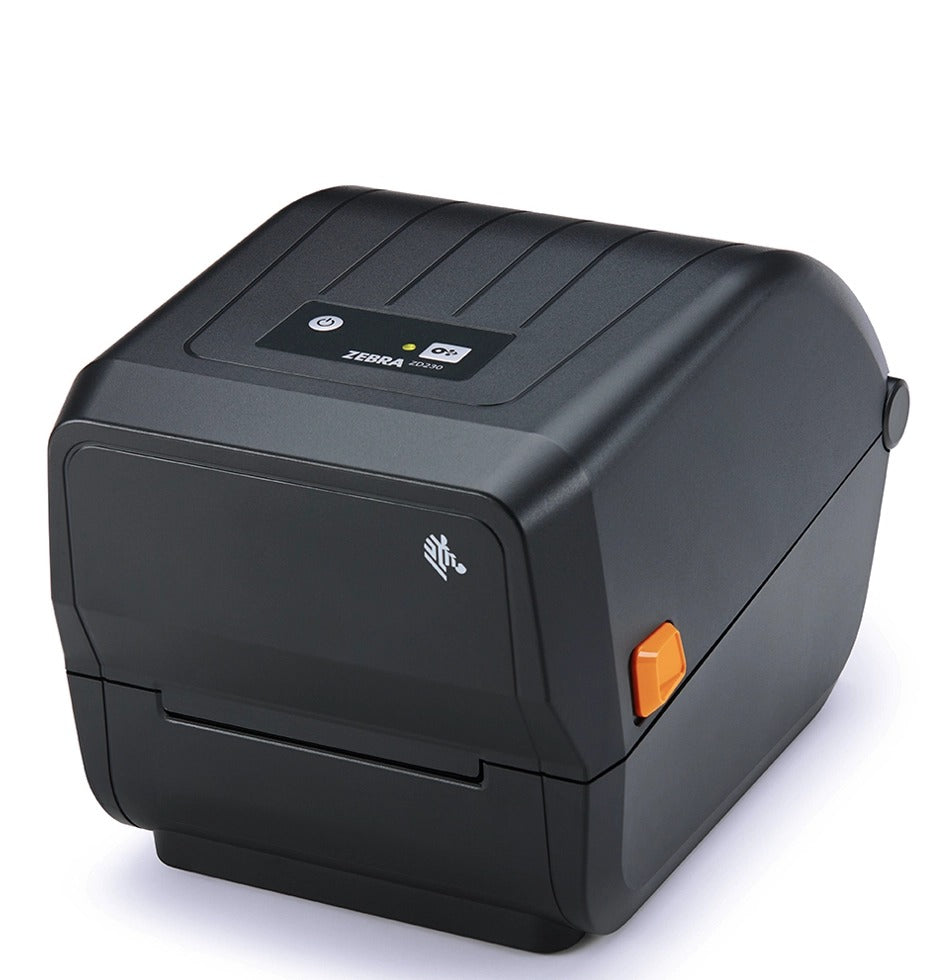

ZD220T

ZD220T

LE 10,400.00 EGP
LE 10,400.00 EGP
Sale Sold out

ZD220 SPECIFICATIONS

Standard Features

• Thermal Transfer or Direct Thermal print method
• ZPL and EPL programming languages
• Single LED status indicator
• Single button for feed/pause
• USB connectivity
• OpenACCESS™ for easy media loading
• Dual-wall frame construction
• ENERGY STAR qualified

Physical Characteristics

Dimensions
Thermal Transfer:
10.5 in. L x 7.75 in. W x 7.5 in. H
267 mm L x 197 mm W x 191 mm H
Direct Thermal:
8.6 in. L x 6.9 in. W x 5.9 in. H
220 mm L x 176 mm W x 151 mm H
Weight 2.5 lbs./1.1 kg

Printer Specifications

Resolution* 203 dpi/8 dots per mm
Memory 256 MB Flash; 128 MB SDRAM
Maximum Print Width 4.09 in./104 mm
Maximum Print Speed 4 in./102 mm per second
Media Sensors
  • Movable black mark sensor, limited range from center to left side
  • Fixed off-center gap sensor
Firmware ZPL II; EPL 2; XML

Media and Ribbon Characteristics

Maximum Label Length 39.0 in./991 mm
Media Width 1.00 in./25.4 mm to 4.4 in./112 mm
Media Roll Size 5.00 in./127 mm outer diameter Core inner diameter: 0.5 in. (12.7 mm) and 1.0 in. (25.4 mm) standard, 1.5 in. (38.1 mm)
Thickness 0.003 in. (0.08 mm) min.; 0.0075 in. (.1905 mm) max. (tear-off mode only)
Media Types Roll-fed or fan-fold, die cut or continuous with or without black mark, tag stock, continuous receipt paper, and wristbands
Ribbon Outside Diameter 1.34 in./34 mm (74 m)
Maximum Ribbon Length 244 ft. (74 m)
Ribbon Ratio 1:1 media to ribbon (74 m)
Ribbon Width 1.33 in./33.8 mm ~ 4.3 in./109.2 mm
Ribbon Core I.D. 74 Meter ribbon 0.5 in./12.7 mm

Print DNA Software

  This printer is supported by a core set of Print DNA Basic applications and capabilities.
Zebra Setup Utilities Enhances out-of-the-box experience by enabling quick and easy printer configuration
ZebraDesigner
Essentials		 Makes designing and printing industry-standard and compliant labels simple, including fixed or variable data
Emulations On-printer apps allow Zebra printers to use legacy languages normally associated with other printer brands

 Product Warranty: 1Year

Printer zebra ZD220T -Pdf
