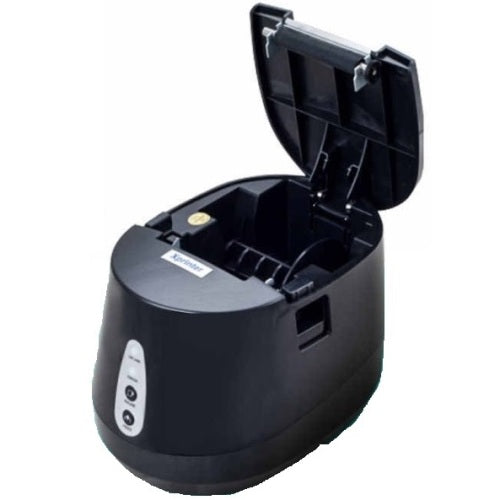

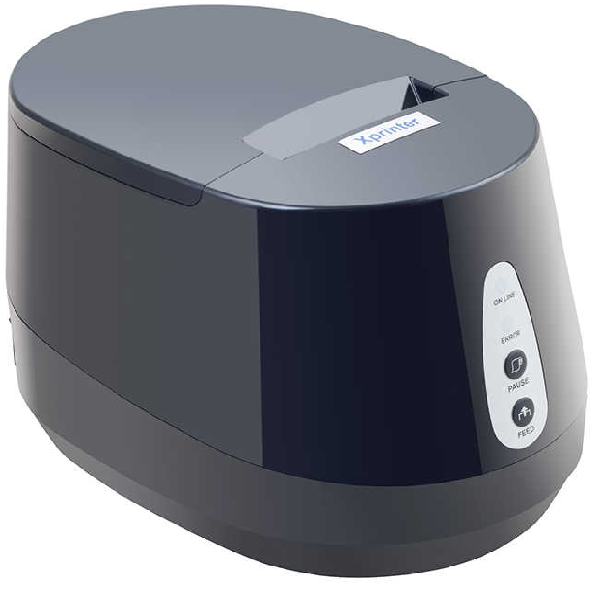

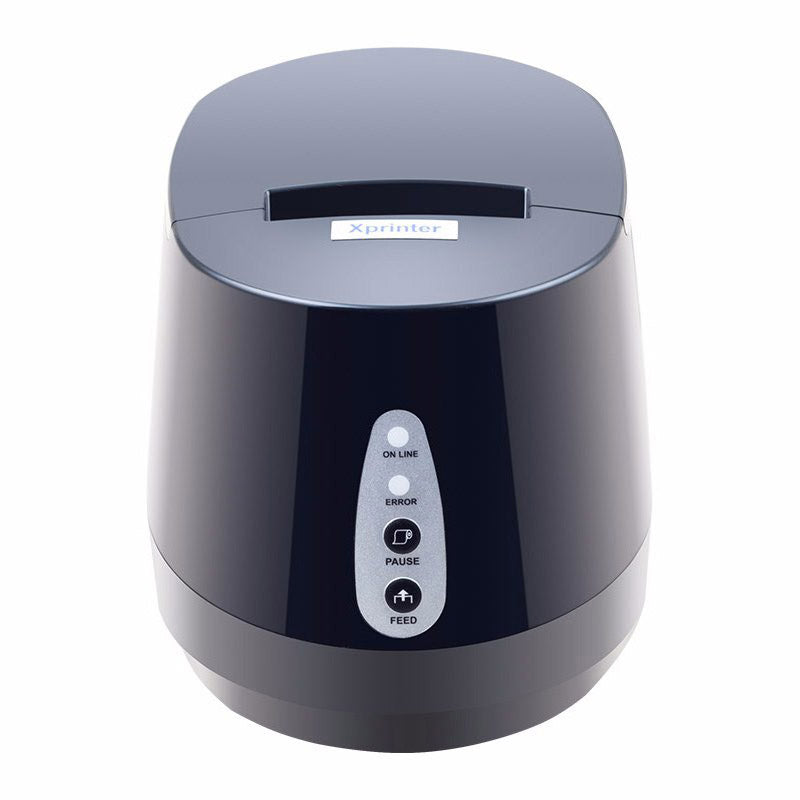

Printer XP-237B

Printer XP-237B

LE 0.00 EGP
LE 0.00 EGP
Sale Sold out

Model:

XP-237B

Mode:

Label print mode

Receipt print mode

Printing Features:
Resolution :- 203 DPI
Printing method :- Direct Thermal
Max.print speed :-

50.8~101 mm/s

90 mm/s Max.
Max.print width :-

48 mm

 48 mm
Max.print length :-

Max. 105 mm

 /

Media:
Media type :-

Thermal paper/Thermal stickers paper

Thermal paper
Media width :-

20~60 mm

 58 mm
Media thickness :-

0.06 ~ 0.08 mm
Media roll                 diameter :-

Max.80 mm
Supply method :-

Easy Paper Loading

Performance Features:
DRAM :-

256 Kbytes
NV flash :- 576 Kbytes
Interfaces :-

USB
Sensors :-

Paper End/ Cover Open/ Gap

Paper End/ Cover Open
Drawer port :-

1 ports (Pin 2 for cashdrawer)

Fonts/Graphics/Symbologies:

Character sizes :-

Font 0 to Font8

Font A: 12x24,
Font B: 9x17,
CHN: 24*24
1D barcode :-

CODE128、EAN128、ITF、CODE39、CODE39C、CODE39S、CODE93、EAN13、EAN13+2、EAN13+5、EAN8、EAN8+2、EAN8+5、CODABAR、POSTNET、UPC-A、UPCA+2、UPCA+5、UPCE、UPCE+2、UPCE+5、MSI、MSIC、PLESSEY、ITF14、EAN14

Coda Bar, Code 39, Code 93, Code 128, EAN-8, EAN-13, ITF, UPC-A, UPC-E
2D bar code :- QR code

QR code
Emulaion :-

TSPL

 ESC/POS

Physical Features:
Dimension :- 190.3 x 133.8 x 127mm (D*W*H)
Weight :- 0.71 kg

Reliability :-
Print head life :- 50 km

Software:

Driver :-

Windows

Windows/ Linux/ Mac/ Android
SDK :-

iOS/ Android/ Windows

Power supply:
Power Adaptor :-

100-240V 50/60H
Output :-

 DC 9V/2A

Environmental Conditions:

Operation          environment :-

0~45 ℃ Humidity:RH  10 ~ 80%
Storage              environment :-

-10 ~ 60℃ Humidity:10 ~ 90%

 PRODUCT WARRANTY : 1YEAR

Printer XP-237B -Pdf
