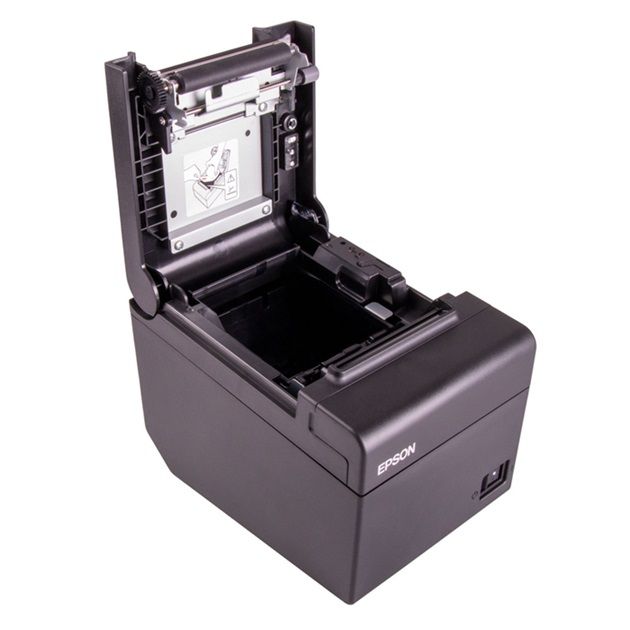

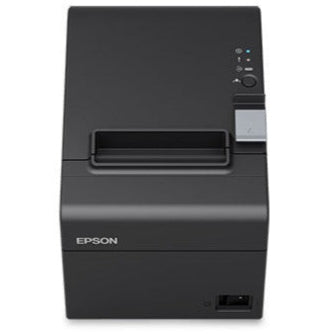

TM-T20 III USB

TM-T20 III USB

Call Us For Price: 01093596600

Print Other:

Printing Technology: Thermal line printing
 Print Speed: Max. 250 mm/sec (9.84"/sec)

General:

Dimensions: 5.51" x 7.83" x 5.75" (140 mm x 199 mm x 146 mm) (W x D x H) Weight: 3.75 lb. (1.7 kg)
Safety Approvals:
    • EMI Standards: FCC/ICES-003 Class A/NMB-3 (A)
    • Safety Standards: UL60950-1/CSA C22.2 No.60950-1
Case Color:
    • Epson Black

Print Fonts:

Column Capacity: Standard:
  • Paper width 80 mm: 48/64 columns
  • Paper width 58 mm: 35/46 columns
42-column Mode:
  • Paper width 80 mm: 42/60 columns
  • Paper width 58 mm: 42/31 columns
  • Character Size: (W x H) 0.08 x 2.13
Character Size: 0.08 x 2.13 mm and 1.25 x 3.00 mm
Fonts: 9 x 17 and 12 x 24 dots/character (W x H)
Character Set: 95 Alphanumeric, 18 International, 128 x 43 Graphic
Characters per Inch: 22.6 and 16.9 cpi
Barcode: UPC-A/E, JAN 13 (EAN 13), JAN 8 (EAN), Code 39/93/128, CODABAR (NW-7) QR-CODE, MaxiCode, PDF417, Composite Symbology, GS1-128, GS1 DataBar, 2DGS1 DataBar, ITF, Datamatrix, Aztec

Media Handling:

Media Dimensions:
  • 80 mm: 79.5 ± 0.5 x 83 mm
  • 3.13" ± 0.02" (width) x 3.27" (roll diameter)
  • 58 mm: 57.5 ± 0.5 x 83 mm
  • 2.26" ± 0.02" (width) x 3.27" (roll diameter)
  • Thickness: 48 – 80 μm

Connectivity:

Standard Connectivity:
  • Built-in USB
Printing from a Mobile Device:
  • Supported (mobile) operating systems: Wireless (802.11), iOS, Android and Windows® operating systems
  • Epson ePOS Technology: Supports ePOS service for direct printing from mobile devices or web-based applications

POS Details:

Reliability:
    • MTBF: 360,000 hours1
    • MCBF: 60,000,000 lines1
    • Auto cutter: 1.5 million cuts1
D.K.D.:
    • 2 drivers
Software Included:
      • Drivers and tool software for PC POS (APD, OPOS™, JavaPOS™, OPOS NET™)
      • TM Virtual port driver
      • Linux® Cups driver
      • macOS®
      • OS X®
      • Driver
      • TM-T20III utility
      • Deployment tool
      • Monitoring tool
      • Epson Net Config (Windows, Mac®)
      • ePOS SDK
Options:
    • External buzzer unit (0T-BZ20)
    • Horizontal/vertical on counter/vertical on wall with wall hanging bracket

Power:

Power Supply Voltage: 24 VDC ± 7%
Power Consumption:
  • Operating: Approx. 29.5 W
  • Standby: Approx. 0.80 W
Power Source: 100 24 VDC ± 7%, 50/60 Hz, External (AC cable included)
