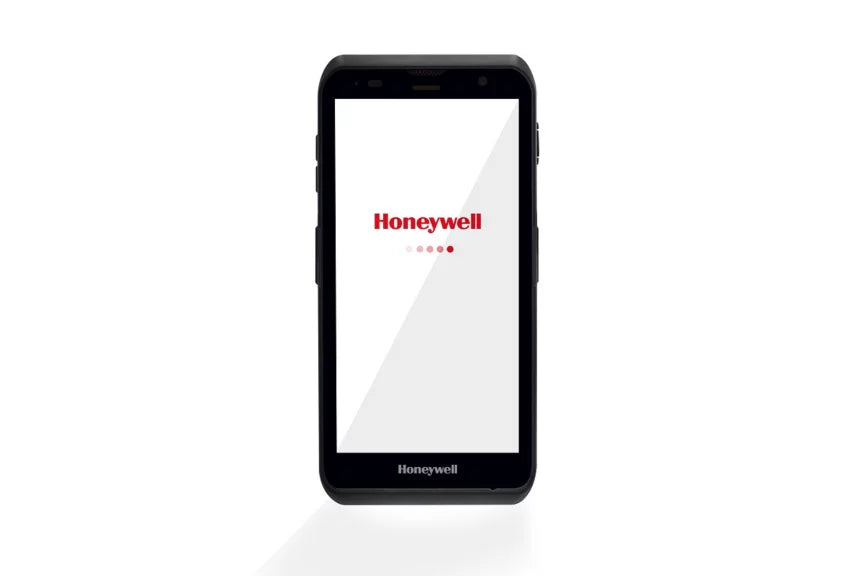

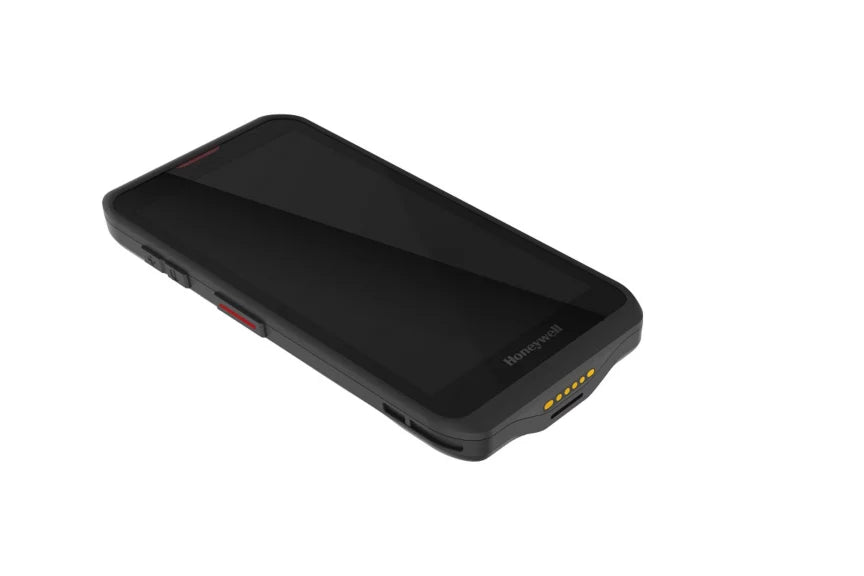

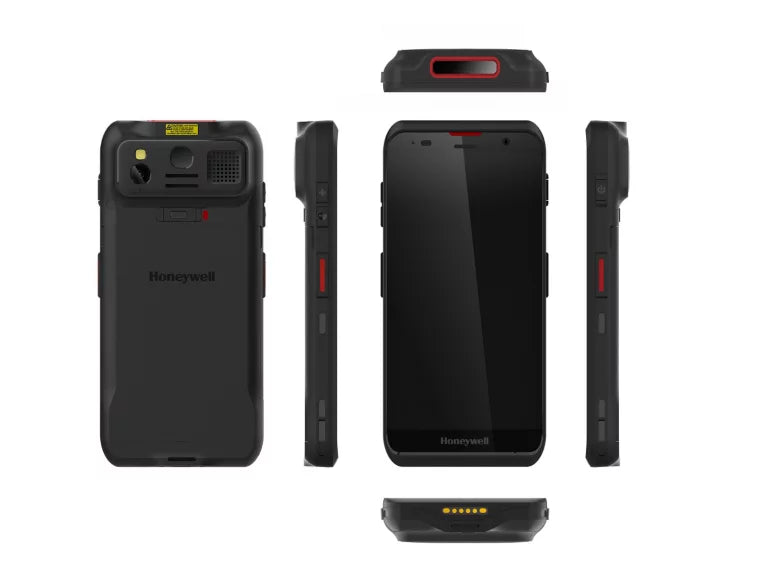

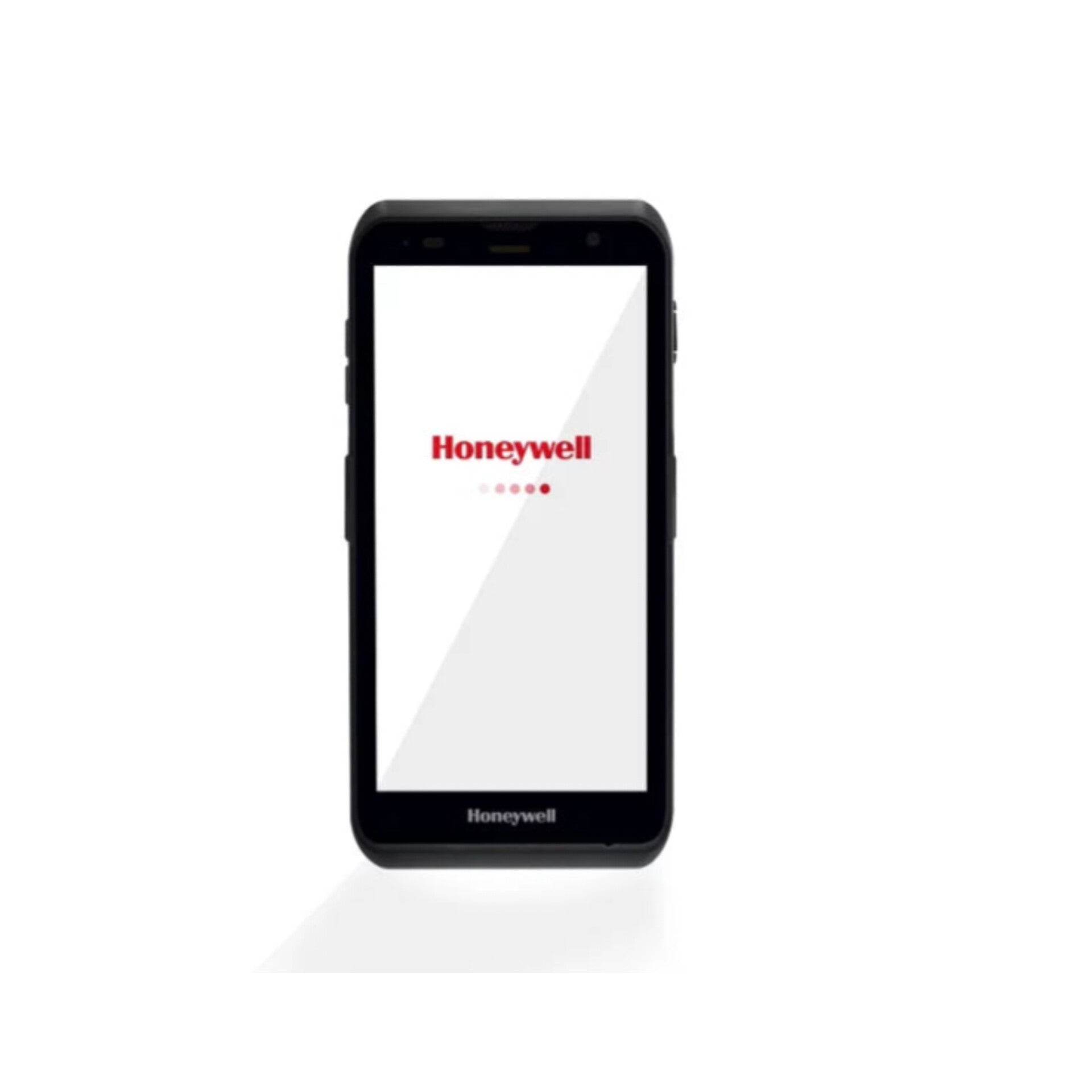

Honeywell Mobile Handheld Scanpal_EDA52

Features:

Camera:
  • Front: 5-megapixed color camera
  • Rear: 13 - megapixel color camera
Application:
  • Retail, transportation & logistics, manufacturing, healthcare, and public service
Camera Position:
  • Front and Rear

Dimensions:

Overall Dimensions:
  • 159mm x 75 mm x 14.4 mm (6.26 in x 2.95 in x 0.57 in)

Scanning Specifications:

Decode Capability:
  • Honeywell S0703 Slim Imager (1D/2D barcode symbologies)

Network:

Bluetooth Specifications:
  • Bluetooth Class 5.1
WWAN Specifications:
  • FDD-LTE: Bands 1, 2, 3, 4, 5, 7, 8, 9, 12,13,17,19,20,25,26,28,30,66
  • GSM/EDGE: Bands 2, 3, 5, 8
  • TDD-LTE: Bands 38, 39, 40, 41
  • UMTS/HSPA+: Bands 1, 2, 4, 5, 6,8, 9, 19
WLAN Specifications:
  • Additional WLAN Features: 802.11 d/e/h/i/k/ r/u/w
  • Security: OPEN, WEP, WPA/WPA2 (Personal and Enterprise WPA2), WPA3 (OWE, SAE, Enterprise)
  • WLAN (Wi-Fi Alliance certified): 802.11 a/b/g/n/ac
  • WLAN Supported EAP: TLS, PEAP, TTLS, PWD, LEAP
GPS Specifications:
  • GPS (WWAN only) Supported Protocols: Simultaneous receiver support for GPS, GLONASS, and BeiDou

Software & Firmware:

Operating System:
  • Android 11, and upgradeable to Android 13 (Android 13 is pending for the confirmation from Qualcomm & Google)

Memory & Data:

Memory:
  • Storage Expansion: MicroSD (up to 128 GB)

Hardware:

Display Resolution:
  • 1440 x 720 High Definition
Scan Engine Model:
  • Honeywell S0703 Slim Imager (1D/2D barcode symbologies)
Display Size:
  • Gorilla Glass 5, 5.5-inch
Processor:
  • Qualcomm Snapdragon SM6115, Quad high-performance Kryo cores 2.0 GHz +Quad low-power Kryo cores 1.8 GHz

Electrical:

Battery Capacity:
  • 3.8 V, 4,500 mAh, removable
Battery Types:
  • Honeywell
Battery Type:
  • Li-Ion

Environmental:

Operating Temperature:
  • -20°C to +50°C (-4°F to +122°F)
Operating Humidity:
  • 5% to 90% (non-condensing)

Standards & Approvals:

Tumble Specifications:
  • 550 times at 0.5 m (1.64 ft)
Drop Specifications:
  • Multiple 1.3m (4.3ft) per MIL-STD 810G drops to concrete at room temperature
  • Multiple 1.5m (5ft) per MIL-STD 810G drops with rubber boot concrete at room temperature

Others:

Scan Distance:
  • Standard Range (0-1m)
Connectivity:
  • Wi-Fi
  • Wi-Fi & Cellular
Environment:
  • Healthcare
  • Standard
Durability:
  • Electrostatic Discharge (ESD): ±8 kV direct; ±15 kV air
  • Environmental Sealing: IP67
Keypad:
  • Full Touchscreen
