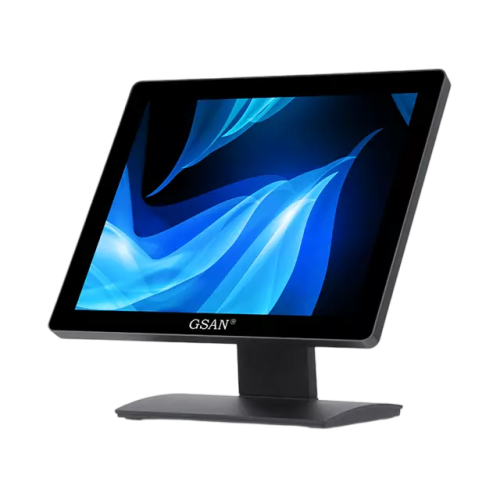

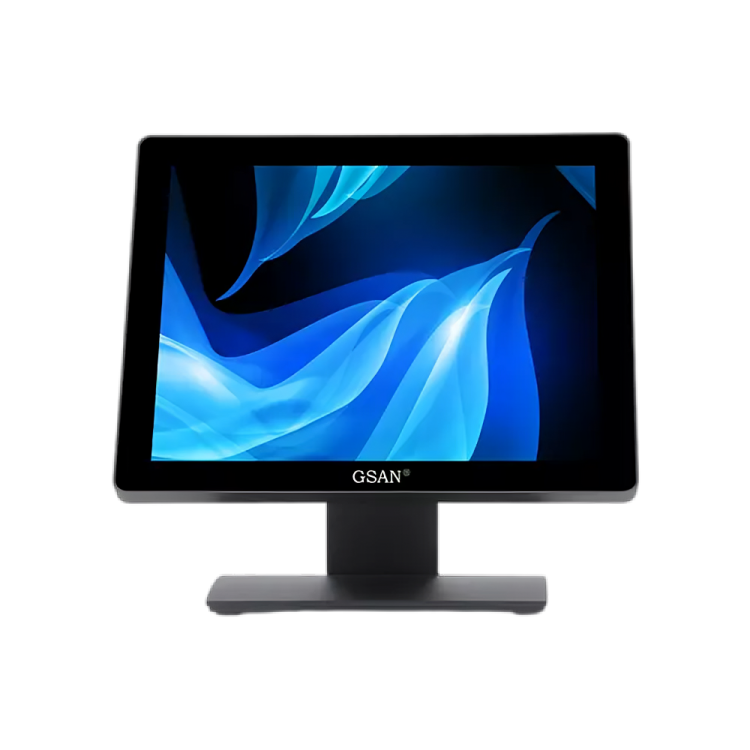

Gsan 17 inch Touch Screen

LCD Panel Type

17  TFT LCD panel (optional)

Max. Resolution

1280(horizontal)*1024(vertical)*GA

Body size

380*(W)*355(H)*58(D)mm

Contrast

400:1

Brightness

400CD/㎡

Response Time

8MS

Viewing Angle    left/right

+80°～-80° or +60°～-60°

Viewing Angle    up/down

+80°～-80° or +55°～-65

Enter message  Visual message

RGB analog 0.7V p-p

Synchronization

TTL Anode or Cathode

Display Mode

VGA,SVGA,XGA

Signal Connector

15-hole mini D-Block

Front Panel control buttons

Power control switch, LED indicator, OSO menu,

+/ adjustment button, screen automatically set, OSO choose.

OSD Adjustment

Contrast, brightness, auto adjust, image-bit quasi, phase,

Horizontal position, vertical position , enter message,

Computer VGA

Power Transformer

AC:100-240V～1.8A 50-60Hz

DC: 12V/2.5A

Operating Environment

Temperature:0-50℃, Humidity 20-81-0%

Storage Environment

Temperature:-20-60℃, Humidity 20-81-0%
