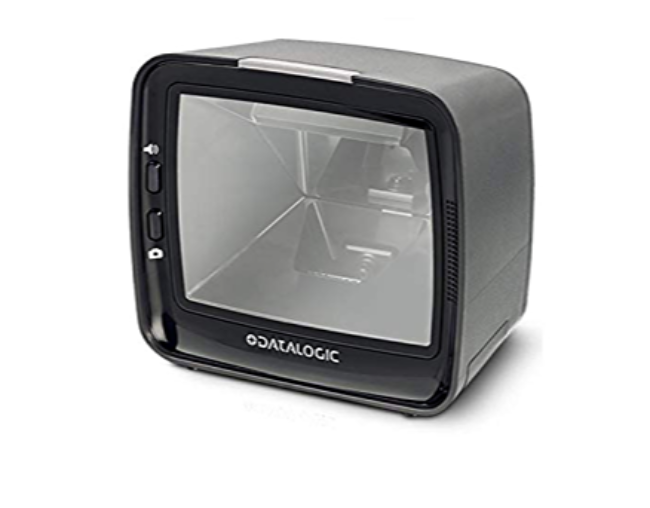

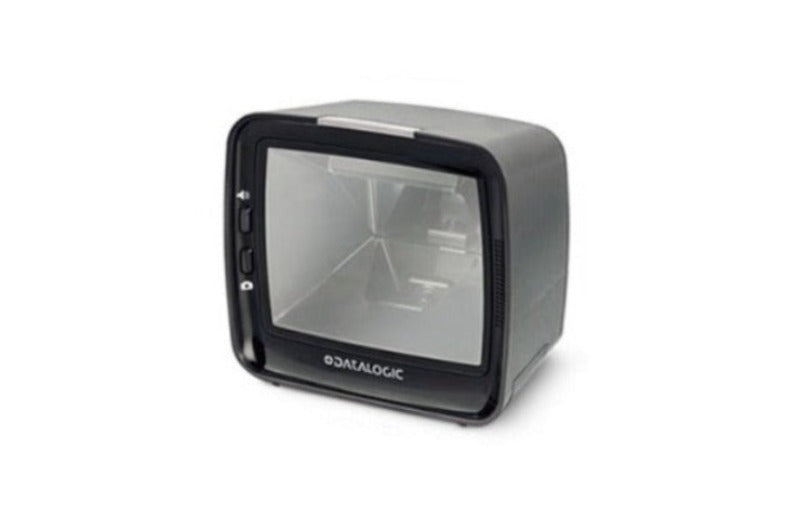

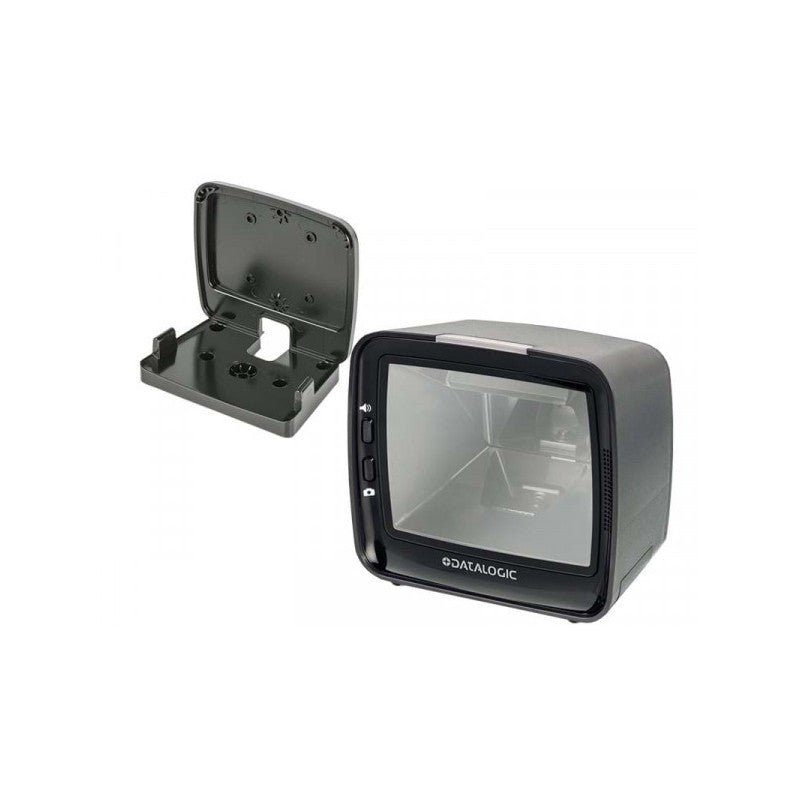

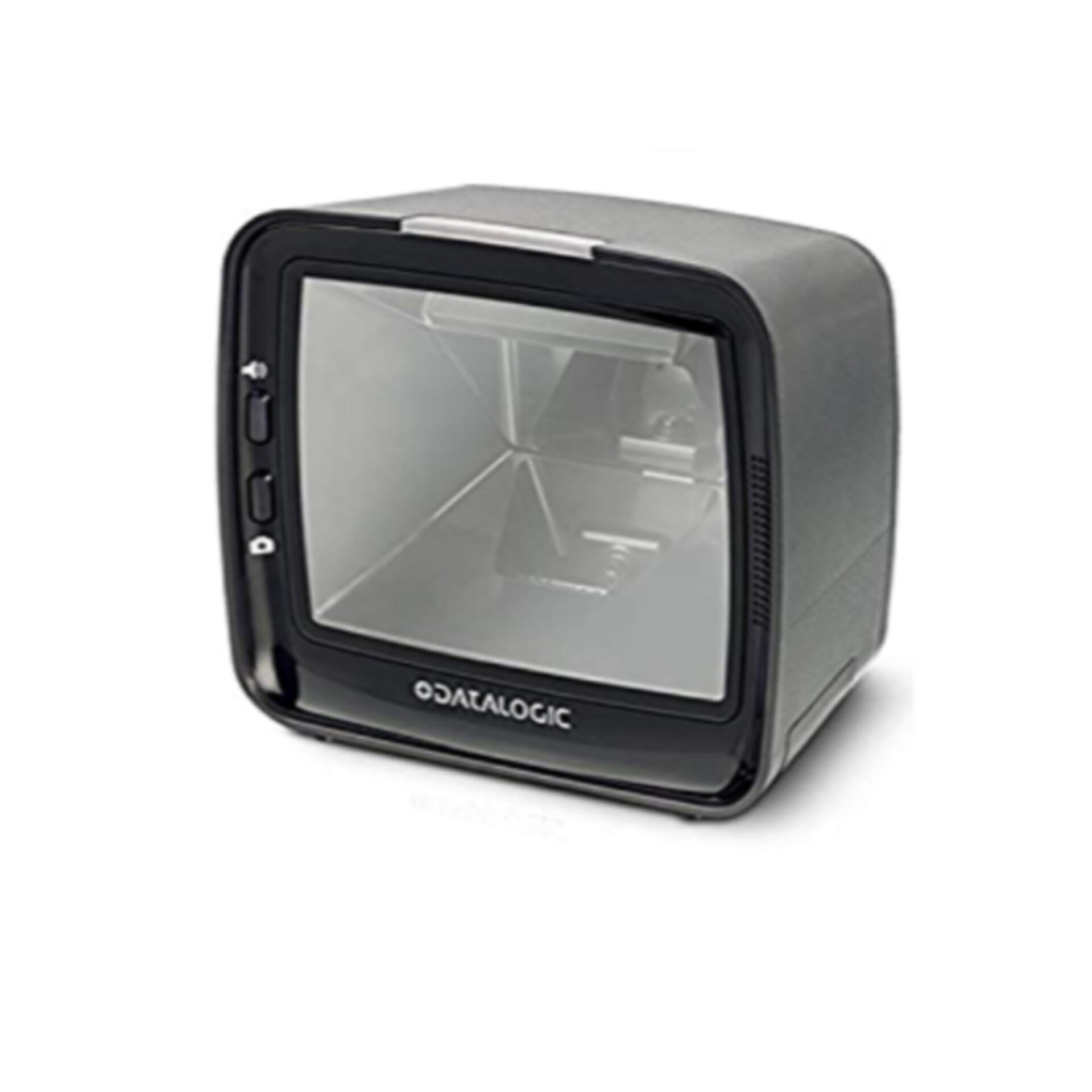

Datalogic Magellan 3450VSi Barcode Scanner

Datalogic Magellan 3450VSi Barcode Scanner

TECHNICAL SPECIFICATIONS:

DECODING CAPABILITY:-

1D / Linear Codes: Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes.
2D Codes: Aztec Code, Data Matrix, QR Code Postal Codes Australian Post; British Post; Canadian Post; China Post; IMB; Japanese Post; KIX Post; Planet Code; Portuguese Post; Postnet; Royal Mail Code (RM4SCC); Swedish Post
Stacked Codes: GS1 DataBar Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; Micro PDF417, PDF417

Digital Watermarks: Optional support for Digimarc® Barcodes / GS1 DW Code

ELECTRICAL:-

Power Requirements AC Input: 100-240 VAC, 50-60 Hz DC Input: 5-12 V
Power Consumption: Operating (Maximum): 3.8 Watts;
Operating (Nominal): 3.6 Watts
Sleep Mode: 3.0 Watts

INTERFACES:-

Interfaces: OEM (IBM) USB; RS-232; USB Keyboard, USB Com
Auxiliary Ports: Powered Type A USB (USB Com)

OPTIONAL FEATURES:-

Dimensions Magellan Model 3450VSi: 13.7 x 15.2 x 9.4 cm / 5.4 x 6.0 x 3.7 in
Weight: 0.6 kg /1.3 lb

READING PERFORMANCE:-

Image Capture: Graphic Formats: BMP, JPEG
Image Sensor:1280 x 1024
LIGHT SOURCE: Multiple diffused LEDs, orientation and wavelength optimized for eye comfort
Print Contrast Ratio (Minimum): 25%
Read Height: 14.0 cm / 5.5 in
Read Rate: (Maximum): 39 Million pixels per second
Reading Angle Pitch: +/- 65°; Roll (Tilt): 0 - 360°; Skew (Yaw): +/- 75°
Reading Indicators: Audio speaker with adjustable tone and volume, supports .wav files; Good Read LED; Good Transmission
Resolution (Maximum): 5 mil

READING RANGES:-

Typical Depth of Field: Printing resolution, symbol length, scan angle, contrast and ambient light dependent.
1D / Linear Codes
5 mils: 3.8 to 8.1 cm / 1.5 to 3.2 in
7.5 mils: 1.3 to 11.4 cm / 0.5 to 4.5 in
10 mils: 0 to 15.2 cm / 0 to 6.0 in
13 mils: 0 to 20.3 cm / 0 to 8.0 in
2D Codes
6.6 mils: PDF: 3.8 to 10.2 cm / 1.5 to 4.0 in
10 mils: PDF: 0 to 12.7 cm / 0 to 5.0 in
10 mils: Data Matrix: 1.3 to 6.4 cm / 0.5 to 2.5 in
20 mils: Data Matrix: 0 to 18.0 cm / 0 to 7.0 in

PRODUCT WARRANTY: 1YEAR
