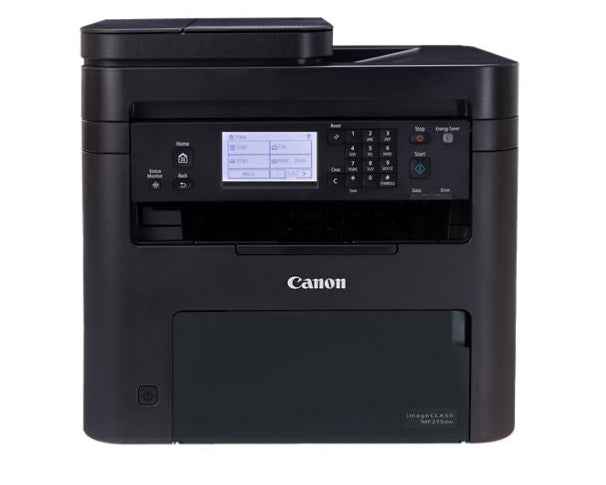

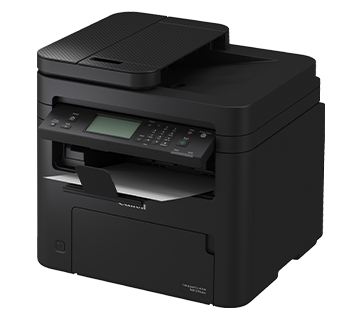

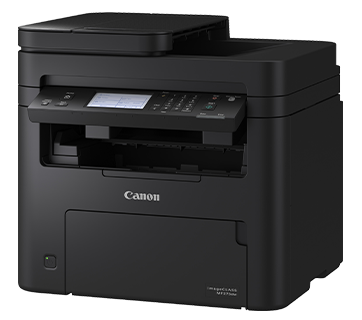

Canon MF275 dw

General Specifications:-

• Machine Type:

  Monochrome laser

• Available Functions:

  Print, copy, scan, fax

Print Specifications:-

• Print Speed:

  Single sided: Up to 29 ppm (A4)
  Double sided: Up to 18.5 ipm (A4)

• Printing Method:

  Monochrome laser beam printing

• Print Resolution:

  Up to 2400 equivalent x 600 dpi

• Warm-up Time:

  Approx. 7.5 seconds or less from power on

• First-Print-Out Time:

  Approx: 5.4 seconds or less (400dpi)
  Approx: 7.1 seconds or less (600dpi)

• Printer Languages:

  UFRII

• Print Margins:

  5 mm-top, bottom, left and right

• Toner Saver Mode:

  Yes

• Advanced Printing Features:

  iOS: AirPrint, Canon PRINT Business app
  Android; Mopria certified, Canon Print Service Plug-in, Canon PRINT Business app
  Microsoft Universal Print support

Copy Specifications:-

• Copy Speed:

  Single sided: Up to 29 ppm (A4)
  Double sided: Up to 18.5 ipm (A4)

• First-Copy-Out Time:

  ADF (A4):
  8.9 seconds or less
  Platen (A4):
  7.6 seconds or less

• Copy Resolution:

  Up to 600 x 600 dpi

• Copy Modes:

  Text/Photo, Text/Photo (High speed), Photo, Text

• Double Sided Copying:

  1-sided to 2-sided (Automatic)

• Multiple Copies:

  Up to 999 copies

• Reduction / Enlargement:

  25-400% in 1% increments

• Other Features:

  Collate Copies, 2 on 1, 4 on 1, ID card copy, Passport copy

Scan Specifications:-

• Standard Type:

  Colour

• Scan Resolution:

  Optical: Up to 600 x 600 dpi
  Enhanced: Up to 9600 x 9600 dpi

• Scan Speed:

  Platen:
  Single sided mono: 2.7 sec/page (300x600dpi)
  Single sided colour: 3.5 sec/page (300x300dpi)
  ADF:
  Single sided mono: 20ipm (300x600dpi)
  Single sided colour: 15ipm (300x300dpi)

• Colour Scanning Depth:

  24 bit/24 bit (input/output)

• Greyscales:

  256 levels

• Compatibility:

  TWAIN , WIA

• Maximum Scan Width:

  216mm

• Scan to PC:

  JPEG (single page only)

• Scan to Cloud:

  TIFF/JPEG/PDF/PNG

Fax Specifications:-

• Modem Speed:

  33.6 Kbps (Up to 3 seconds/page)

• Receive Mode:

  Fax only, Fax/Tel Auto Switch, Answer Mode, Manual

• Fax Resolution:

  Normal: 200 x 100 dpi
  Fine: 200 x 200 dpi
  Photo: 200 x 200 dpi
  Super fine: 200 x 400 dpi

• Fax Memory:

  Up to 256 pages

• Speed Dials:

  Up to 104 dials

• Group Dials/Destinations:

  Max. 50 destinations in one group

• Sequential Broadcast:

  Max. 114 destinations

• Memory Backup:

  Permanent fax memory backup (Backup with flash memory)

• Double Sided Faxing:

  Yes (Transmit and Receive)

• Other Features:

  Sender's Name (TTI), Direct Send, TX Report, Sequential Broadcasting

Media Handling:-

• Scanner Type:

  Flatbed and Automatic Document Feeder (ADF)

• Paper Input (Standard):

  150-sheet cassette
  1-sheet multi-purpose tray
  35-sheet ADF

• Maximum Paper Input Capacity:

  186 sheets
  Paper Output
  50-sheet

• Media Types:

  Plain paper, Recycled paper, Heavy Paper, Thin paper, Bond paper, Label, Post card, Envelope

• Media Sizes:

  Cassette:
  A4, A5, B5, A6, Legal, Letter, Executive, Statement, OFFICIO, B-OFFICIO, M-OFFICIO, GLTR, GLGL, Foolscap, 16K, Envelop (COM10, Monarch,  DL, C5), Custom sizes: Min. 76.0 x 127 mm  Max. 216.0 x 356.0 mm
  ADF:
  A4, A5, A6^*, B5, B6, Legal, Letter, Custom sizes: Min. 105 x 148 mm  Max 216 x 356 mm
  *Attachement required

• Media Weights:

  Cassette: 60 to 163 g/m²
  ADF: 105 to 128 g/m² (Single sheet)
          50 to 105 g/m² (Multiple sheet)

• Double Sided Printing:

  Automatic
  A4, Legal, Letter, OFFICIO, B-OFFICIO, M-OFFICIO, Foolscap
  Custom size - Min. 210 x 279 mm Max. 216 x 356 mm
  60 to 105 g/m²

Interface & Software:-

• Interface Type:

  USB 2.0 Hi-Speed, 10BASE-T/100BASE-TX, Wireless 802.11b/g/n, Wireless Direct Connection

• Operating System Compatibility:

  Windows® 11 / Windows® 10 / Windows® 8.1 / Server® 2022 / Server® 2019 / Server® 2016 / Server® 2012R2 / Server® 2012
  Mac OS X version 10.12 & up
  Linux

• Network Protocol:

  Print:
       TCP/IP (LPD/Port9100/WSD)
  Pull Scan: TCP/IP, USB
  Management:
     SNMPv1, SNMPv3 (IPv4,IPv6)
  Security:
  TLS1.3, IP address filtering, IEEE802.1X, SNMPv3, SSL (HTTPS, IPPS)
  Security (wireless): IEEE802.1x
  Infrastructure Mode:
  WEP(64/128 bit), WPA-PSK(TKIP/AES), WPA2-PSK(TKIP/AES), WPA-EAP(AES), WPA2-EAP(AES)
  Access Point Mode:
  WPA2-PSK(AES)

• Software and Printer Management:

  MF Scan Utility, Remote User Interface (RUI), Toner Status Tool

Software & Printer Management:-

• Tracking & Reporting:

  MF Scan Utility, Remote User Interface (RUI), Toner Status Tool

General Features:-

• Recommended Monthly Print Volume:

  150 - 2,000 pages per month

• Duty Cycle:

  Max. 20,000 pages per month4

• Processor Speed:

  1200MHz

• Memory:

  256MB

• Dimensions with Trays (W x D x H):

  6-line LCD B&W Touch Screen

• Installation Space (W x D x H):

  390 mm x 374 mm x 368 mm

• Weight:

  Approx. 11.4 Kg

• Operating Environment:

  Temperature: 10 to 30ºC (50 to 86ºF)
  Humidity: 20 to 80% RH (no condensation)

• Power Source:

  220-240V(±10%) 50/60Hz (±2Hz)

• Power Consumption:

  Maximum: Approx. 1300 W
  Active printing: Approx. 530W
  Standby: Approx. 4.8 W
  Sleep mode: Approx. 1.0 W
  Typical Electricity Consumption (TEC): 0.23 kWh/week
  For detailed information relating to Lot26 regulation, please go to: http://www.canon-europe.com/For_Work/Lot26/index.aspx

• Noise Levels:

  Sound Pressure:
  Active: Simplex 50 dB
              Duplex 51 dB
  Standby: Inaudible
  Sound Power:
  Active:  69.3 dB or less
  Standby: N/A

Consumables:-

• Cartridges:

  Cartridge 071 (1,200 pages)
  Cartridge 071H (2,500 pages)

Accessories & Options:-

• Items:

  TEL 6 KIT (Telephone handset)
