Bixolon XD3
Bixolon XD3
Bixolon XD3
Bixolon

Bixolon XD3

Regular price LE 3,850.00 LE 0.00 Unit price per
Print Characteristics
Print Method Thermal Transfer or Direct Thermal
Print Speed Up to 5 ips (127 mm/sec)
Print Resolution 203 dpi
Print Width Up to 104 mm
Print Length Up to 1,000 mm
Sensor Transmissive(Fixed), Reflective(Adjustable), Head Open, Ribbon-End (XD3-40t only)
Media Characteristics
Media Type Gap, Black Mark, Notch, Continuous, Fan-Fold
Media Width 15~118mm
Media Roll Diameter Up to 127mm
Media Thickness 0.06 ~ 0.20 mm
Supply Method Easy Paper Loading
Inner Core 25.4 ~ 38.1mm

Core Inner Diameter 25.4 mm, 12.7 mm
Physical Characteristics
Dimensions (WxDxH) "XD3-40d: 181 x 222 x 168 mm (7.13 x 8.74 x 6.62 inch)XD3-40t: 210 x 284 x 186 mm (8.3 x 11.2 x 7.3 inch)"
Weight "XD3-40d: 1.7kg (3.75 lbs.)XD3-40t: 2.6kg (5.73 Ibs.)"
Electrical EnergyStar Certified,External Power Adaptor 100-240V AC, 50/60Hz
Display
Camera
Performance Characteristics
Memory 64 MB SDRAM, 128 MB Flash

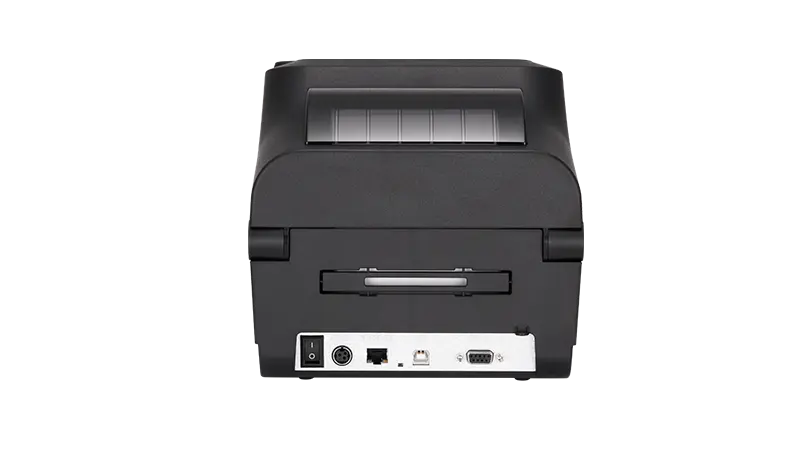

Interface "Standard: USBOptional: USB + Serial + Ethernet"
Real Time Clock Not Supported
Environment Characteristics
Temperature "Operating:XD3-40d: 0 ~ 40℃ (32 ~ 104℉)XD3-40t: 5 ~ 40℃ (41 ~ 104℉) Storage: -20 ~ 60℃ (-4 ~ 140℉)"
Humidity "Operating: 10 ~ 80% RHStorage 10 ~ 90% RH"
Reliability
Thermal Print Head (TPH)
Auto Cutter
Platen Roller
Software
Emulation SLCS™, BPL-Z™ (ZPLII), BPL-E™ (EPL)
Driver/Utility "Windows Driver (Europlus/Seagull)Linux/Mac CUPS DriverVirtual COM USB/Ethernet DriverUtility ProgramOPOS DriverBartender Ultralite for BIXOLONLabel Artist-II™"
SDK/Plugin "Windows SDKLinux SDK"
Application
MDM(Optional)
Fonts/Graphics/Symbologies
Fonts Bitmap Fonts (SLCS , BPL-Z, BPL-E) / Scalable Fonts (SLCS, BPL-Z) / Unicode supported (UTF-8, UTF-16LE, UTF-16BE)
Graphics Supporting user-defined fonts, graphics, formats and logos
Barcode Symbologies "1D: Codabar, Code 11, Code 39, Code 93, Code 128, EAN-13, EAN-8, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Plessey, Postnet, GS1 DataBar (RSS-14), Standard 2-of-5, UPC/EAN extensions, UPC-A, UPC-E, IMB2D: Aztec, Codablock, Code49, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR Code, TLC39 "
Accessories
Standard USB cable
Optional Peeler,External Paper Supply, Serial cable
