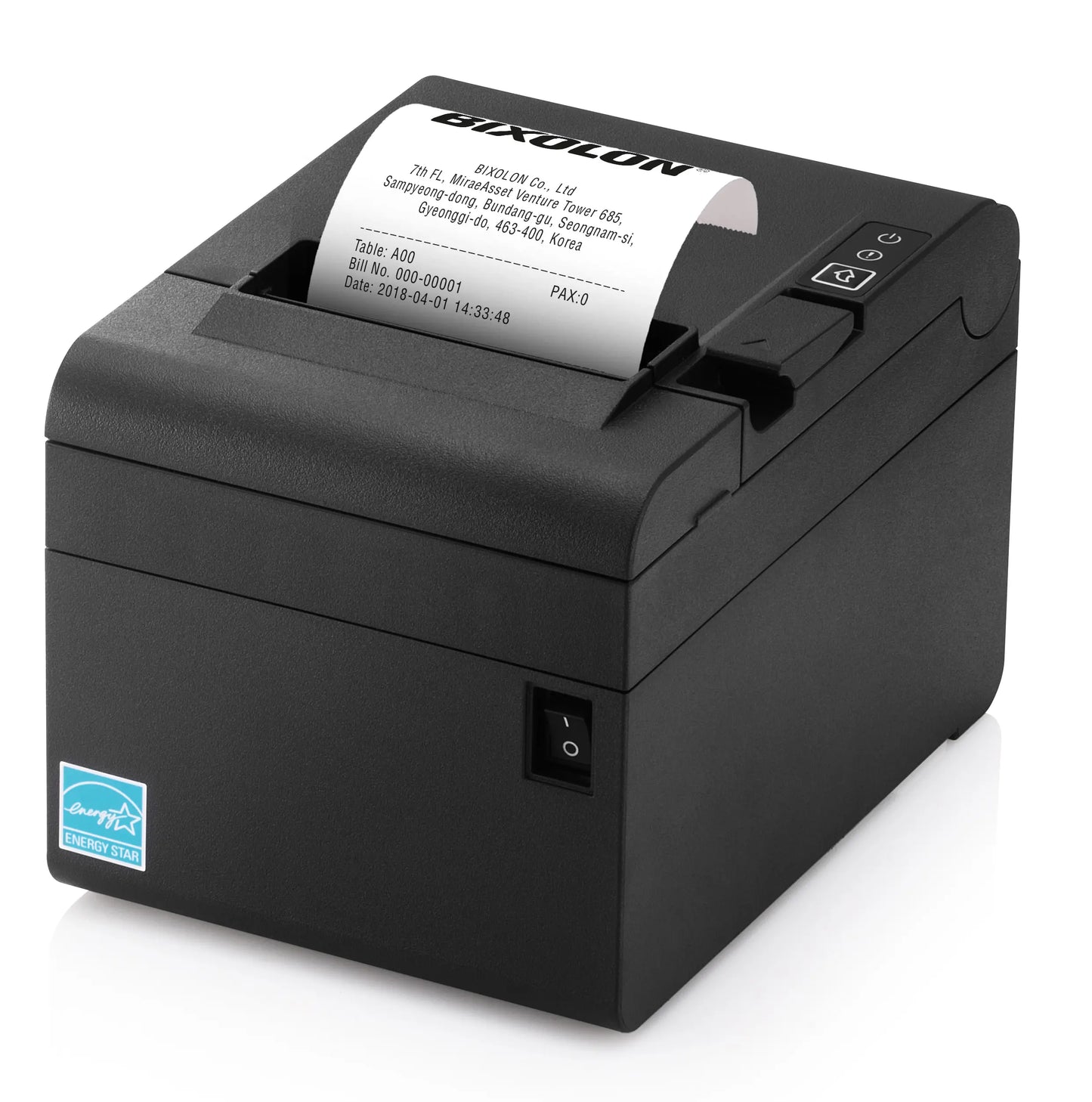

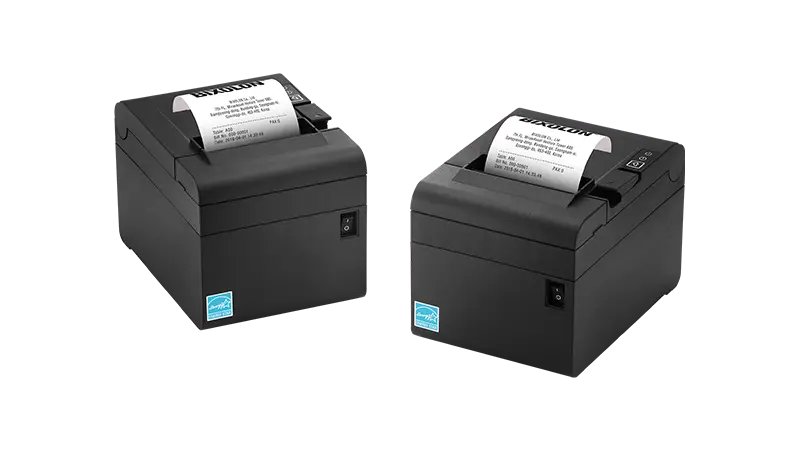

BIXOLON SRP-E300 USB

BIXOLON SRP-E300 USB

Regular price LE 6,800.00 EGP
Regular price Sale price LE 6,800.00 EGP
Sale Sold out

Specifications

Print Characteristics
Print Method Direct Thermal (Top / Front Exit)
Print Speed SRP-E300 : 180dpi
Print Resolution 220 mm/sec
Print Width Up to 72mm
Sensor Paper End
Media Characteristics
Media Type Receipt
Media Width 80 mm
Media Roll Diameter Up to 83 mm
Media Thickness 0.062 ~ 0.075 mm
Supply Method Easy Paper Loading
Physical Characteristics
"Dimensions(WxDxH)" 132 x 182.4 x 128.5 mm (5.19 x 7.18 x 5.05 inch)
Weight 1.23kg (2.71 lbs)
Electrical EnergyStar Certified, External Power Adaptor 100-240V AV, 50/60Hz
Drawer Port 2 ports (Via y-type adaptor)
Performance Characteristics
Memory -
NV Image Memory 768 Kbytes (Mono)
Receive Buffer 4 Kbytes
User Define Buffer 12 Kbytes
Interface ① USB V2.0 FS
Environment Characteristics
Temperature "Operating: 0 ~ 40℃ (32 ~ 104℉)Storage: -20 ~ 60℃ (-4 ~ 140℉)"
Humidity "Operating: 10 ~ 80% RHStorage 10 ~ 90% RH"
Reliability
Thermal Print Head (TPH) 150 km
Auto Cutter 1.5 Million Cuts
*** Specified Paper - TF50KS-E (Paper thickness: 65μm) : Nippon Paper industries Co., Ltd. - PD 150R (Paper thickness: 75μm) : New Oji Paper Mfg, Co., Ltd - PD 160R (Paper thickness: 75μm) : New Oji Paper Mfg, Co., Ltd. - P350 (Paper thickness: 62μm) : Kansaki Specialty Paper, Inc. (USA)
Software
Emulation BXL / POS
Driver/Utility Windows Driver, OPOS Driver, JPOS Driver, CUPS Driver(Linux/Mac), Virtual COM USB Driver, Utility Program
SDK/Plugin iOS SDK, Android SDK, Windows SDK, Linux SDK, Xamarin SDK, Chrome Plugin, Cordova Plugin
Application -
MDM(Optional) -
Fonts/Graphics/Symbologies
Character Size Font A: 12 x 24 Font B: 9 x 17 Font C: 9 x 24 KOR, CHN, JPN: 24 x 24
Characters Per Line SRP-E300: Font A: 42 Font B, C: 56 KOR, CHN, JPN: 21 SRP-E302: Font A: 48 Font B, C: 64 KOR, CHN, JPN: 24
Character Sets Alphanumeric: 95 Extended Graphics: 128 x 35 page International: 32
Graphics Supporting user-defined fonts, graphics, formats, and logos
Barcode Symbologies 1D: Coda Bar, Code39, Code93, Code128, EAN-8, EAN-13, ITF, UPC-A, UPC-E 2D: Data Matrix, PDF417, QR Code
Accessories
Standard USB A-B Cable
