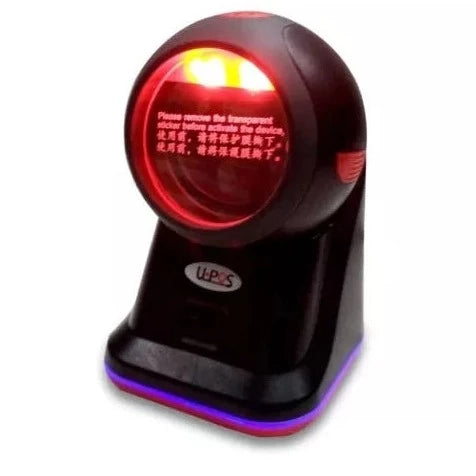

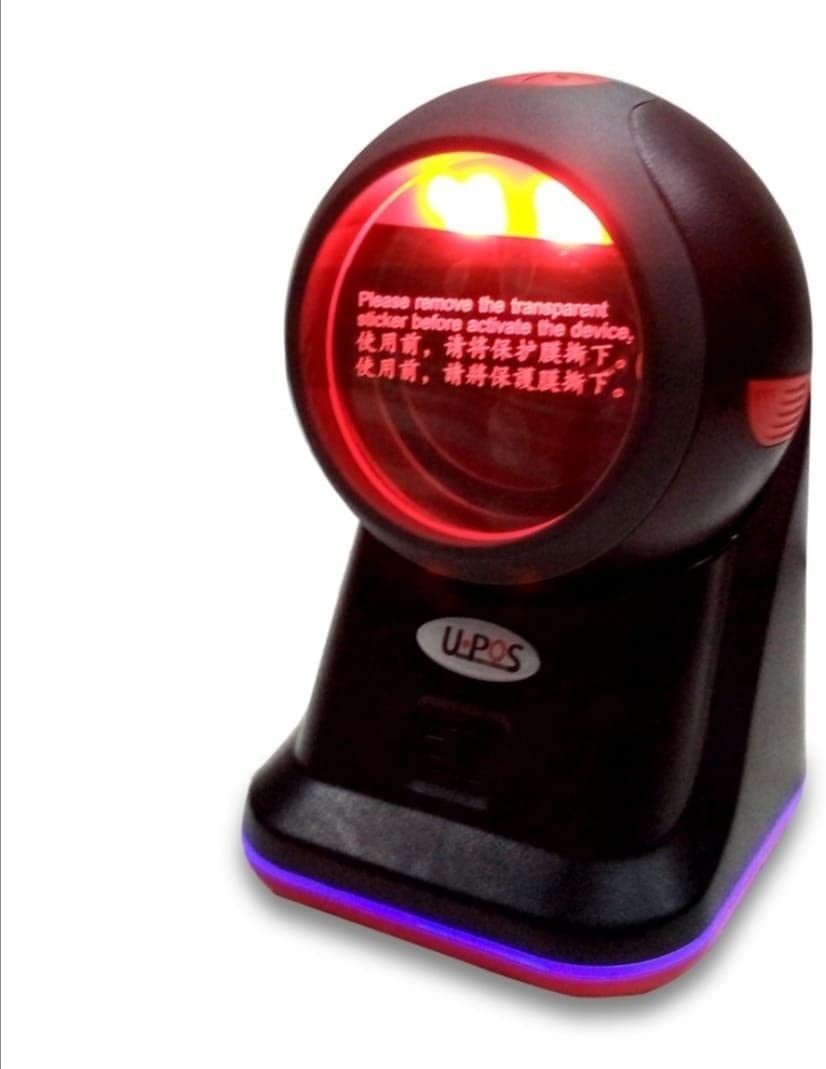

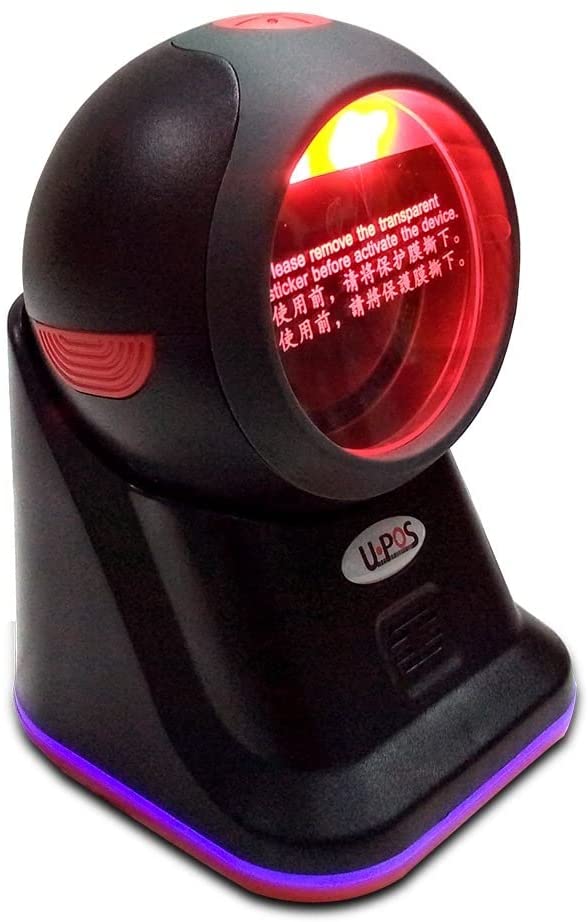

Barcode scanner U.POS UP-868 H 2D

Barcode scanner U.POS UP-868 H 2D

Regular price LE 3,000.00 EGP
Regular price Sale price LE 3,000.00 EGP
Sale Sold out
Barcode scanner U.POS UP-868 H 2D

Product Feature:-

  • New decoding chip, interpretation of various 1D & 2D barcode.
  • Professional technology, can scan WeChat/alipay barcode.
  • Plug and play, simple setup, fast use.
  • Power indicator on the botton.
  • Wire life more durable.

Performance Parameters:-

Ligth Source: Red LED
Supported Symbologies: 1D: Codabar, Code 11, Code 39, Code 93, Code 128/EAN128,EAN.UCC Composite, Interleaved 2 of 5, MSI Code, Planet, Plessey Code, Postnet, RSS, Standard 2 of 5, Telepen, UPC/EAN, etc.
2D: PDF417, QR Code, Matrix 2 of 5, Mrico PDF417, Australian Post, Canada Post, Japan Code, Maxi Cdoe, Codeblock, Aztec, Dutch Post, TLC 39, DataMatrix, etc.
System compatibility: Linux, Android, Windows XP/7/8/10
Scan Range: 10-160mm(EAN 13 13mil, PCS-90%)
Print Contrast: 20% minimum reflective difference
Minimum recognition accuracy: Code 39 4mil
Motion Tolerance: 4meters/second
Scan Mode: Automatic Induction Scanning
Image (Pixels): 1280 pixels(H) x 800 pixels(V)
Man-machine Interaction: Indicator light: Blue light power indicator; Blue light flashing code reading prompt,
Buzzer: start prompt, read code prompt.
Recognition angle range: Turn ±360°, Elevation ±65°, Declination ±65°
Interface: USB(Drive-Free), RS232, USB-COM

Physical Parameters:-

Dimensions: 96mm*108mm*150mm
Weight: 294.4g
Material: ABS+PC
Cable Length: 2M

Electronic Parameters:-

Working Voltage: DC5V±5%
Current: Standby Current 190mA;
               Working Current 240mA


Barcode scanner U.POS UP-868 H 2D -Pdf
