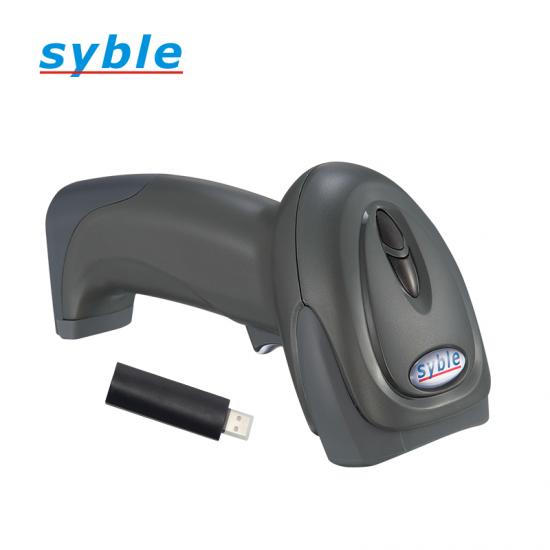

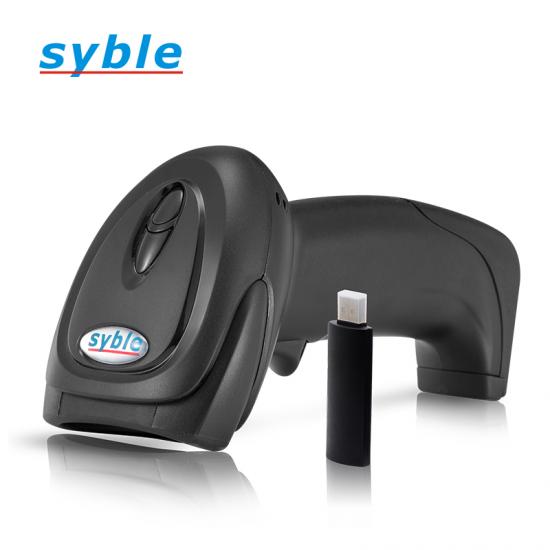

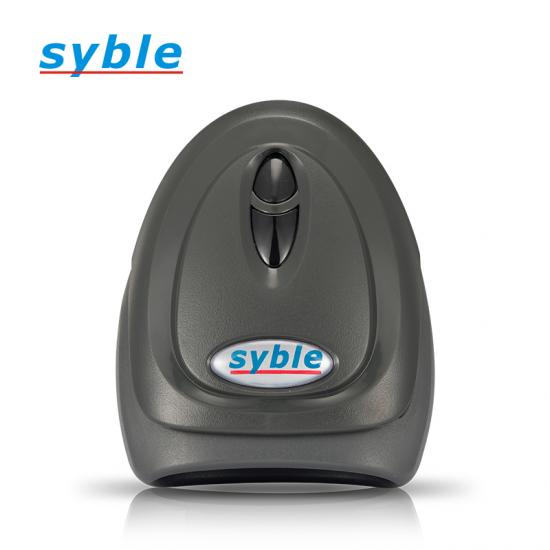

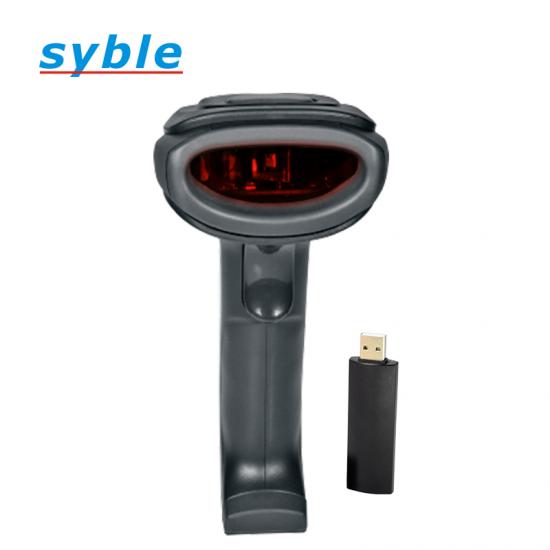

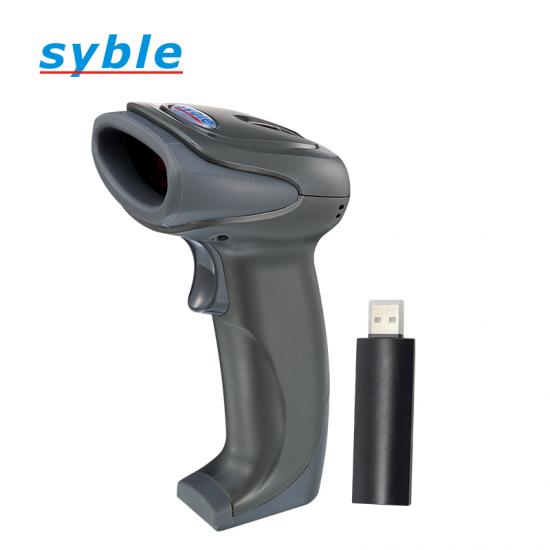

Barcode Scanner Syble XB-5066R

Barcode Scanner Syble XB-5066R

Regular price LE 1,600.00 EGP
Regular price Sale price LE 1,600.00 EGP
Sale Sold out

Barcode Scanner Syble XB-5066R

Product feature:-

- USB wireless receiver, plug and play, easy to set up, can be used quickly
- Empty transmission distance of 50-80 meters
- Automatic storage beyond distance
- Can store about 512,000 characters

Specification:

Model Number: XB-5066R

Performance Parameters:-

Light Sources 650nm laser(Safe visible laser diode)
Supported Symbologies

EAN-8,EAN-13,UPC-A,UPC-E,CODE39,CODE93,CODE128, EAN128, Codebar, Industrial 2 of 5,Interleave 2 of 5,Matrix 2 of 5,MSI,China Post Code and all 1D barcodes ects

Scan Type Single Laser
Scan Method Manually/Contnuous/Automatic inductive scanning(Optional)
Scan Angle Yaw 55°,Rotation 30°,Pitch 65°
Precision 4mil(0.1mm)
Depth of scan field 10-250mm(0.33mm,PCS90%)
Error Rate Less than 1/5 million
Interface USB-HID
Operating Frequency 2.4G
Transmission Distance 50-80M(Open Yard)
Storage Ability 512000 Bytes
Pairing Model One to one

Physical Parameters:-

Dimensions 85mm*62mm*154mm
Weight 220g
Material ABS+PC
Cable Length 1M

Electrical Parameters:-

Voltage DC5V±10%
Current 85mA(Operating); 150uA(Quiescent Current)
Lithium battery 2200mA

Environmental Parameters:-

Operating Temperature -20℃~40℃
Storage Temperature -40℃~70℃
Relative Humidity 0%~85%(Non-condensing)



PRODUCT WARRANTY: 1YEAR
