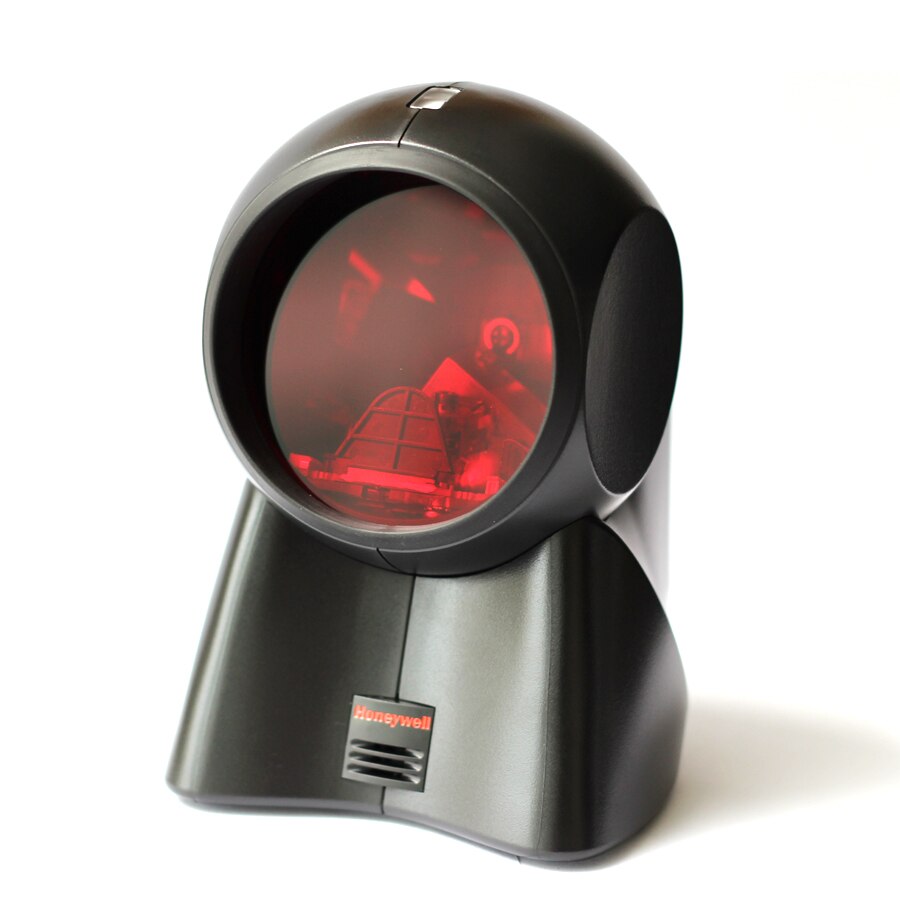

Scanner HoneyWell MS7120

Scanner HoneyWell MS7120

Regular price LE 0.00 EGP
Regular price Sale price LE 0.00 EGP
Sale Sold out

Orbit 7120 Laser Scanner

MECHANICAL:-

Dimensions (L x W x H):105 mm x 102 mm x 150 mm (4.1 in x 4.0 in x 5.9 in)
Weight: 400 g (14.1 oz)

ELECTRICAL:-

Input Voltage: 5 VDC ±0.25 V
Operating Power: 900 mW (180 mA @ 5 V)
Standby Power: 850 mW (170 mA @ 5 V)
Host System Interfaces: USB, RS-232, Keyboard Wedge, IBM 468xx (RS485)

SCAN PERFORMANCE:-

Scan Pattern: Omnidirectional: 5 fields of 4 parallel lines; button-activated single line (7180)
Scan Speed: Omnidirectional: 1120 scan lines per second; single line: 56 scan lines per second (7180)
Print Contrast: 35% minimum reflectance difference
Pitch, Skew: 60°, 60°
Decode Capability: Reads standard 1D and GS1 DataBar symbologies

FEATURES & BENEFITS:-

A 20-line scan omnidirectional pattern provides aggressive scanning as an additional benefit to hand presentation applications.

The Orbit scanner has an engineered “sweet spot” to optimize scan performance and first pass read rate.

An adjustable scan head enables users to tilt the scanner 30° for targeted scanning of larger products.

Retail operations can protect their POS investment with free firmware updates via MetroSet 2 software and a standard PC.

A built-in RF EAS antenna (Orbit 7180 scanner only) increases efficiency by simultaneously deactivating RF EAS tags and decoding barcodes.

PRODUCT WARRANTY: 1YEAR

Scanner HoneyWell MS7120 -Pdf
